Emi Wire Shielding Sleeve With Zipper

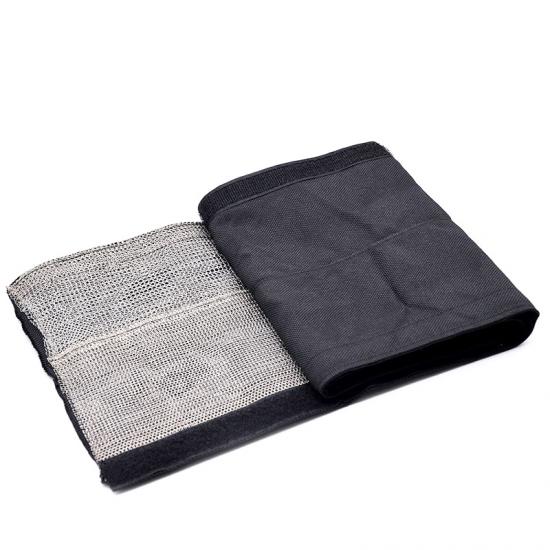

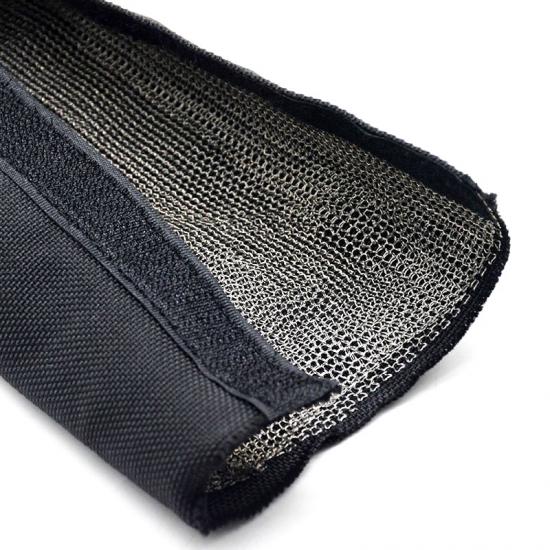

E-FLEX® Velcro EMI Shielding Sleeves is made of tinned copper mesh,flame retardant polyester fabric with nylon hook and loop.
Cable shielding sleeve characteristics of shielding high sensitive electromagnetic interference, noise-reduction, Dust proof and abrasion resistance.

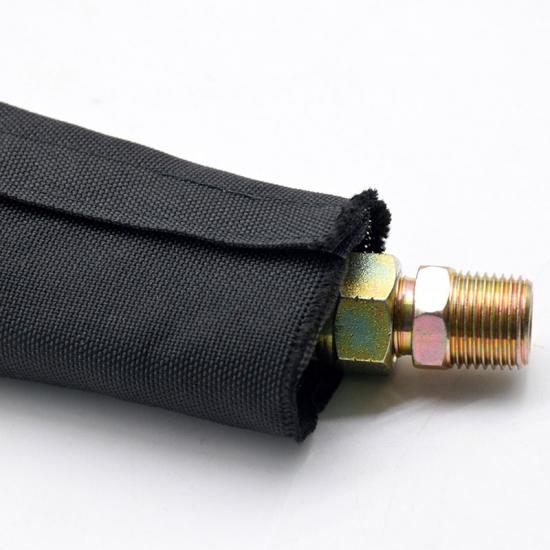

Hook and loop closure design,can an easily be attached even after wiring has been connected,make bundling quick and easy,ensures super strong closure mating。
What's the Special of EMI shielding sleeve？

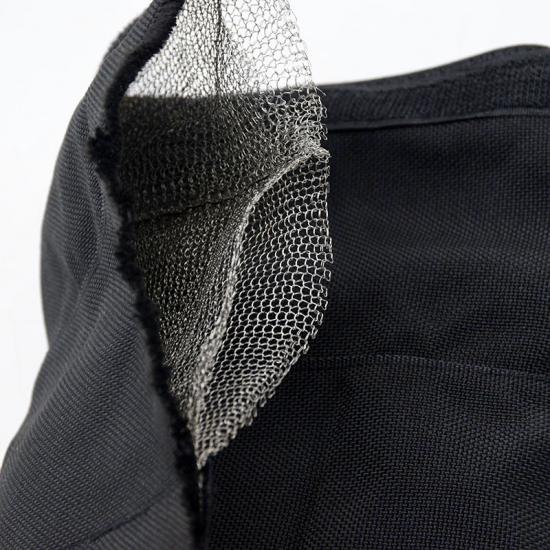

- Integrated EMI Protection：The internal tin-plated copper mesh effectively suppresses electromagnetic interference, ensuring seamless signal integrity within complex electronic architectures.
- Railway-Grade Fire Safety：Engineered to meet rigorous European railway fire protection standards, providing superior flame retardancy along with low smoke emission and non-dripping performance.
- Modular Open-Sleeve Design：The integrated hook-and-loop mechanism facilitates rapid retrofitting, removal, and reuse, allowing for seamless maintenance without disconnecting pre-existing hardware or power supply.
- Hybrid Material Strength：The strategic blend of monofilament and multifilament PET provides an optimized balance between lightweight flexibility and high-tenacity abrasion resistance.
Physical properties
| Sleeve Material | PET Monofilament + Multifilament |
| Hook and Loop Material | Nylon |
| Inner Shielding Net | Tinned Plated Copper Wire |
| Working Temperature | 40℃ to 125℃ |
| Standard color | Black |
| Flammability(Main Cloth) | Conforms to DIN5510-2:2009,section 2 of fire protection of railway vehicles,material and parts combustion,combustion attendant phenomenon, grade, requirement, test methods |
| Flammability Grade | S4,smog grade:SR2,melt drip grade:ST2 |
| Standard Color | Black |
| Rohs Compliant | Yes |
| Cutting Tool | Hot Knife |
Specification
| Part No | Size ID(mm) | Bundle Dia(mm) | Packing Length(m/spool) |
| VEW-PVT-010-BK | 10 | 1~10 | 25M/R |
| VEW-PVT-016-BK | 16 | 10~16 | |
| VEW-PVT-020-BK | 20 | 17~20 | |
| VEW-PVT-030-BK | 30 | 21~30 | |
| VEW-PVT-040-BK | 40 | 31~40 | |
| VEW-PVT-050-BK | 50 | 41~50 | |
| VEW-PVT-060-BK | 60 | 51~60 | |
| Note：Other specifications can be customized. | |||
Application
EMI shielding sleeving is mainly used in special cables, laboratories, machine rooms, electronic equipment, electric power unit and other special facilities have high requirements of antiradiation and anti-electromagnetic interference,
- Railway & Rolling Stock: Ideal for inter-car jumpers and interior cabling where DIN 5510-2 fire safety and signal shielding are mandatory.
- Military & Aerospace: Protection of communication lines and sensitive sensors from signal crosstalk and harsh mechanical wear.
- Medical Equipment: Managing cables in diagnostic imaging and surgical robotics where EMI can interfere with delicate readings.
- Telecommunications: Shielding high-speed data cables in server rooms while allowing for easy maintenance and system upgrades.
- Automotive (EV/AV): Protection of high-voltage wire harnesses and autonomous driving sensors.
