Woven Split Tubular Wiring Harness Wrap

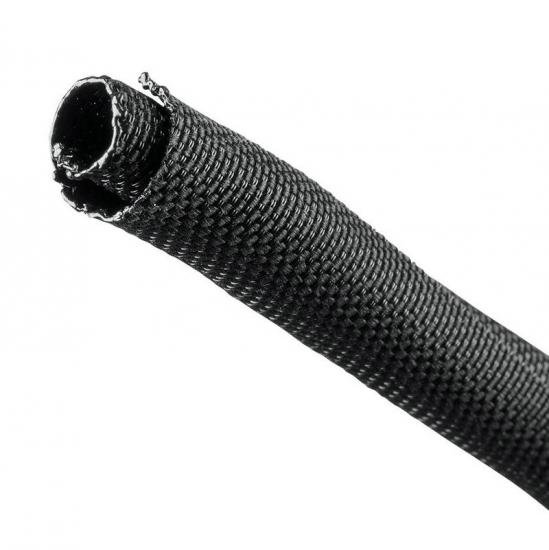

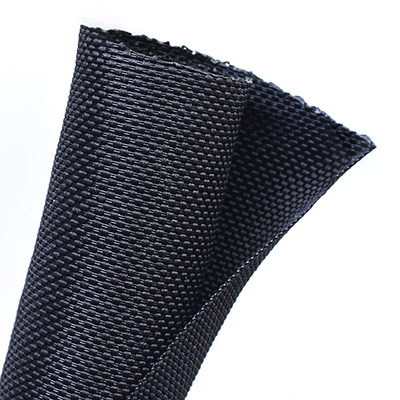

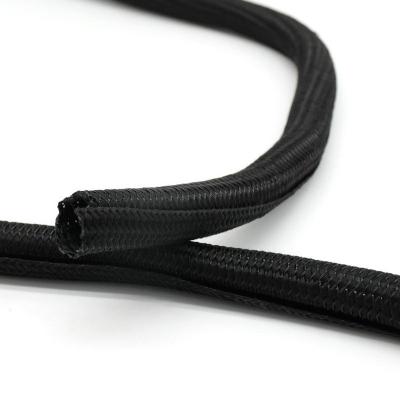

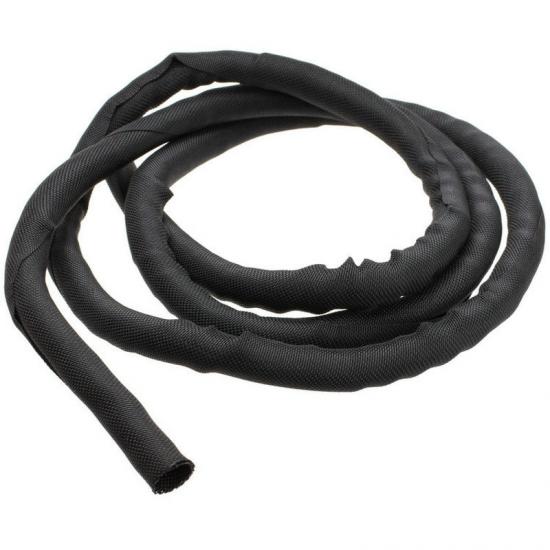

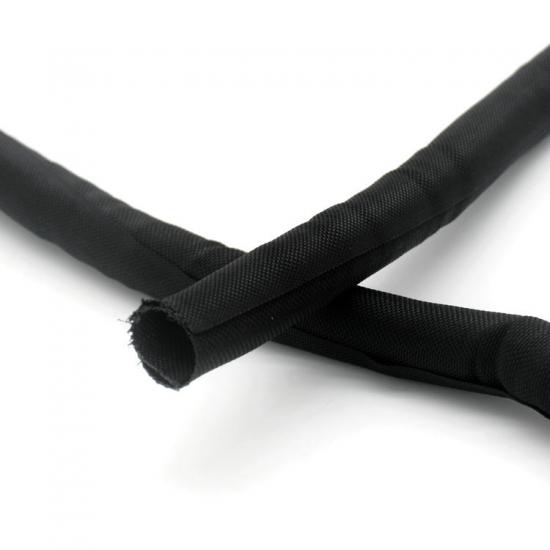

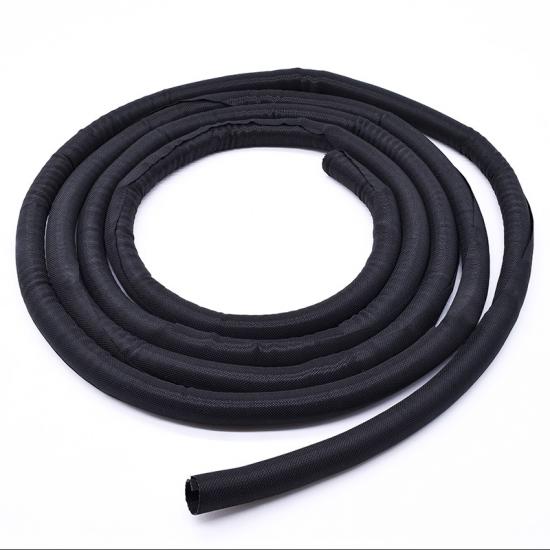

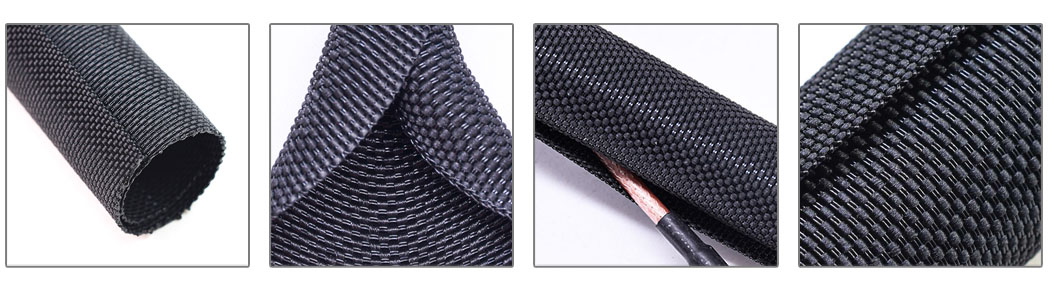

E-FLEX® Woven Split Wirng Harness Wrap made of pet multifilament and monofilament.The special braid construction permits to be superior elastic flexibility with unbeatable coverage over any harness assembly.

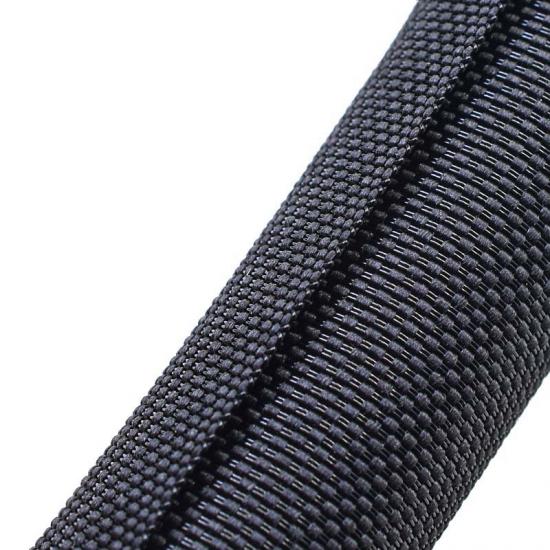

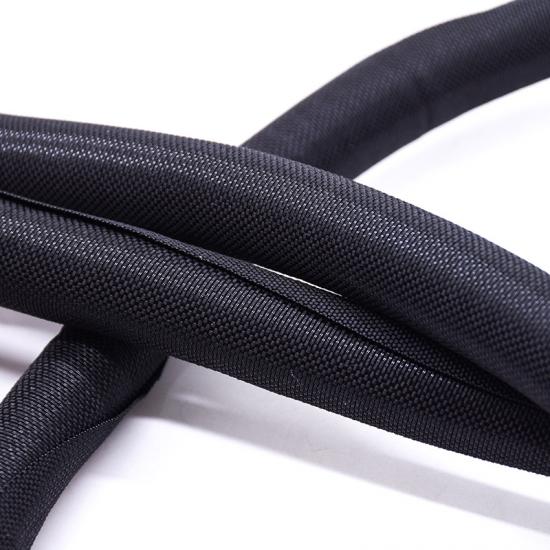

The woven split wirng wrap are extremely light weight,high abrasion resistance,flame retardant,UV resistance,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Woven split wrap popular used in electronics, automotive, railway,marine, industrial wire harnessing and home/office,cable management applications where cost efficiency and durability are critical.
Certifications
Physical Properties

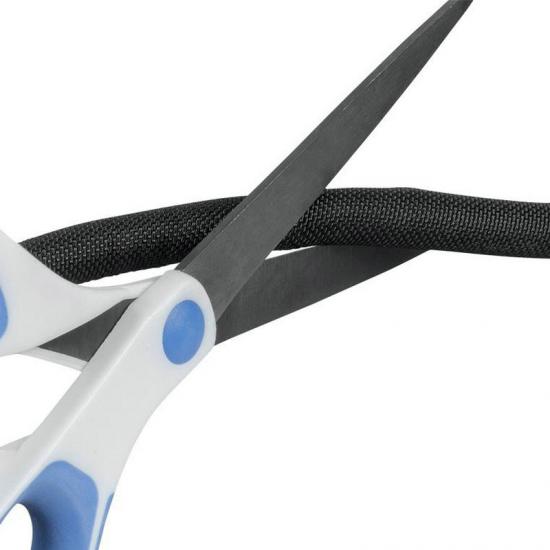

| Physical Properties | Details |
| Material | PET Monofilament and Mulitifilament |
| Working Temperature | -40°C ~ +125°C |
| Melt Point | 240(±10)°C |
| Flammability | FMVSS302,UL94V0,EN45545 |
| Abrasion Resistance | Refer to ISO6722,Meeting Class10(≤4000 cycles) |
| Overlap | ≧35% |
| Aging Resistance | Refer to ISO6722 |
| Standard Color | Black |
| Certification | Rohs, Reach, UL, Halogen Free |
| Liquid Resistance | Refer to GMW14327 |
| Cutting Tool | Hot Knife |
What's Special about Woven Split Wiring Harness Wrap?
Broad Chemical Resistance: Highly resistant to most industrial oils, common fuels, and chemical solvents
Advanced Flame Retardancy: Meets EN45545 (European Railway Standard) and UL94 V0 for maximum fire safety.
Class 10 Abrasion Protection: Proven durability with ≤4000 cycles per ISO 6722 standards.
UV & Weather Resistance: Engineered to withstand outdoor exposure without degradation or loss of flexibility.

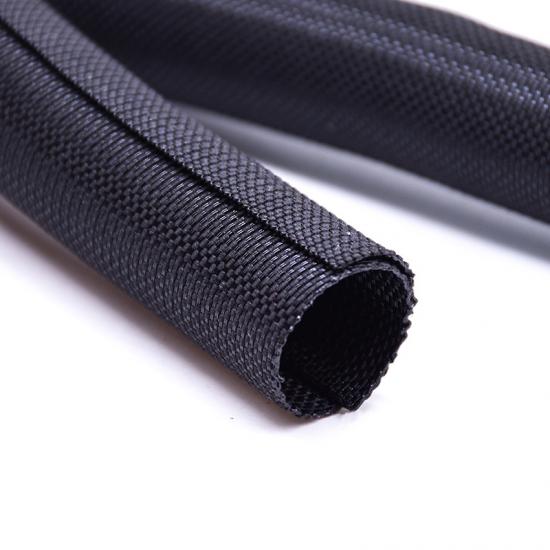

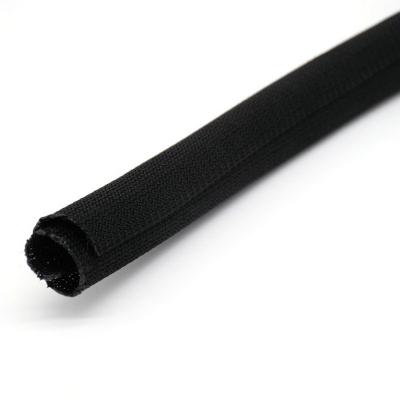

Quick-Wrap Installation: The split-wrap design allows for easy retrofitting over existing assemblies without disconnection.
Specification
| Part No |
Size
(mm)
|
Spread
Width
(mm)
|
Bundle Dia Range(mm) |
Packing
Length
(m/spool)
|
|
| Min | Max | ||||
| STW-PET-003-BK | Φ3 | 25±2 | 2 | 4 | 100 |
| STW-PET-005-BK | Φ5 | 29±2 | 4 | 6 | 100 |
| STW-PET-008-BK | Φ8 | 46±2 | 6 | 10 | 100 |
| STW-PET-010-BK | Φ10 | 55±2 | 8 | 11 | 100 |
| STW-PET-013-BK | Φ13 | 65±2 | 12 | 15 | 100 |
| STW-PET-016-BK | Φ16 | 77±2 | 15 | 18 | 100 |
| STW-PET-019-BK | Φ19 | 104±5 | 18 | 20 | 50 |
| STW-PET-025-BK | Φ25 | 125±5 | 23 | 26 | 25 |
| STW-PET-029-BK | Φ29 | 145±5 | 27 | 31 | 25 |
| STW-PET-032-BK | Φ32 | 164±5 | 30 | 34 | 25 |
| STW-PET-038-BK | Φ38 | 183±5 | 37 | 40 | 25 |
| STW-PET-050-BK | Φ50 | 243±8 | 48 | 52 | 25 |
Application

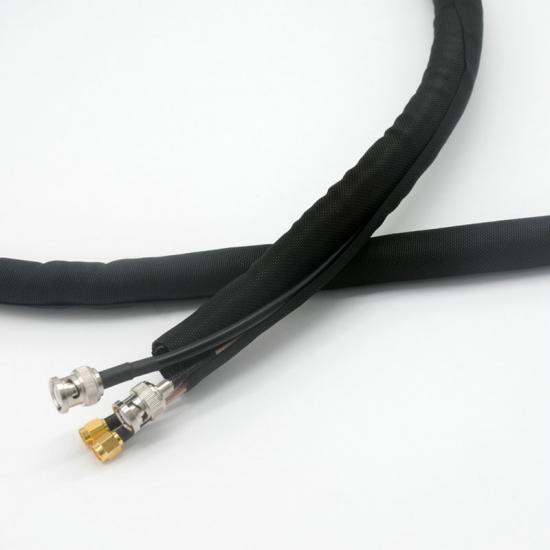

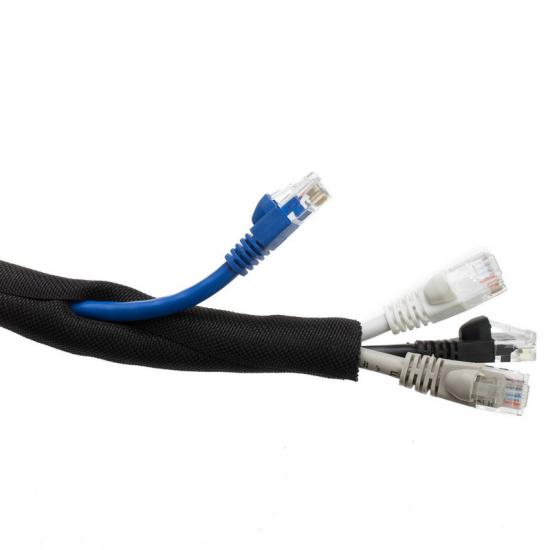

Woven split wirng harness wrap widely use for industrial cable,electronic communication,power systems,A/V cable,hdmi cable,wire harness,pneumatic hoses, hydraulic lines and highly polished or threaded machine parts, due to its open weave design with high abrasion resistance and high flame retardant.
