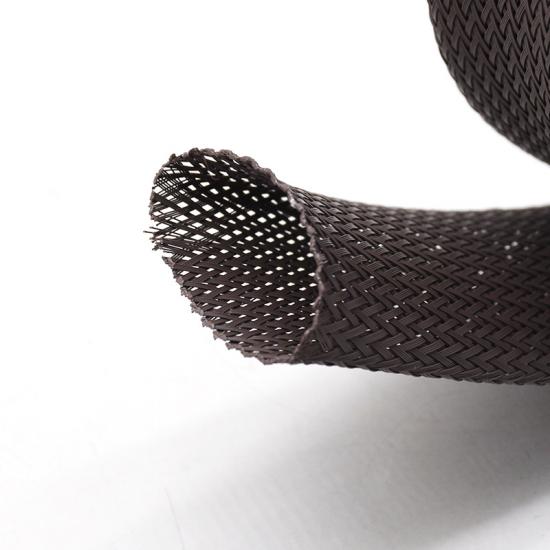

Rodent Resistant Expandable Braided Wire Protection Sleeving

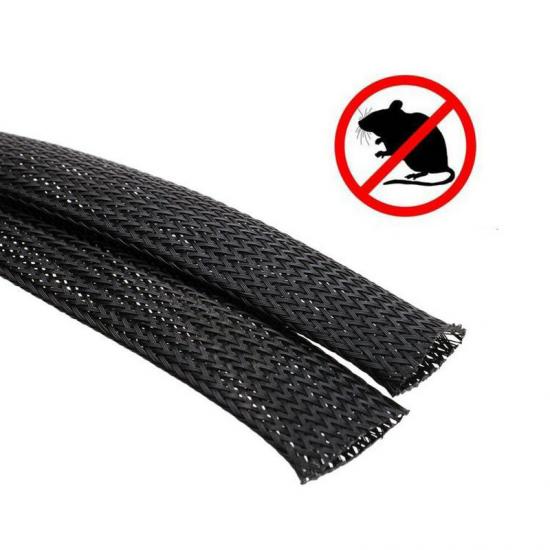

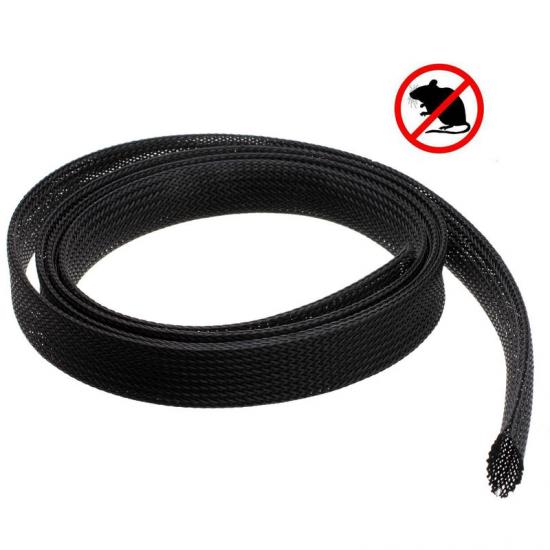

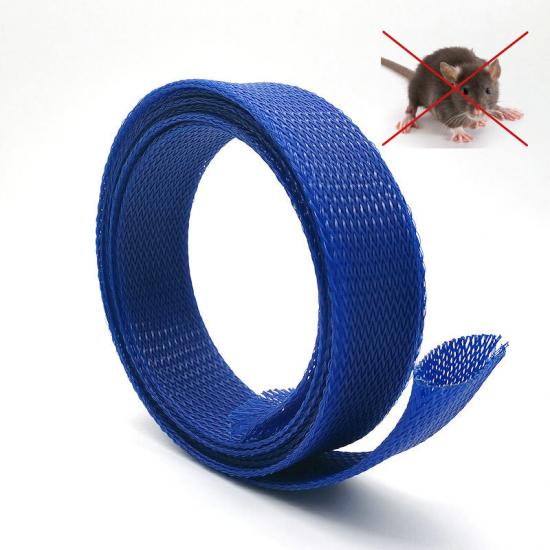

E-FLEX® Rodent Resistant Cable Sleeving is engineered with advanced technical filaments infused with a specialized, non-toxic deterrent that effectively discourages rodents and pests from chewing on cables. Unlike conventional protective sleeves, this high-performance solution targets the natural gnawing behavior of rodents, helping ensure that critical wires, hoses, and cables remain protected even in high-infestation environments. The sleeving also maintains reliable flame retardancy and thermal stability up to 125 °C.

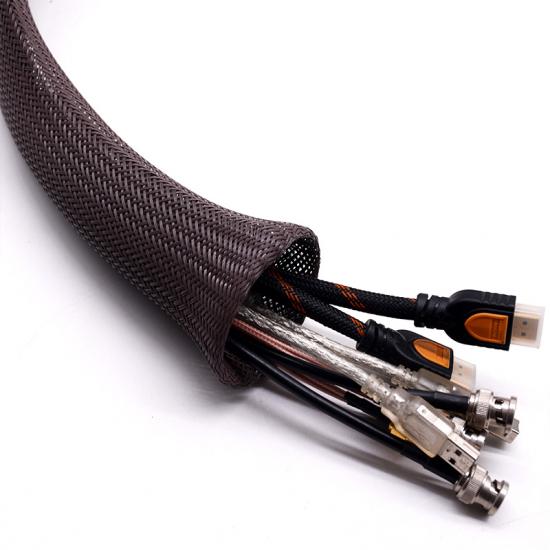

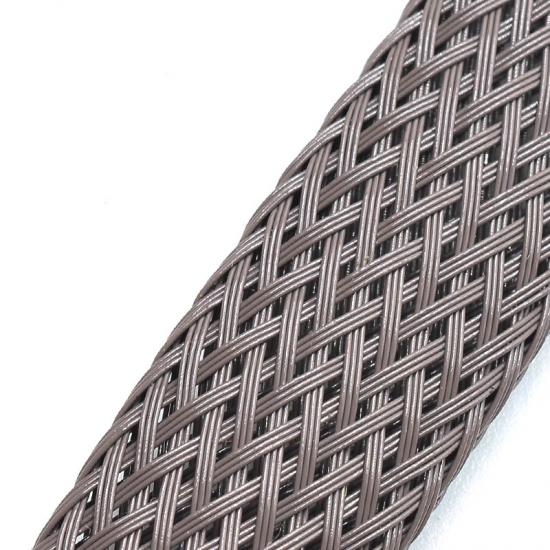

The flexible rodent resistant braided sleeving construction forms a durable protective conduit for wires and hoses while creating an unpleasant chewing experience for rodents. Laboratory testing has shown that rodents actively avoid the rodent resistant sleeving, even when food is placed inside, making it an effective solution for keeping cables and hoses safe from unwanted “midnight snacks.”
Certifications & Compliance
Physical Properties
| Physical Properties | Details |
|
Material |
Polyethylene Terephthalate(PET) |
| Monofilament Thickness | 0.01"(0.25mm) |
| Working Temperature | -40°C~+125°C |
| Melt Point | 240(±10)°C |
| Flammability | UL94 V2 |
| Abrasion Resistance | High |

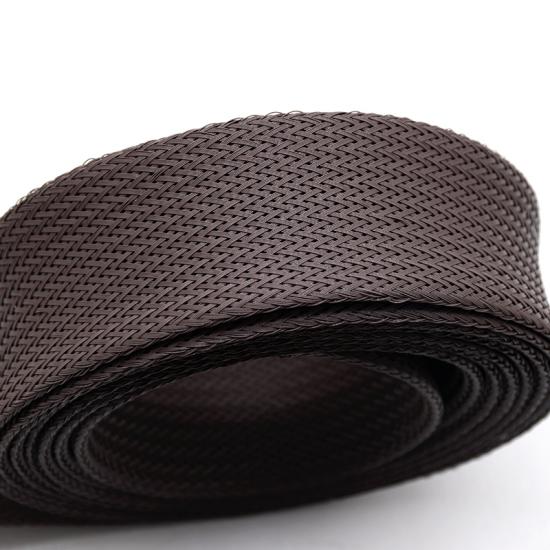

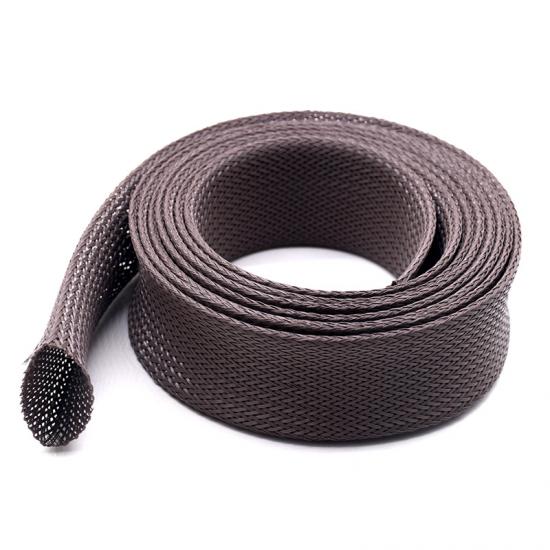

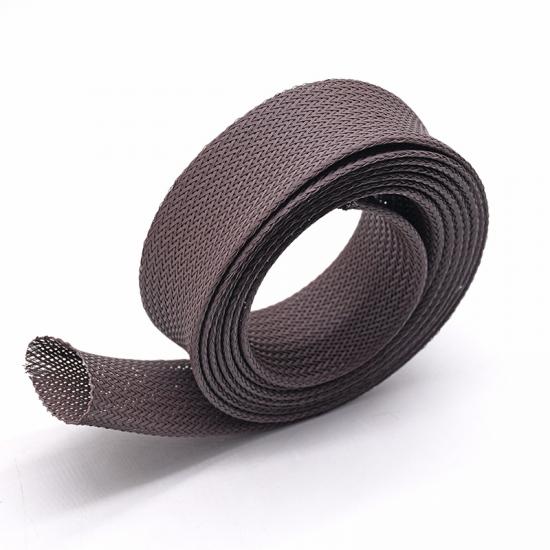

| Standard Color | Dark Brown |
| Rohs Compliant | Yes |
| Reach Compliant | Yes |
| Halogen Free | Yes |
| Cutting Tool | Hot Knife |
Performance Comparison
| Feature | Standard PET Sleeve | Rodent-Resistant Sleeve |
| Rodent Protection | ✘ | ✔ (Additive based) |
| Flexibility | ✔✔✔✔ | ✔✔✔✔ |
| Flammability | VW-1,FMVSS302 | VW-1 |
| AbrasionResistance |
Medium |
High |
| Chemical Resistance | ✔✔✔ | ✔✔✔✔ |
| Common Applications | General wiring | Outdoor/automotive/underground |
What's Special about Rodent Proof Cable Sleeving?
- Advanced Bio-Deterrent Technology: Infused with a proprietary, non-toxic bittering agent that targets rodent gnawing behavior without environmental compromise.
- Mission-Critical Reliability: Proven effective in high-incentive environments (stuffed with food) to prevent costly downtime in telecom and power infrastructure.
- Eco-Safe & Certified: Fully RoHS, REACH, and Halogen-Free compliant; safe for installers and harmless to the surrounding ecosystem.
- Enhanced Industrial Durability: High-density 0.25mm PET construction provides superior abrasion resistance and chemical stability against oils and solvents.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) | Wall Thickness (mm) | Packing Length (m/spool) | ||
| Inch | mm | Max.(O) | Min.(I) | |||
| BRS-PET-003-BR-RR | 1/8" | 3 | 1 | 6 | 0.65±0.05 | 1000 |
| BRS-PET-006-BR-RR | 1/4" | 6 | 3 | 9 | 0.65±0.05 | 500 |
| BRS-PET-008-BR-RR | 5/16" | 8 | 5 | 12 | 0.65±0.05 | 350 |
| BRS-PET-010-BR-RR | 3/8" | 10 | 7 | 17 | 0.65±0.05 | 350 |
| BRS-PET-012-BR-RR | 1/2" | 12 | 8 | 20 | 0.65±0.05 | 350 |
| BRS-PET-016-BR-RR | 5/8" | 16 | 10 | 27 | 0.65±0.05 | 250 |
| BRS-PET-018-BR-RR | 11/16" | 18 | 12 | 29 | 0.65±0.05 | 250 |
| BRS-PET-020-BR-RR | 3/4" | 20 | 14 | 32 | 0.65±0.05 | 200 |
| BRS-PET-025-BR-RR | 1" | 25 | 18 | 35 | 0.65±0.05 | 200 |
| BRS-PET-032-BR-RR | 1-1/4" | 32 | 20 | 50 | 0.65±0.05 | 150 |
| BRS-PET-038-BR-RR | 1-1/2" | 38 | 30 | 60 | 0.65±0.05 | 100 |
| BRS-PET-045-BR-RR | 1-3/4" | 45 | 35 | 75 | 0.65±0.05 | 100 |
| BRS-PET-050-BR-RR | 2" | 50 | 40 | 80 | 0.65±0.05 | 100 |
| BRS-PET-064-BR-RR | 2-1/2" | 64 | 45 | 105 | 0.65±0.05 | 50 |
| BRS-PET-076-BR-RR | 3" | 76 | 64 | 120 | 0.65±0.05 | 50 |
Recommended Applications
- Automotive engine compartments and underbody wiring
- Telecom and fiber optic installations in outdoor/underground ducts
- Agricultural and warehouse equipment protection
- Marine and RV wiring
- Industrial machine cables in rodent-prone zones
- City infrastructure or smart grid installations exposed to rodents
Request a Quote or Free Sample
Looking to protect your wiring from rodent damage?
We support OEM, utility, and industrial cable projects worldwide.
- Free sample available (MOQ applies)
- OEM printing, size, and color available
- Fast quotation & technical support
FAQ
................................................................................................................................................................................................................................................
1. Do you provide free samples?
• Special cases may be approved by management
• Black standard samples: 1–2 meters free, freight collected
• Colored / ODM samples: extra cost depending on supplier
................................................................................................................................................................................................................................................
2. What is your minimum order quantity (MOQ)?
• Black standard products: MOQ = one roll (first 3 orders allowed)
• Standard colors: usually 2000 meters (depends on yarn inventory)
................................................................................................................................................................................................................................................
3.What is your typical lead time?
Regular lead time: around 10 days
Urgent orders: about 5 days
................................................................................................................................................................................................................................................
4. Do your products have UL certification?
Yes. Our PET braided sleeving, self-closing braided wrap, textile wrap, self-closing conduit, and full-elastic wrap are UL-certified.
................................................................................................................................................................................................................................................
5. Do you have ISO and other quality system certifications?
Yes. We are certified with:
• ISO 9001
• ISO 14001
• ISO 13485 (medical)
• IATF 16949 (automotive)
................................................................................................................................................................................................................................................
6. Can you customize packaging?
Yes, based on required quantity and product type.
