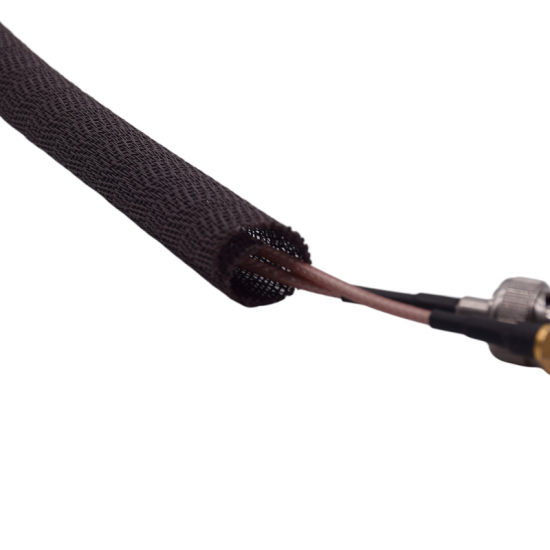

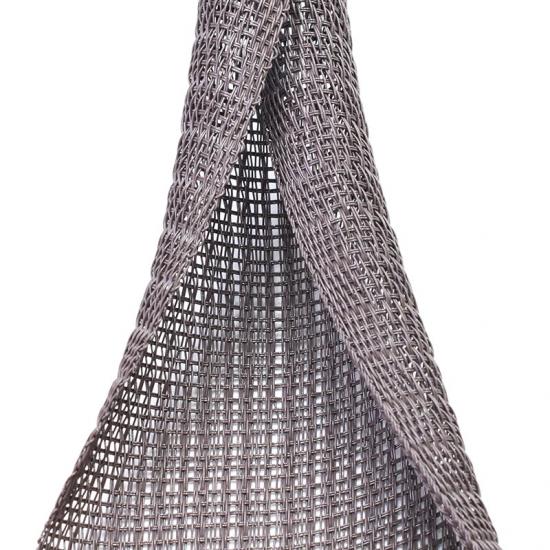

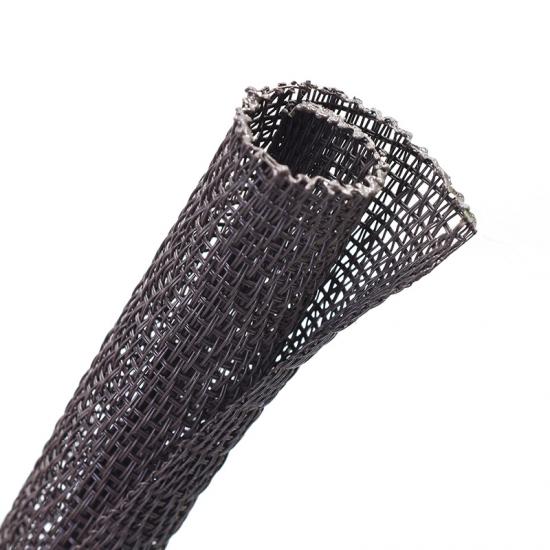

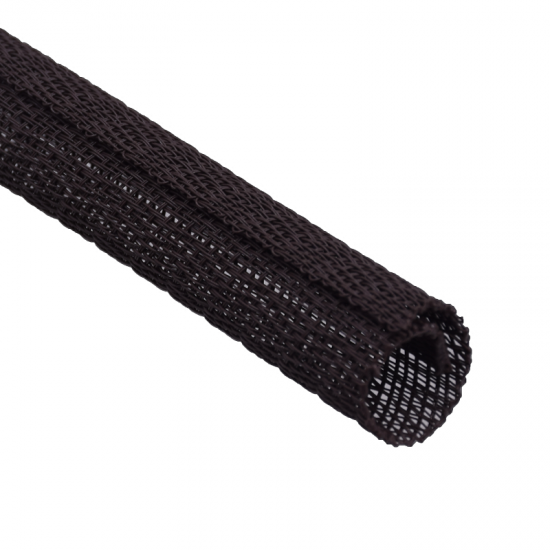

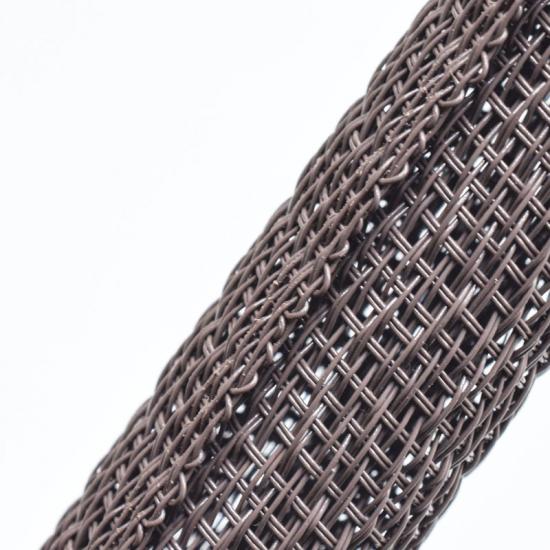

Rodent Resistant Self-closing Braided Cable Sleeving
E-FLEX® Rodent Resistant Self-Closing Braided Cable Sleeving is a high-performance sleeve specially designed to resist gnawing by rodents, while providing wire harness protection and easy installation. It is mainly made of high-toughness and wear-resistant composite material with an open self-wrapping structure, featuring rodent-proofing, heat dissipation, flame retardancy, wear resistance and convenient operation. It is widely used in electronics, automotive, outdoor and underground wiring applications.it is the latest solution for fighting the harmful effects of unprotected wires which are exposed to rodents.
Our self-closing braided cable sleeving makes a very repulsive meal for any critter. During testing, rodents completely avoided the Rodent Resistant Self-closing Braided Sleeving even when stuffed with food. Make your wires and hoses an unappealing midnight snack with Rodent Resistant sleeving.
Physical Properties
Physical Properties
Value
Material
PET Monofilament
Working Temperature
-40°C ~ +150°C
Melt Point
240+(±10)°C
Flammability
VW-1
Overlap
≥35%
Standard Color
Drak Brown
ROHS Compliant
Yes
Reach Compliant
Yes
Halogen Free
Yes
Cutting Tool
Hot Knife
Comparison with Related Products
Product Type
Rodent Protection
Reopenable
Ideal For
General PET Braided Sleeving
No
No
Basic bundling, low-risk zones
Expandable Rodent-Resistant Sleeve
Yes
No
Permanent high-risk protection
Self-Closing Rodent-Resistant Sleeve (this product)
Yes
Yes
Maintenance-intensive environments
Heat Shrink Tubing
No
No
Sealed and semi-permanent usage

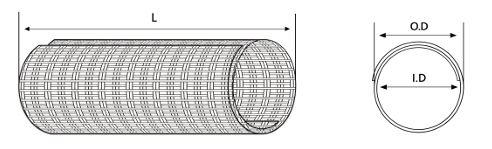

Specification
| Part No. | ID (mm) | Spread Width (mm) | Bundle Dia Range (mm) | Bundle Dia Range (mm) | Packing Length (m/spool) |
| Min | Max | ||||
| SBW-PET-005-BR-RR | 5 | 32±2 | 4 | 6 | 100 |
| SBW-PET-008-BR-RR | 8 | 45±2 | 6 | 9 | 100 |
| SBW-PET-010-BR-RR | 10 | 55±2 | 8 | 11 | 100 |
| SBW-PET-013-BR-RR | 13 | 65±2 | 12 | 14 | 100 |
| SBW-PET-016-BR-RR | 16 | 80±5 | 15 | 17 | 50 |
| SBW-PET-019-BR-RR | 19 | 90±5 | 17 | 20 | 50 |
| SBW-PET-025-BR-RR | 25 | 107±5 | 23 | 26 | 25 |
| SBW-PET-029-BR-RR | 29 | 125±10 | 27 | 31 | 25 |
| SBW-PET-032-BR-RR | 32 | 140±10 | 29 | 34 | 25 |
| SBW-PET-038-BR-RR | 38 | 165±10 | 37 | 40 | 25 |
| SBW-PET-050-BR-RR | 50 | 215±10 | 48 | 52 | 25 |
| CuttingTolerance | |
| Cutting Length | Tolerance |
| 0–500mm | ±5mm |
| 500–1000mm | ±8mm |
| >1000mm | ±10mm |
Application
Automotive Wiring
Protects engine bay harnesses, underbody cables, and electric vehicle lines from rodent damage and mechanical wear.
Telecom & Fiber Installations
Ideal for outdoor base stations, fiber optic bundles, and utility boxes that are vulnerable to wildlife interference.
Renewable Energy Systems
Used in solar power inverters, wind turbine control cables, and battery systems exposed to rural or outdoor settings.
Home & Commercial Buildings
Offers peace of mind in basements, crawlspaces, and ceilings where rodents commonly damage power or data lines.
Industrial Automation
Used to manage cables in robotic arms, production lines, and machine control systems requiring frequent servicing.
