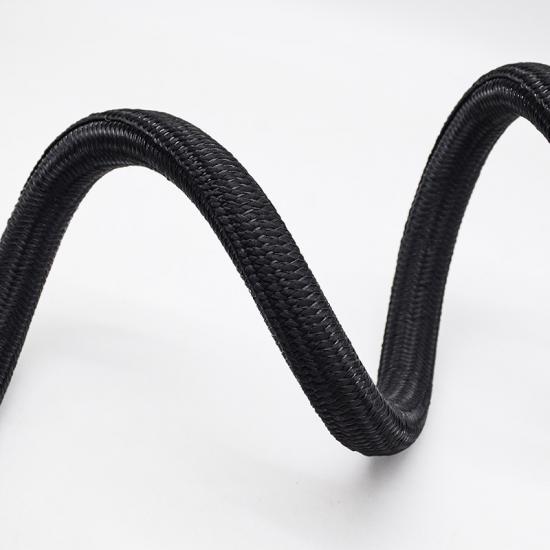

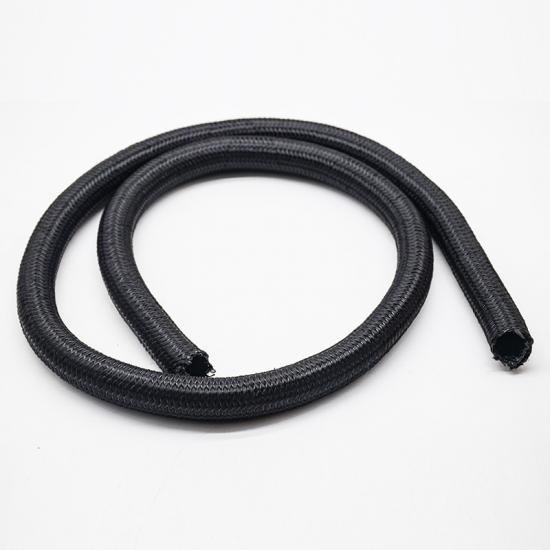

Split Quiet Noise Reduction Wrap Around Braided Sleeving

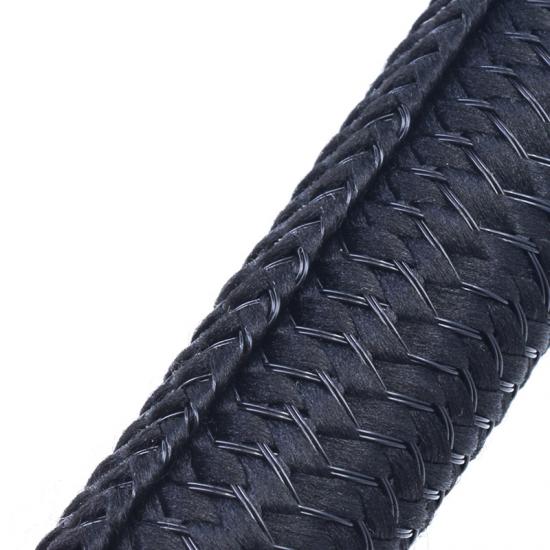

The E-FLEX® Noise Reduction Braided Sleeving combines mechanical durability with high-performance acoustic dampening. The unique combination of monofilament for structural memory and multifilament for soft surface contact allows this sleeve to shield wires and hoses from sharp edges while effectively absorbing vibrations. Its side-entry design is optimized for efficiency, allowing technicians to install the sleeve in hard-to-reach areas without disconnecting systems. With its high heat aging resistance and self-extinguishing properties, it ensures long-term protection and silence in demanding environments.
Physical Properties
| Physical Properties | Details |
| Material | PET Monofilament + PET Multifilament |
| Working Temperature | -40°C ~ +150°C |
| Melt Point | 240(±10)°C |
| Low Temperature Resistance | No Crack and Degradation after Test at -40℃ for 4h |
| Heat Aging | No Crack and Degradation after Test at 150℃ for 504h |
| Flammability | VW - 1, FMVSS302 |
| Ageing Resistance | Refer to ISO6722 |
| Overlap | 50% |
| Standard Color | Black |
| Cutting Tool | Hot Knife |
What's Special about Noise Reduction Braided Sleeving?
- Superior Noise Reduction: Specifically designed to suppress vibration-induced noise in automotive and industrial cabins.

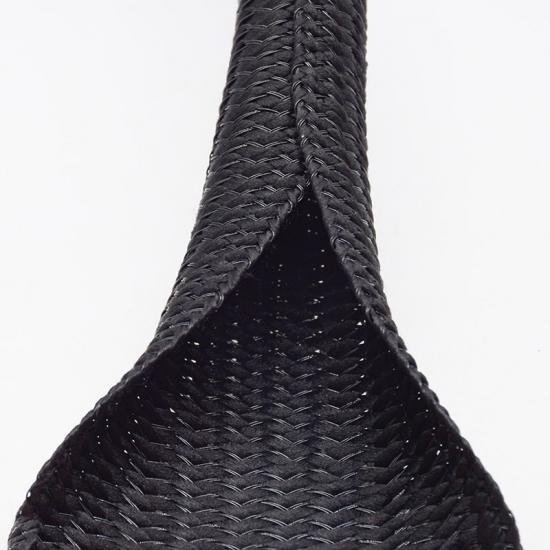

- 50% Protective Overlap: High overlap ratio ensures the sleeve stays securely closed even on tight bends, preventing wire exposure.50%
- Extreme Temperature Resilience: Rated for continuous use from -40°C to +150°C with significant heat aging resistance.

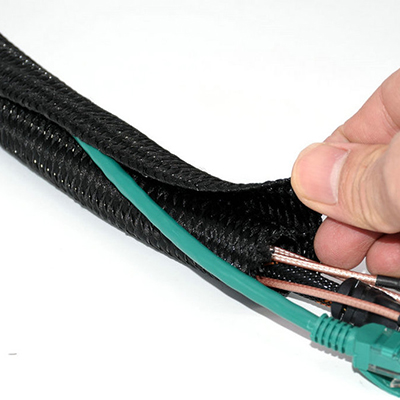

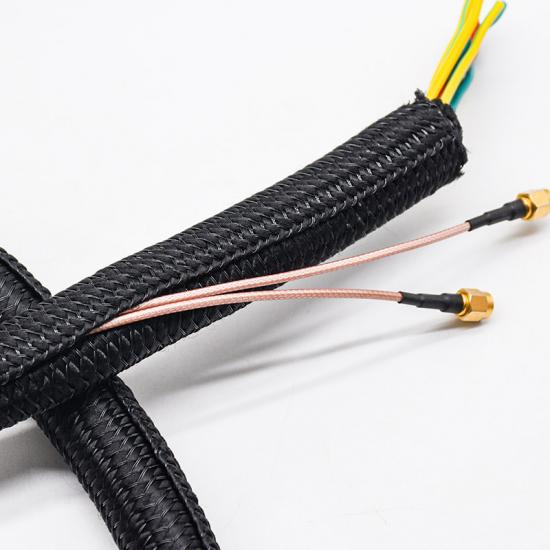

- Easy Access Side-Entry: Simplifies the addition or removal of wires in restricted spaces like dashboards and door panels.
- Enhanced Safety: Compliant with VW-1 and FMVSS 302 flame retardancy standards for critical fire protection.
Specification
| Part No | ID (mm) | Thickness (mm) | Bundle Dia Range(mm) | Packing Length (m/spool) |
| SBW-PET-005-BK-NR | 5±2 | 0.8±0.2 | 4-6 | 100 |
| SBW-PET-009-BK-NR | 10±2 | 0.8±0.2 | 8-11 | 100 |
| SBW-PET-013-BK-NR | 13±2 | 1.0±0.3 | 12-15 | 50 |
| SBW-PET-016-BK-NR | 16±2 | 1.0±0.3 | 15-18 | 25 |
| SBW-PET-019-BK-NR | 19±2 | 1.0±0.3 | 18-22 | 25 |
| SBW-PET-025-BK-NR | 25±2 | 1.0±0.3 | 23-26 | 25 |
| SBW-PET-032-BK-NR | 32±2 | 1.0±0.3 | 29-34 | 25 |
| SBW-PET-038-BK-NR | 38±2 | 1.0±0.3 | 35-40 | 25 |
Quiet Braided Sleeving Application
- Automotive Interior (NVH): Ideal for wire harnesses behind dashboards, headliners, and door modules to ensure a quiet cabin.
- Fluid Power Systems: Protecting hoses from friction and reducing vibration noise in hydraulic or pneumatic lines.
- Industrial Control Panels: Organizing complex wiring in cabinets where space is limited and protection is paramount.
- Appliance Wiring: Noise suppression for internal harnesses in high-end consumer electronics and appliances.
