Custom Braided Polyester Sleeving with Dispenser Box

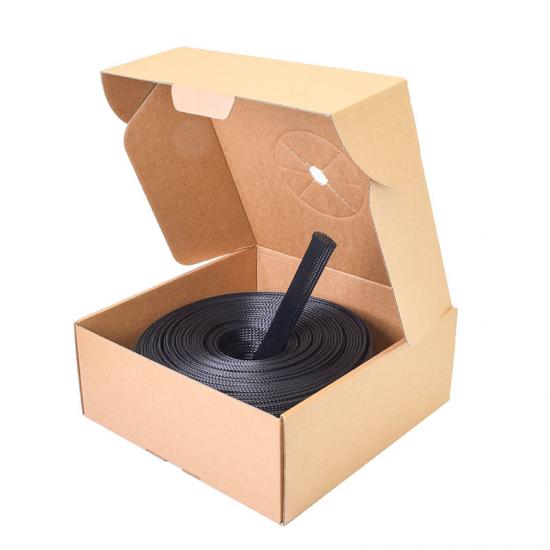

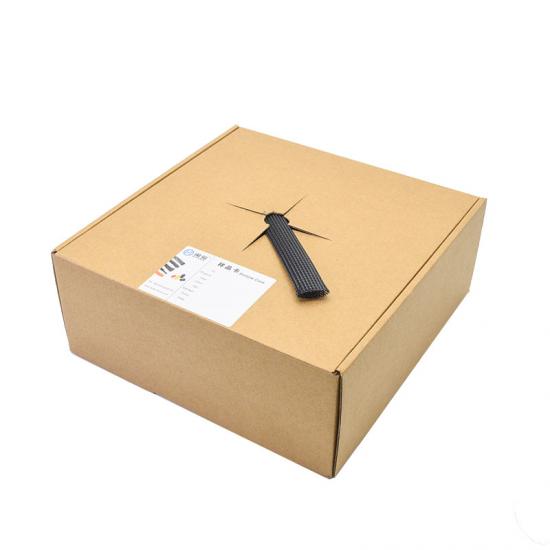

Our polyester cable sleeve with dispenser box allows operators or technicians to quickly pull out the required length without the need to unwind or organize the roll.
It is ideal for production lines and assembly workshops, helping to save preparation and installation time.

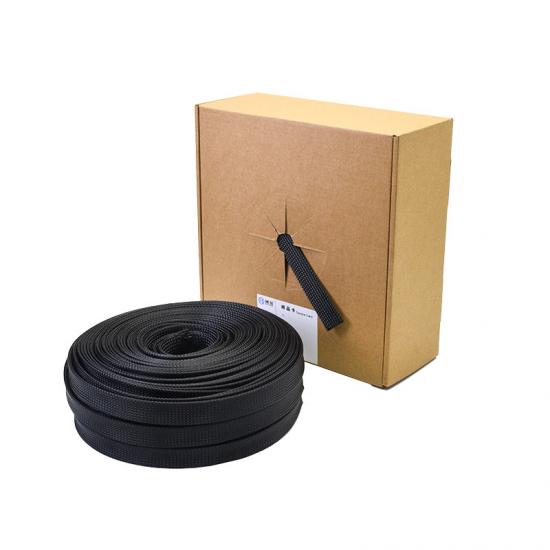

While long rolls of sleeving tend to get tangled, the dispenser box keeps the sleeving neatly organized, reducing waste.
Users can cut directly from the box using scissors or a heat cutter for clean, safe edges.
During OEM or batch harness assembly, the dispenser box makes it easier for multiple users to work simultaneously without confusion.
Compared with bulk rolls, this boxed sleeving looks more professional and provides greater value and convenience for customers.
Certifications & Compliance
Physical Properties
| Physical Properties | Details |
|
Material |
PET Monofilamentent |
| Working Temperature | -40℃~+150℃ |
| Melt Point | 240+(-10)°C |
| Low temperature resistance | No signs of embrittlement or degradation after test at -40°C for 4h |
| Heat aging resistance | No signs of embrittlement or degradation after test at 158°C for 168h |
| Flammability | VW-1,FMVSS302 |
| Abrasion Resistance | Medium |
| Standard Color | Black |
| Certification | Rohs, Reach |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |

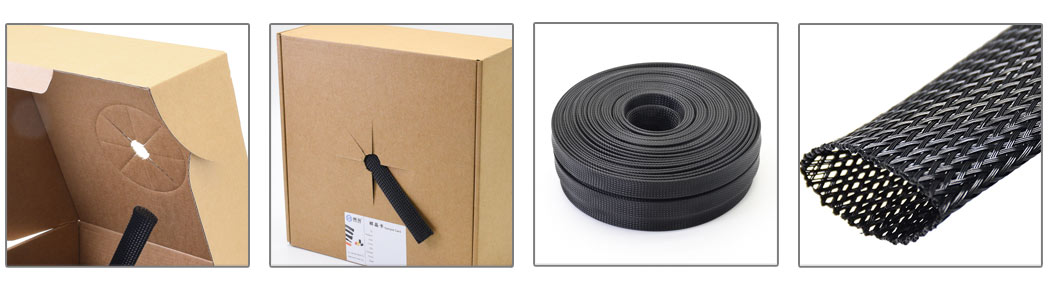

What's Special about Custom Braided Polyester Sleeving with Dispenser Box?
1. Ready-to-Use Dispenser Box：Pre-packed in a dispenser box, pull out the exact length quickly — no untangling or unwinding.
2. Neat & Safe：Keeps sleeving organized, reduces waste, and allows clean cutting with scissors or a heat cutter.
3. Efficient & Professional ：Supports OEM or batch assembly, multiple users can work simultaneously. Looks more professional than bulk rolls.

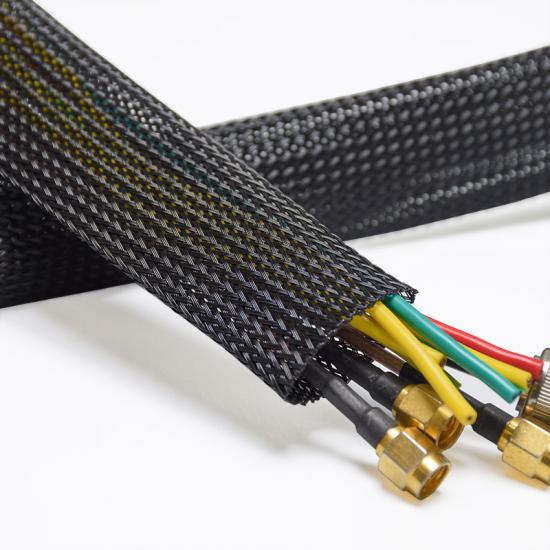

4. Durable PET Material：Made of premium PET, abrasion- and heat-resistant, expandable to fit various cable diameters.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Wall
Thickness
(mm)
|
Packing
Length(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | |||
| BRS-PET-003-BX | 1/8” | 3 | 1 | 6 | 0.65±0.05 | 1000 |
| BRS-PET-006-BX | 1/4” | 6 | 3 | 9 | 0.65±0.05 | 500 |
| BRS-PET-008-BX | 5/ 16” | 8 | 5 | 12 | 0.65±0.05 | 350 |
| BRS-PET-010-BX | 3/8” | 10 | 7 | 17 | 0.65±0.05 | 350 |
| BRS-PET-012-BX | 1/2” | 12 | 8 | 20 | 0.65±0.05 | 300 |
| BRS-PET-016-BX | 5/8” | 16 | 10 | 27 | 0.65±0.05 | 250 |
| BRS-PET-020-BX | 3/4” | 20 | 14 | 30 | 0.65±0.05 | 200 |
| BRS-PET-025-BX | 1” | 25 | 18 | 33 | 0.65±0.05 | 200 |
| BRS-PET-032-BX | 1-1/4” | 32 | 20 | 50 | 0.65±0.05 | 150 |
| BRS-PET-038-BX | 1-1/2” | 38 | 30 | 60 | 0.65±0.05 | 100 |
| BRS-PET-045-BX | 1-3/4” | 45 | 35 | 75 | 0.65±0.05 | 100 |
| BRS-PET-050-BX | 2” | 50 | 40 | 80 | 0.65±0.05 | 100 |
| BRS-PET-064-BX | 2-1/2” | 64 | 45 | 105 | 0.65±0.05 | 50 |
| BRS-PET-076-BX | 3” | 76 | 64 | 120 | 0.65±0.05 | 50 |
| BRS-PET-100-BX | 4” | 100 | 80 | 150 | 0.65±0.05 | 50 |
Typical Applications
Automotive Wiring Harnesses
Protects and organizes engine, dashboard, and vehicle wiring for safe and efficient installation.
Industrial Cable Bundles
Ideal for machinery, automation equipment, and control panels, ensuring neat and durable cable management.
Electronics & Electrical Systems
Suitable for servers, control cabinets, and office wiring, providing abrasion and heat protection.
Marine & OEM Projects
Perfect for marine wiring, OEM assembly, or custom-length projects requiring professional cable protection.
