Everything You Need To Protect Your Cable

Anti-Abrasion Sleeving

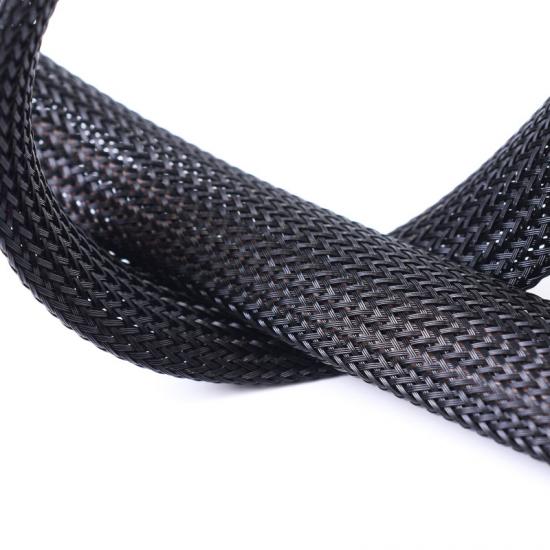

PET High Anti-abrasion Expandable Braided Sleeving

Anti-abrasion sleeve has an abrasion resistance 300% more than standard polyester expandable sleeving. It provides exceptional mechanical protection with highly flexible and excellent abrasion resistance, it is easy to slip on a bundle of cables.
  • Item no.:

    MJ-PEBS-HA
  • Material:

    PET monofilament
  • Working Temperature:

    -40℃ to 150℃
  • Melt Point:

    240±10℃
  • Flammability:

    UL94 V2
  • Standard Color:

    Black
  • Certification:

    RoHs,Halogen free
  • Cutting Tool:

    Hot Knife
  • Size:

    3mm~64mm
  • Product Details

PET High Anti-abrasion Expandablr Braided Sleeving


Abrasion-resistant sleeve braided of 0.25mm,0.28mm or 0.30mm thick special high abrasion resistant pet monofilament.


It has an abrasion resistance 300% more than standard polyester expandable sleeving. It provides exceptional mechanical protection with highly flexible and excellent abrasion resistance, it is easy to slip on a bundle of cables.


Anti-abrasion sleeve


Feactures and benefits


1.Made of pet monofilament

2.Flame retardant

3.Extremely lightweight and flexible

4.UV resistant

5.300% higher abrasion resistant than standard sleeve

6.Economical & easy to install

7.Resists gasoline, chemicals & cleaning Solvents

8.Expands Up to 150% of Initial Diameter


Physical properties


Material PET monofilament
Working temperature -40℃ to 150℃
Melt point 240±10
Flammability
UL94 V2
Standard color Black
Certification RoHS,Halogen free
Cutting tool Hot knife


Data sheet


Part No Size(flat width) Expansion Range

Standard

Color

Packing

Length

inch mm Min(I) Max(O)
MJ-PEBS-HA003 1/8" 3 1 6 Black 1000m/spool
MJ-PEBS-HA006 1/4" 6 3 9 Black
500m/spool
MJ-PEBS-HA008
5/16" 8 5 12 Black
350m/spool
MJ-PEBS-HA010
3/8" 10 7 17 Black
350m/spool
MJ-PEBS-HA012
1/2" 12 8 20 Black
300m/spool
MJ-PEBS-HA016
5/8" 16 10 27 Black
250m/spool
MJ-PEBS-HA019
3/4" 19 14 30 Black
200m/spool
MJ-PEBS-HA025
1" 25 18 33 Black
200m/spool
MJ-PEBS-HA032
1-1/4" 32 20 50 Black
150m/spool
MJ-PEBS-HA038
1-1/2" 38 30 60 Black
100m/spool
MJ-PEBS-HA045
1-3/4" 45 35 75 Black
100m/spool
MJ-PEBS-HA050
2" 50 40 80 Black
100m/spool
MJ-PEBS-HA064
2-1/2" 64 45 105 Black
100m/spool
MJ-PEBS-HA076
3" 76 64 120 Black
100m/spool


Application


PET anti-abrasion sleeve widely used for rubber hose, railway, underground, wire bundles, it can be used to protect lines on forklifts, welding machines, and hydraulic lines on heavy equipments also.


Abrasion-resistant Sleeve
