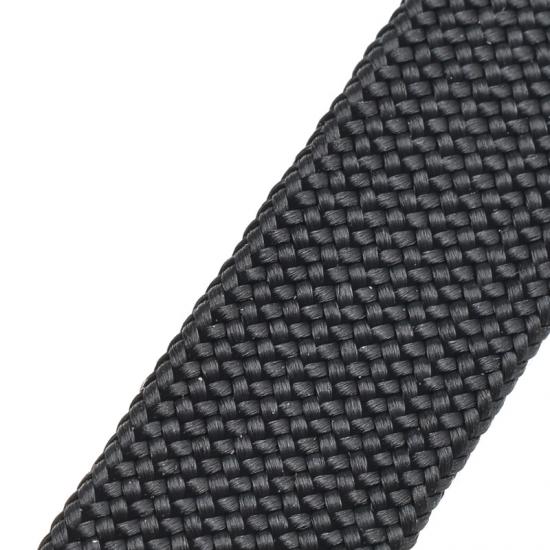

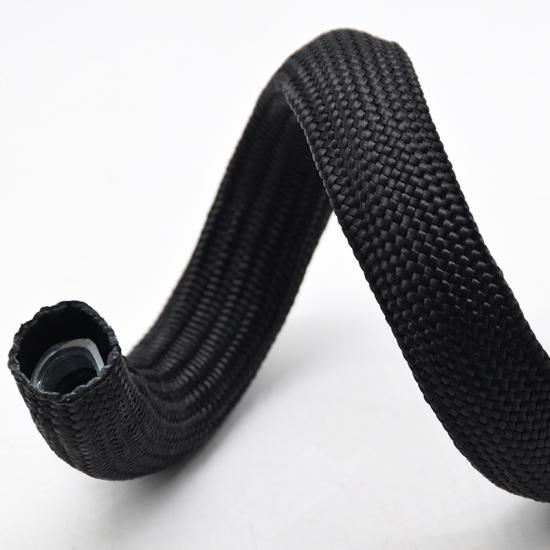

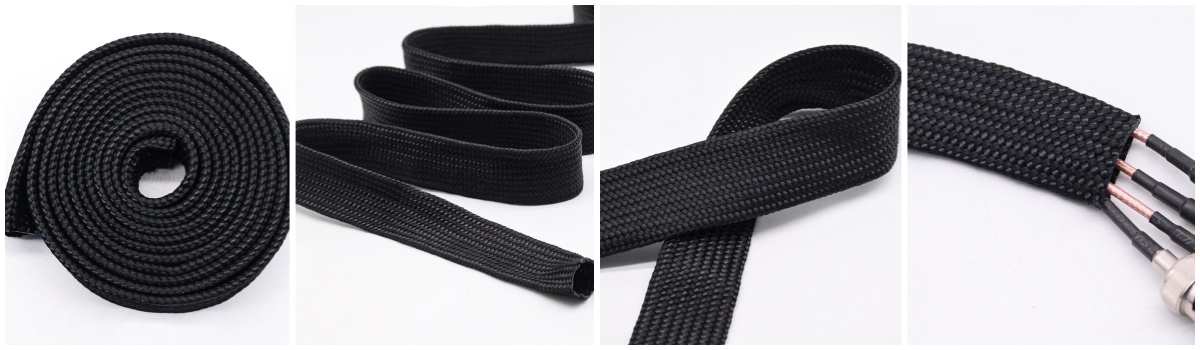

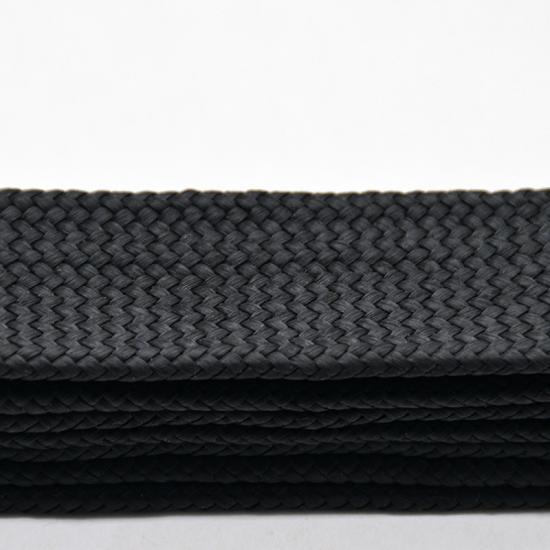

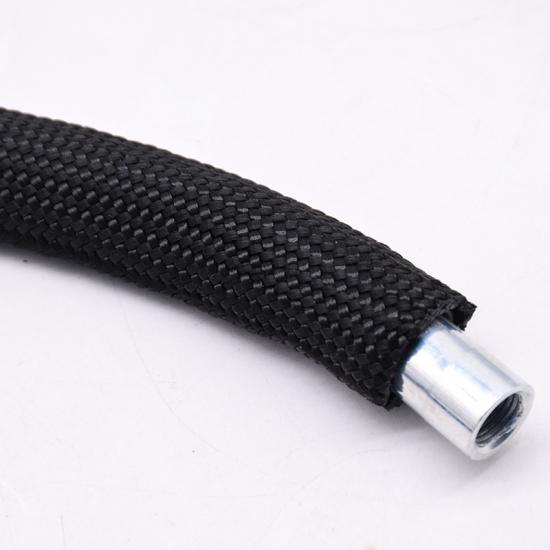

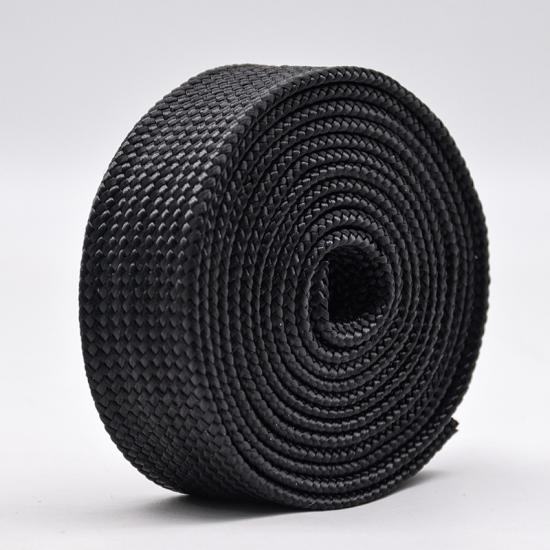

Soft Nylon Multifilament Expandable Braided Sleeving
Crafted from high-density nylon multifilament yarns, E-FLEX® Nylon Multifilament Braided Sleeve provides a unique combination of fabric-like softness and industrial-grade durability. This premium sleeving offers exceptional resistance to abrasion, vibration, and chemicals, making it the industry standard for noise reduction and cable management in high-end automotive, military, and aerospace applications.
Certifications & Compliance
Physical Properties
Physical Properties
Details
Material
Nylon Multifilament
Working Temperature
−40°C to 125°C
Melt Point
220(±10)°C
Standard Color
Black
Abrasion Resistance
Extremely High
RoHS Compliant
Yes
Reach Compliant
Yes
Halogen Free
Yes
Cutting Tool
Hot Knife
What's Special about Nylon Multifilament Sleeve?
- Superior Softness & Flexibility: Woven from high-tenacity multifilament yarns, it offers a soft, cloth-like texture that easily conforms to tight bends and irregular shapes.
- Acoustic Noise & Vibration Dampening: Specifically designed to eliminate rattles and mechanical noise (Anti-Rattle), making it the premier choice for automotive interior and cabin harnesses.
- Full-Coverage Protection: The dense weave provides 100% surface coverage, shielding internal components from dust, debris, and extreme abrasion.
- Exceptional Chemical Resilience: Highly resistant to common automotive fluids, fuels, solvents, and environmental UV degradation.
- Tear & Cut Resistance: Offers an industrial-grade barrier that prevents punctures and mechanical damage in high-vibration environments.
- Quick Installation: Lightweight and pliable, it slides easily over long cable runs and bulky connectors.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-PAMF-003-BK | 1/8” | 3 | 2 | 4 | 350 |
| BRS-PAMF-006-BK | 1/4” | 6 | 4 | 7 | 350 |
| BRS-PAMF-008-BK | 5/ 16” | 8 | 5 | 9 | 350 |
| BRS-PAMF-010-BK | 3/8” | 10 | 6 | 11 | 350 |
| BRS-PAMF-012-BK | 1/2” | 12 | 8 | 13 | 300 |
| BRS-PAMF-016-BK | 5/8” | 16 | 10 | 17 | 250 |
| BRS-PAMF-019-BK | 3/4” | 19 | 12 | 20 | 200 |
| BRS-PAMF-023-BK | 8/9” | 23 | 15 | 24 | 200 |
| BRS-PAMF-032-BK | 1-1/4” | 32 | 20 | 33 | 150 |
| BRS-PAMF-038-BK | 1-1/2” | 38 | 24 | 39 | 100 |
| BRS-PAMF-050-BK | 2” | 50 | 32 | 51 | 100 |
| BRS-PAMF-063-BK | 2-1/2” | 63 | 40 | 64 | 100 |
Application
Nylon multifilament sleeving widely use in automotive,military and marine wire harness application,keep cables and hoses from abrasion,cuts,UV and chemical damage.
- Automotive & marine wire harness systems
- Military and aerospace cabling environments
- Machinery and robotics where movement and vibration are frequent
- Indoor or semi‑enclosed electronics requiring aesthetic cable bundling
- Cable and hose protection in marine, power, and renewable energy equipment
