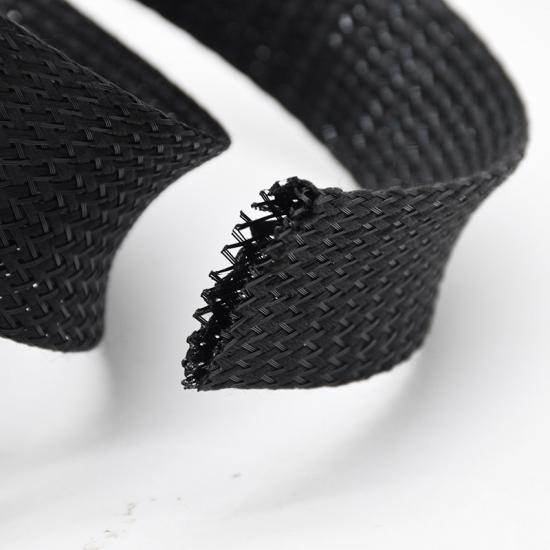

Polyester Noise Reduction Braided Cable Sleeving

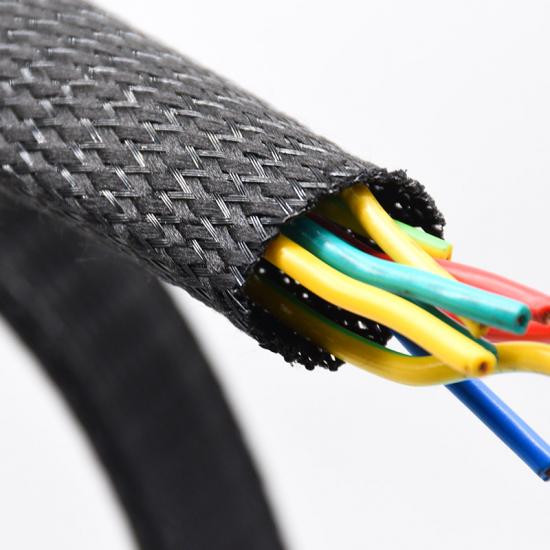

Noise resistant braided wrap is woven by Polyester monofilament and Polyester multifilament yarn,which use to protect wires, cables and hoses from sharp elements and friction that can severely impact their functionality.
The special structure of the wrap offers excellent noise reduction properties and the side entry design makes it easy to add or remove wire harnesses or cables especially in difficult or hard to reach areas such as door panels or dashboards.
Flexo noise reduction sleeving ideal for body wiring harnesses, instrument panel and lighting wiring, cable & hose assemblies, and other limited access applications where noise reduction is desirable.
What's special about expandable braided sleeving?
1.Made of sturdy polyester
2.Superior noise reduction
3.Highly flexible
4.Easy to apply over irregular shapes due
5.High surface coverage
6.Excellent abrasion resistance
7.Provides Full Coverage, Professional Look
8.Resists common chemicals & solvents
9.Cuts Easily With Hot Knife
Certifications
Specification
| Part No | Size | Thickness | Expanded Range |
Standard Color |
Packing | ||
| Inch | mm |
Min(I) |
Max(O) |
(m/spool) | |||
| MJ-NRBS003 | 1/8" | 3mm |
0.025 inch/ 0.6mm |
1/8" | 3/16" |
Black |
1000m |
| MJ-NRBS006 | 1/4" | 6mm | 1/4" | 3/8" | 500m | ||
| MJ-NRBS010 | 3/8" | 10mm | 3/8" | 1/2" | 350m | ||
| MJ-NRBS012 | 1/2" | 12mm | 1/2" | 3/4" | 300m | ||
| MJ-NRBS016 | 5/8" | 16mm | 5/8" | 1" | 250m | ||
| MJ-NRBS020 | 3/4" | 20mm | 3/4" | 1-1/4" | 200m | ||
| MJ-NRBS025 | 1" | 25mm | 1" | 1-5/8" | 200m | ||
Application

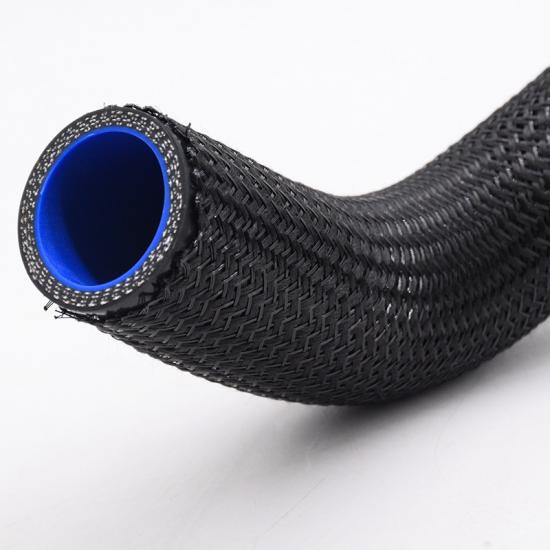

Noise reduction braided cable sleeving used to protect wire harnesses, cable assemblies, tubing and hoses in the automotive, railway, machinery industry etc,where vibration noise must be reduced.
