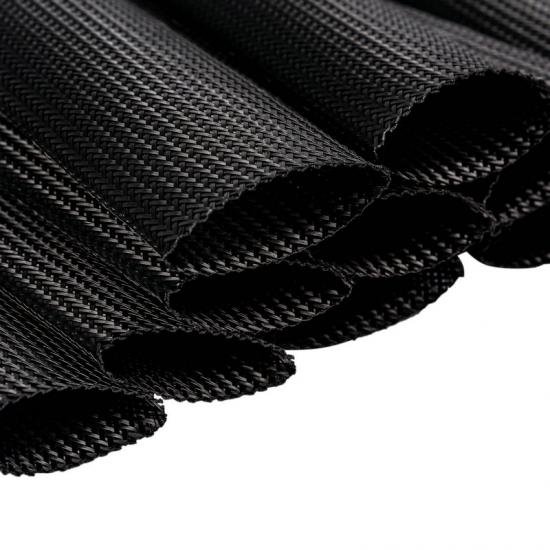

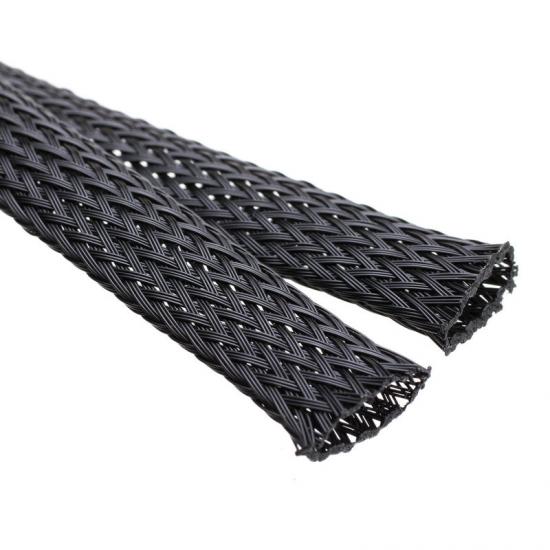

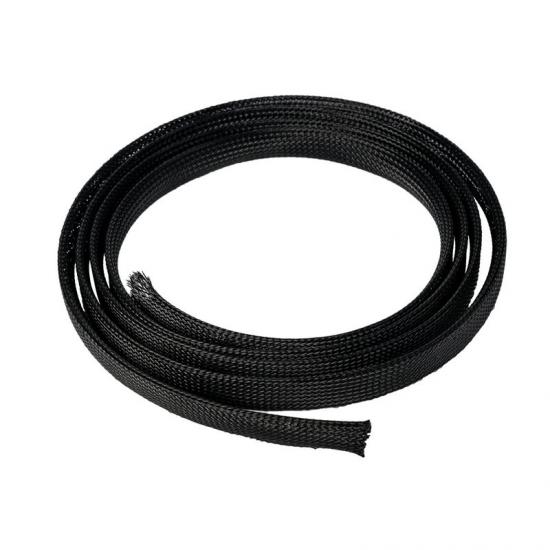

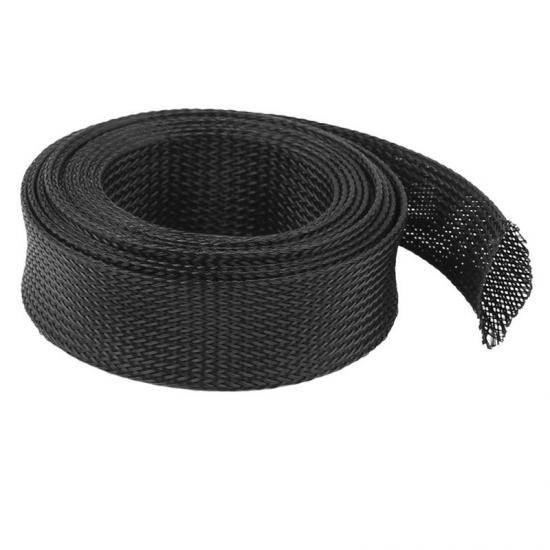

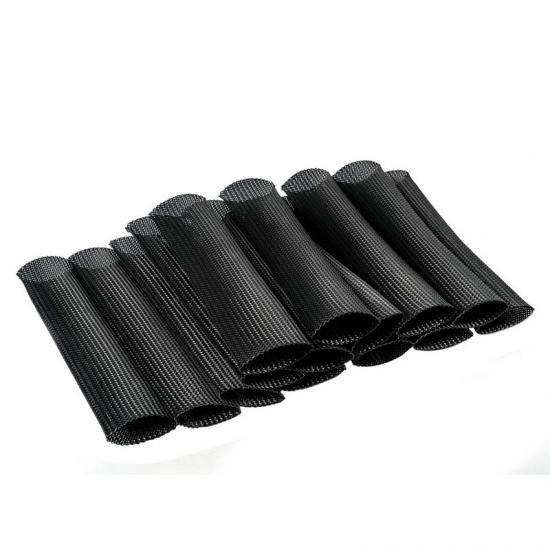

High Temperature PPS Expandable Braided Wire Sleeving
E-FLEX® PPS Expandable Sleeve is engineered from premium Polyphenylene Sulfide (PPS) monofilaments, our expandable sleeving is designed for mission-critical cable assemblies in the most demanding environments. Featuring exceptional thermal stability from -70°C to +200°C and an industry-leading UL94 V-0 flame rating, E-FLEX® PPS solutions offer uncompromising protection against aggressive chemicals, solvents, and fuels.
PPS braided sleeving ideal for aerospace, military, and high-performance automotive applications, this lightweight, non-corrosive sleeving ensures long-term structural integrity where standard polymers fail. Its inherent moisture resistance and low outgassing properties make it the premier choice for precision equipment and harsh industrial settings.
Certifications
Physical Properties
Physical Properties
Details
Material
PPS(Polyphenylene Sulfide)
Monofilament Thickness
0.08”(0.20mm)
Working Temperature
−70°C to +200°C
Melt Point
280(±10)°C
Heat aging resistance
No signs of embrittlement or degradation after test at 200°C for 504h
Flammability
VW-1, UL94 V0
Abrasion Resistance
Medium
Standard Color
Natural color(beige)/Black
Certification
Rohs, Reach
Halogen Free
Yes
UV Resistant
Yes
Cutting Tool
Hot Knife
What's Special about Expandable PPS Sleeve?
Elite Thermal Protection: Sustains performance at constant 200°C, withstanding heat aging up to 220°C without embrittlement.
Superior Flame Retardancy: Meets UL94 V-0 standards, ensuring self-extinguishing performance in critical fire-safety zones.
Extreme Chemical Inertia: Unaffected by common gasoline, engine fluids, and cleaning solvents; ideal for fuel line and exhaust routing.
Precision Engineering: High-expansion ratio (1:1.5) provides a snug fit over complex connectors while remaining ultra-flexible and lightweight.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-PPS-003-BK | 1/8” | 3 | 1 | 6 | 1000 |
| BRS-PPS-006-BK | 1/4” | 6 | 3 | 9 | 500 |
| BRS-PPS-008-BK | 5/ 16” | 8 | 5 | 12 | 350 |
| BRS-PPS-010-BK | 3/8” | 10 | 7 | 17 | 350 |
| BRS-PPS-012-BK | 1/2” | 12 | 8 | 20 | 300 |
| BRS-PPS-016-BK | 5/8” | 16 | 10 | 27 | 250 |
| BRS-PPS-020-BK | 3/4” | 20 | 14 | 30 | 200 |
| BRS-PPS-025-BK | 1” | 25 | 18 | 33 | 200 |
| BRS-PPS-032-BK | 1-1/4” | 32 | 20 | 50 | 150 |
| BRS-PPS-038-BK | 1-1/2” | 38 | 30 | 60 | 100 |
| BRS-PPS-045-BK | 1-3/4” | 45 | 35 | 75 | 100 |
| BRS-PPS-050-BK | 2” | 50 | 40 | 80 | 100 |
| BRS-PPS-064-BK | 2-1/2” | 64 | 45 | 105 | 50 |
| BRS-PPS-076-BK | 3” | 76 | 64 | 120 | 50 |
Application
PPS braided cable sleeve use for race car,aerospace, telecom and military cable management,and any other application with frequent exposure to harmful factors.
Perfect for applications including:
-

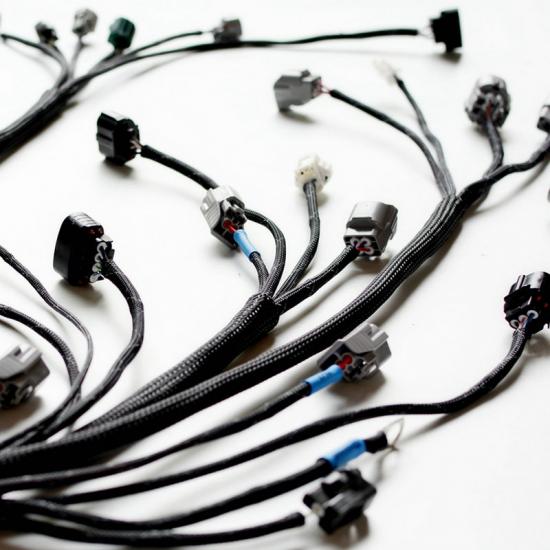

Aerospace and military harnesses
-
Automotive engine bays, exhaust routing, and fuel line protection
-
Rail vehicle electrical and control systems
-
Industrial robotics, heavy machinery, and energy installations
-
Marine or HVAC systems where chemical and moisture exposure occurs
