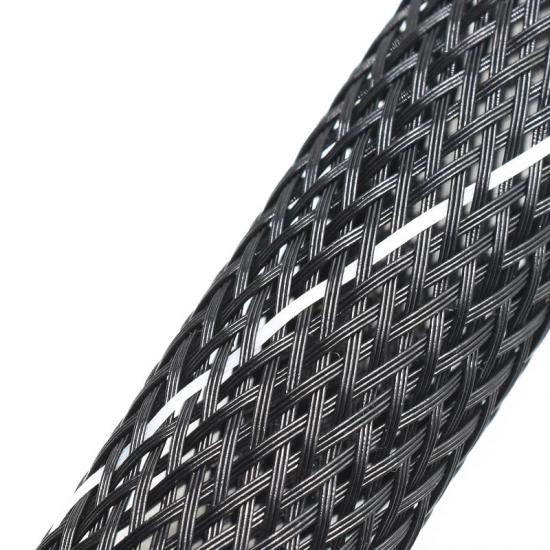

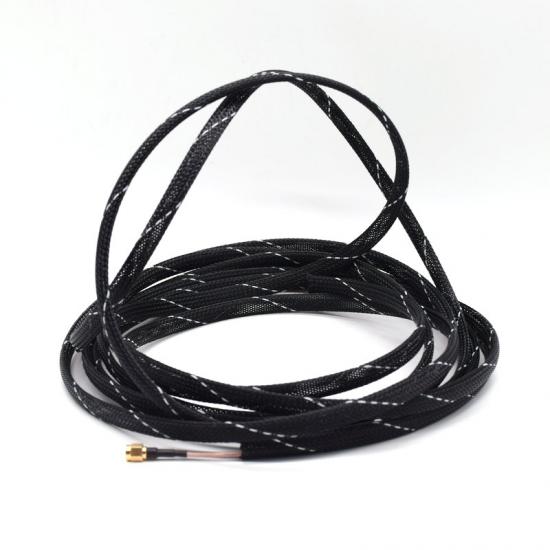

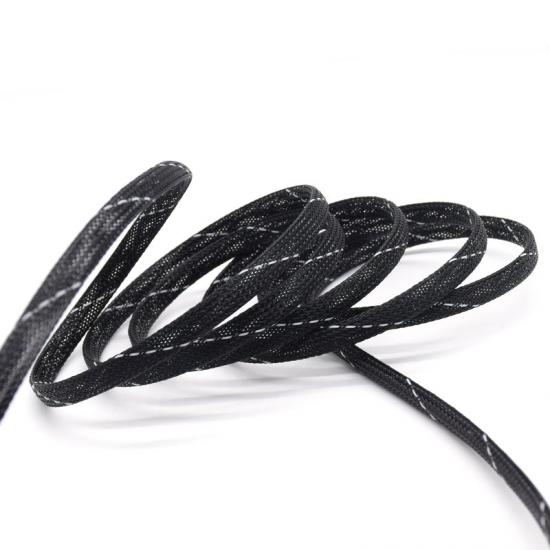

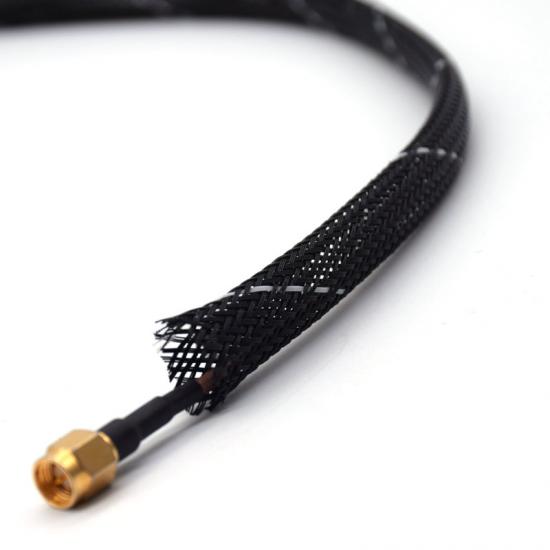

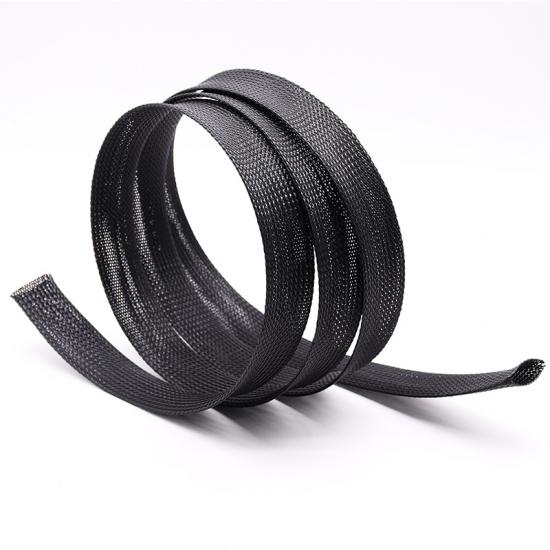

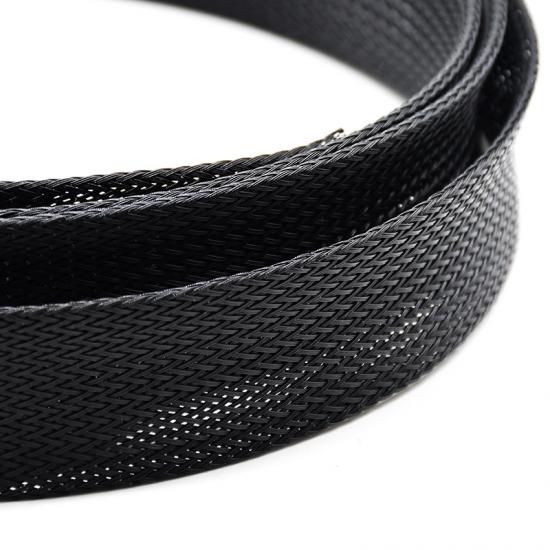

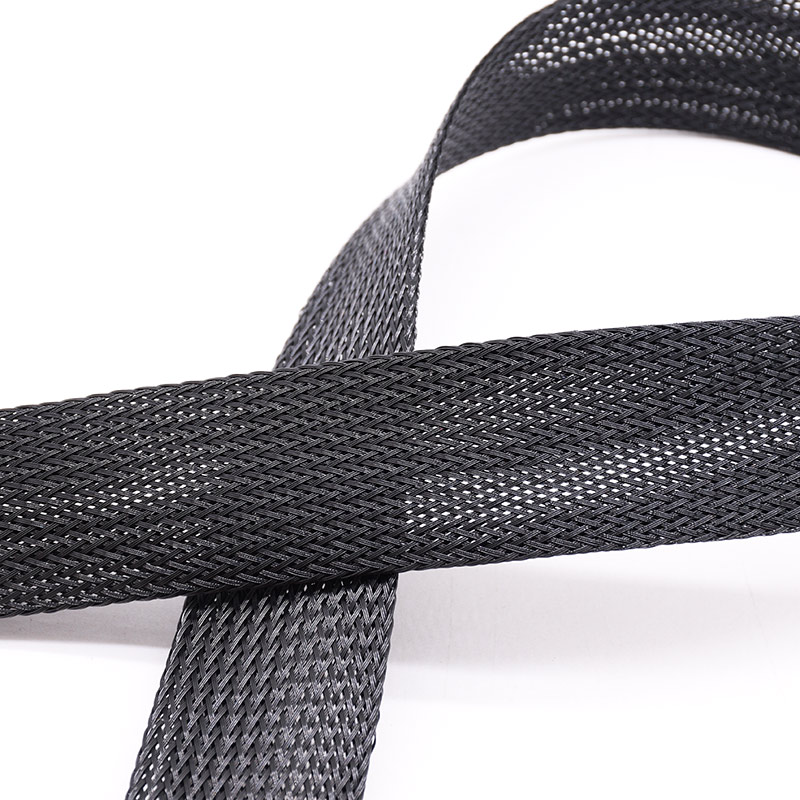

High Flame Retardant PET Expandable Braided Sleeving
High flame retardant PET expandable sleeving made of polyester monofilament.which are self-extinguishing according to UL94 V0 and EN45545-2 for enhanced fire protection.
The high flame retardant PET expandable sleeving are very flexible,flame retardant,UV resistance,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Certifications
Physical Properties
Physical Properties
Details
Material
PET Monofilament
Working Temperature
-40°C ~ +150°C
Melt Point
240(±10)°C
Low temperature resistance
No signs of embrittlement or degradation after test at -40°C for 4h
Heat aging resistance
No signs of embrittlement or degradation after test at 158°C for 168h
Flammability
UL94 V0, EN45545-2
UL-File Number
E533019
Abrasion Resistance
Medium
Standard Color
Black
Certification
Rohs, Reach, Halogen Free, UL
Halogen Free
Yes
UV Resistant
Yes
Cutting Tool
Hot Knife
Performance Comparison
Feature
Standard PET Sleeve
High Flame-Retardant PET Sleeve
Flammability
VW-1,FMVSS302
UL94 V0,EN45545-2
Abrasion Resistance
✔✔✔
✔✔✔✔
Chemical Resistance
✔✔✔
✔✔✔✔
Ideal Use Cases
General wiring
High-risk fire zones
What's Special about High Flame Retardant PET Expandable Sleeving?
1.Flame Retardant: Meets UL94 V0 and EN45545-2 standards
2.Flame Retardant:UL94V0,EN45545-2 flammability
3.Durable Protection: Excellent abrasion, solvent, and oil resistance 4.Chemically Stable: Resistant to fuel, salt spray, cleaning agents
5.RoHS & REACH Compliant: Halogen-free and environmentally safe
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | |||
| BRS-PET-003-BK-FR | 1/8” | 3 | 1 | 6 | 0.65±0.05 | 1000 |
| BRS-PET-006-BK-FR | 1/4” | 6 | 3 | 9 | 0.65±0.05 | 500 |
| BRS-PET-008-BK-FR | 5/16” | 8 | 5 | 12 | 0.65±0.05 | 350 |
| BRS-PET-010-BK-FR | 3/8” | 10 | 7 | 17 | 0.65±0.05 | 350 |
| BRS-PET-012-BK-FR | 1/2” | 12 | 8 | 20 | 0.65±0.05 | 300 |
| BRS-PET-016-BK-FR | 5/8” | 16 | 10 | 27 | 0.65±0.05 | 250 |
| BRS-PET-020-BK-FR | 3/4” | 20 | 14 | 30 | 0.65±0.05 | 200 |
| BRS-PET-025-BK-FR | 1” | 25 | 18 | 33 | 0.65±0.05 | 150 |
| BRS-PET-032-BK-FR | 1-1/4” | 32 | 20 | 50 | 0.65±0.05 | 100 |
| BRS-PET-038-BK-FR | 1-1/2” | 38 | 30 | 60 | 0.65±0.05 | 100 |
| BRS-PET-045-BK-FR | 1-3/4” | 45 | 35 | 75 | 0.65±0.05 | 100 |
| BRS-PET-050-BK-FR | 2” | 50 | 40 | 80 | 0.65±0.05 | 50 |
| BRS-PET-064-BK-FR | 2-1/2” | 64 | 45 | 105 | 0.65±0.05 | 50 |
| BRS-PET-076-BK-FR | 3” | 76 | 64 | 120 | 0.65±0.05 | 50 |
Recommended Applications

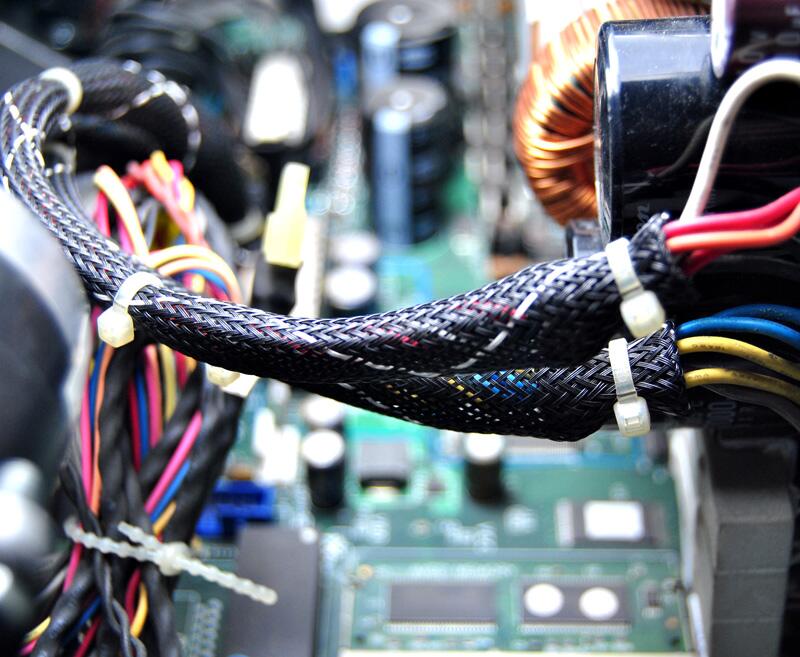

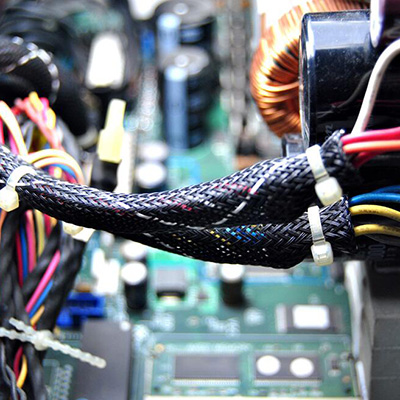

UL94V0 fire retardant braided sleeving widely use in railway vehicles, machine tools, robotics and automatic equipment,electronic and high tech applications where flame retardance and durability are primary concerns.
- Railway and Metro Cables
- Industrial Automation Systems
- Automotive Wiring Harnesses
- High-Voltage Power Systems
- Telecom & Data Cabling
- Electrical Panels and Enclosures
