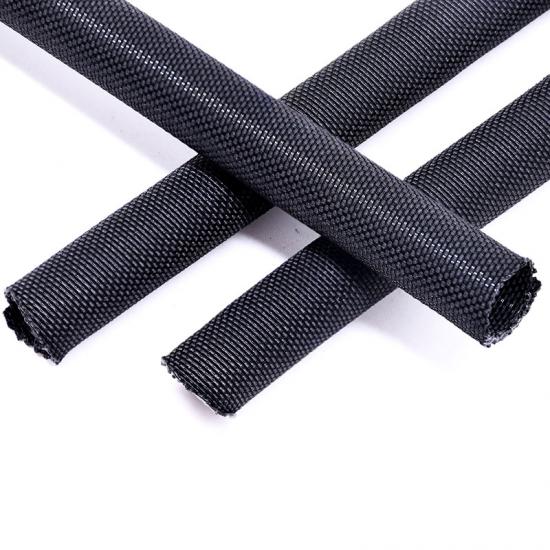

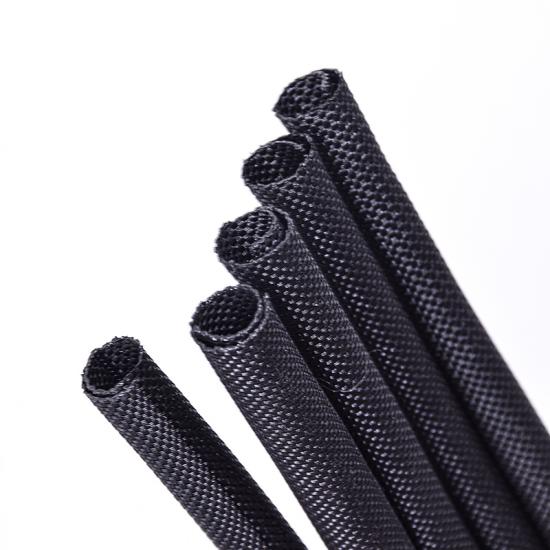

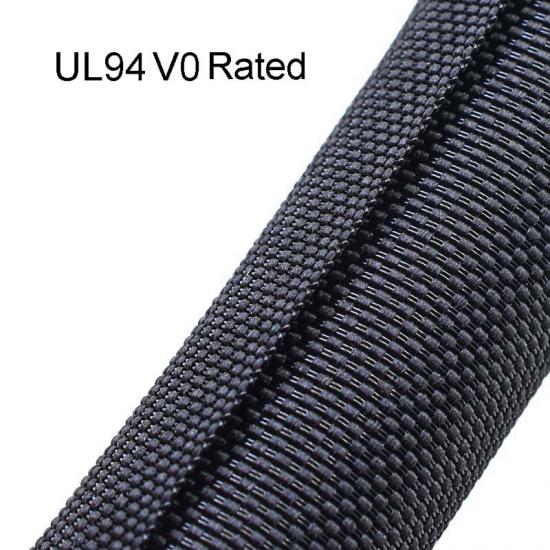

UL94 V0 Flame Retardant Wrap Around Sleeving
E-FLEX® STW V0 Flame Retardant Split Braided Wrap provides reliable cable protection in safety-critical environments where conventional sleeving solutions fail to deliver consistent fire performance.Both the raw materials and the finished sleeve achieve UL94 V0 flame-retardant performance.
Many conventional cable split sleeves struggle to consistently meet UL94 V0 standards at the finished product level, which limits their use in high-risk and safety-critical applications. This wrappable sleeving overcomes those limitations by delivering certified fire resistance at both material and product levels.
What's Apecial about UL94 V0 Wrap Around Sleeving?
- UL94 V0 flame-retardant rating (raw material & finished product)
- Woven wrap around design for quick and tool-free installation
- Excellent abrasion and wear resistance
- Stable performance in high-temperature environments
- Flexible yet durable structure for complex wiring harness routing
- Ideal wrappable sleeving solution for safety-critical and high-standard industries
Physical Properties
| Physical Properties | |
| Material | Flame-retardant polyester monofilament and 900D polyester multifilament |
| Working Temperature | -40℃ ~ +150℃ |
| Melt Point | 240+(-)10℃ |
| Flammability | UL94 V0 |
| Overlap | ≥ 35% |
| Aging Resistance | Refer to ISO6722 |
| Abrasion Resistance | Refer to ISO6722 |
| Liquid Resistance | Refer to GMW14327 |
| Standard Color | Black |
| Certification | UL, Rohs, Reach, Halogen Free |
| Cutting Tool | Hot Knife |
Specification
| Part No | Size (mm) | Spread Width (mm) | Bundle Dia Range (mm) Min | Bundle Dia Range (mm) Max | Packing Length (m/spool) |
| STW-PET-003-FR-V0 | Φ3 | 25±2 | 2 | 4 | 200 |
| STW-PET-005-FR-V0 | Φ5 | 29±2 | 4 | 6 | 200 |
| STW-PET-008-FR-V0 | Φ8 | 46±2 | 6 | 10 | 100 |
| STW-PET-010-FR-V0 | Φ10 | 55±2 | 8 | 11 | 100 |
| STW-PET-013-FR-V0 | Φ13 | 65±2 | 12 | 15 | 100 |
| STW-PET-016-FR-V0 | Φ16 | 77±2 | 15 | 18 | 100 |
| STW-PET-019-FR-V0 | Φ19 | 104±5 | 18 | 20 | 50 |
| STW-PET-025-FR-V0 | Φ25 | 125±5 | 23 | 26 | 25 |
| STW-PET-029-FR-V0 | Φ29 | 145±5 | 27 | 31 | 25 |
| STW-PET-032-FR-V0 | Φ32 | 164±5 | 30 | 34 | 25 |
| STW-PET-038-FR-V0 | Φ38 | 183±5 | 37 | 40 | 25 |
| STW-PET-050-FR-V0 | Φ50 | 243±8 | 48 | 52 | 25 |
Application
Products are widely used for wear-resistant protection and arangement of wire hamesses in automobiles and mechanical equipment.
- New Energy Vehicles (EV / Hybrid)
- Automotive Wiring Harness Systems
- Industrial Automation Equipment
- Rail Transit & Transportation Systems
- Power Distribution and Control Cabinets
- High-end Electrical & Electronic Assemblies
Factory Strength – Braided Sleeve Expertise
|
 |
|
 |
 |
|
 |
|
FAQ
1. Do you provide free samples?
• Special cases may be approved by management
• Black standard samples: 1–2 meters free, freight collected
• Colored / ODM samples: extra cost depending on supplier
................................................................................................................................................................................................................................................
2. What is your minimum order quantity (MOQ)?
• Black standard products: MOQ = one roll (first 3 orders allowed)
• Standard colors: usually 2000 meters (depends on yarn inventory)
................................................................................................................................................................................................................................................
3.What is your typical lead time?
Regular lead time: around 10 days
Urgent orders: about 5 days
................................................................................................................................................................................................................................................
4. Do your products have UL certification?
Yes. Our PET braided sleeving, self-closing braided wrap, textile wrap, self-closing conduit, and full-elastic wrap are UL-certified.
................................................................................................................................................................................................................................................
5. Do you have ISO and other quality system certifications?
Yes. We are certified with:
• ISO 9001
• ISO 14001
• ISO 13485 (medical)
• IATF 16949 (automotive)
................................................................................................................................................................................................................................................
6. Can you customize packaging?
Yes, based on required quantity and product type.
