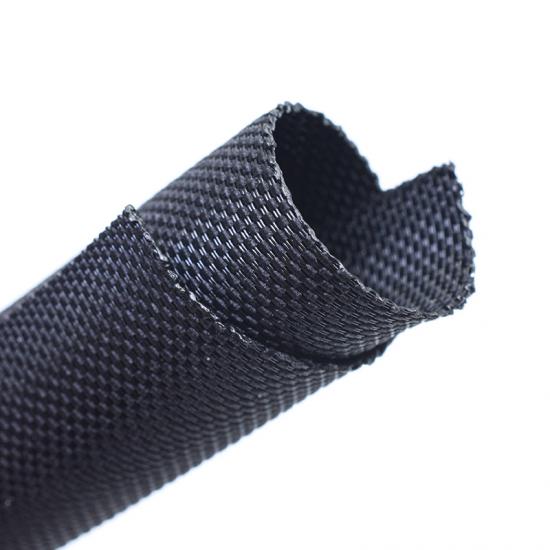

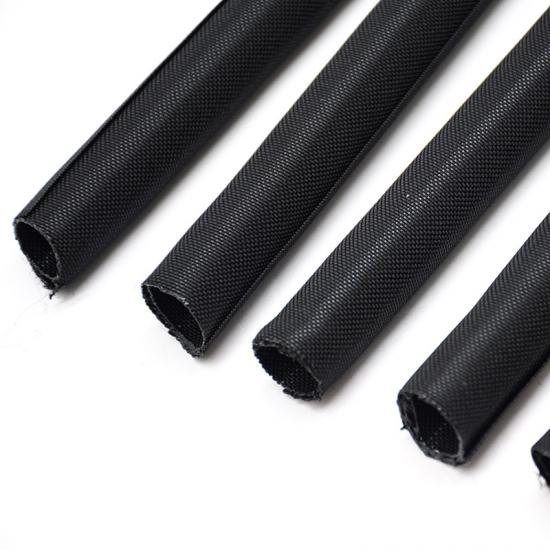

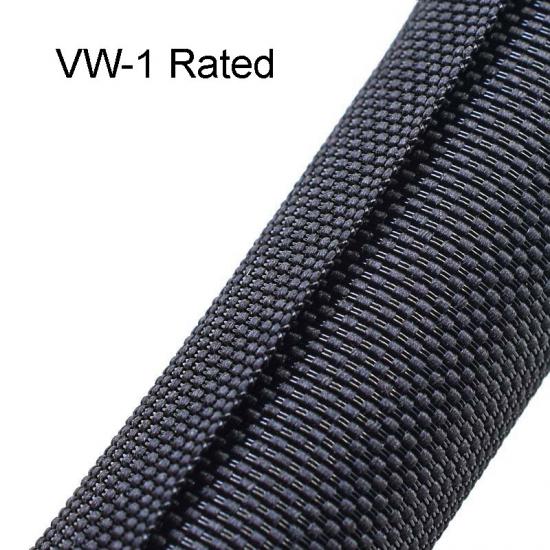

The E-FLEX® VW-1 Rated Textile Braided Split Sleeving is the professional choice for protecting complex wiring systems. Unlike traditional expandable sleeves, its "always-closed" memory allows it to wrap tightly around cables, providing 360-degree protection while remaining accessible.
The heavy-duty 900D multifilament construction provides a soft, cloth-like feel that prevents rattling in automotive cabins while offering the ruggedness required for engine compartments. It is highly resistant to common automotive fluids and environmental aging, ensuring a long service life in harsh conditions.
Certifications
Physical Properties
Physical Properties
Details
Material
Flame-Retardant Polyester Monofilament and 900D Polyester Multifilament
Working Temperature
-40°C ~ +150°C
Melt Point
240(±10)°C
Flammability
VW-1
Abrasion Resistance
Refer to ISO6722
Overlap
≧35%
Aging Resistance
Refer to ISO6722
Standard Color
Black
Certification
UL,Rohs,Reach,Halogen Free
Liquid Resistance
Refer to GMW14327
Cutting Tool
Hot Knife
Specification
Part No
Bundle Dia Range(mm)
Min
Max
STW-PET-003-FR-VW-1
Φ3
25±2
2
4
200
STW-PET-005-FR-VW-1
Φ5
29±2
4
6
200
STW-PET-008-FR-VW-1
Φ8
46±2
6
10
100
STW-PET-010-FR-VW-1
Φ10
55±2
8
11
100
STW-PET-013-FR-VW-1
Φ13
65±2
12
15
100
STW-PET-016-FR-VW-1
Φ16
77±2
15
18
100
STW-PET-019-FR-VW-1
Φ19
104±5
18
20
50
STW-PET-025-FR-VW-1
Φ25
125±5
23
26
25
STW-PET-029-FR-VW-1
Φ29
145±5
27
31
25
STW-PET-032-FR-VW-1
Φ32
164±5
30
34
25
STW-PET-038-FR-VW-1
Φ38
183±5
37
40
25
STW-PET-050-FR-VW-1
Φ50
243±8
48
52
25
Application
Due to its high flame-retardant rating and ease of use, the E-FLEX® series is widely utilized across several key sectors:
- Aerospace & Defense: Protection of sensitive avionics and wiring harnesses compliant with AS9100D environments.
- Railway & Rolling Stock: Meets stringent EN45545 fire-smoke-toxicity standards for passenger safety.
- Automotive (EV & ICE): Ideal for high-voltage battery cables and engine bay harnesses requiring VW-1 protection and fluid resistance.
- Industrial Automation: Cable management for robotic arms and CNC machinery where frequent maintenance or cable additions are required.
- Marine & Offshore: Protecting communication cables against abrasion and harsh environmental exposure.
