Zipper Expandable Braided Cable Wrap Sleeving

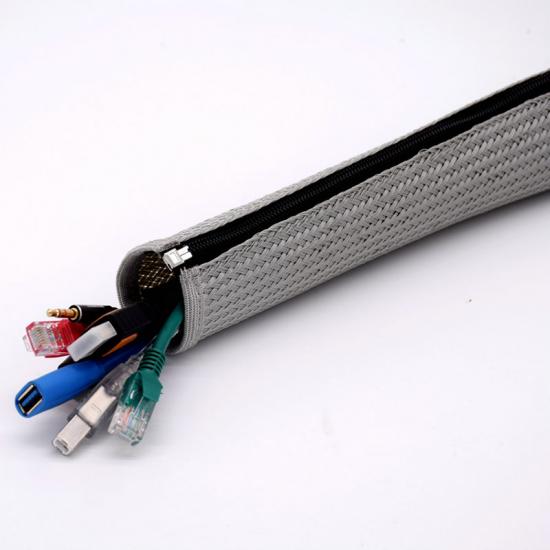

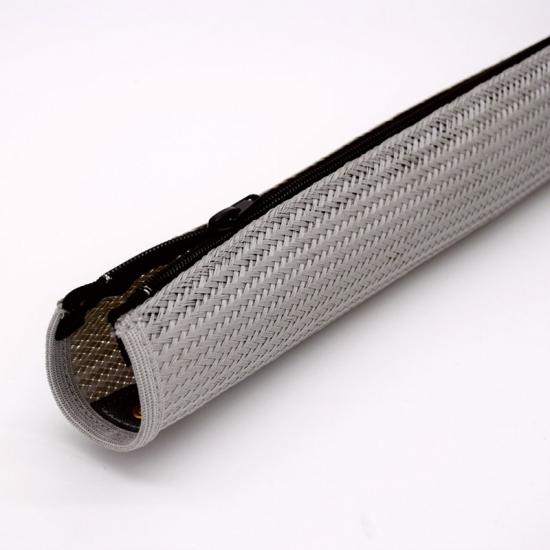

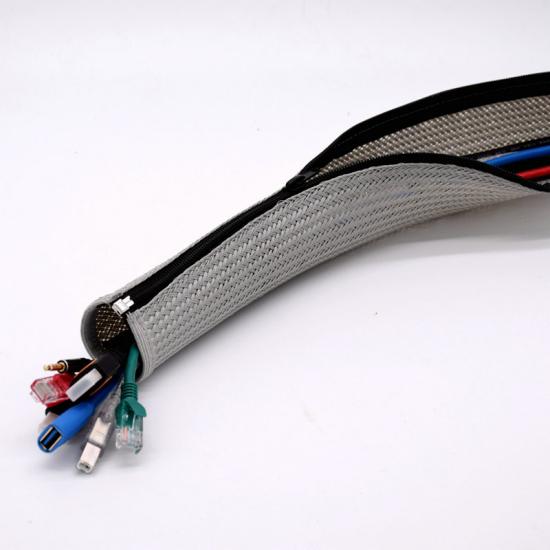

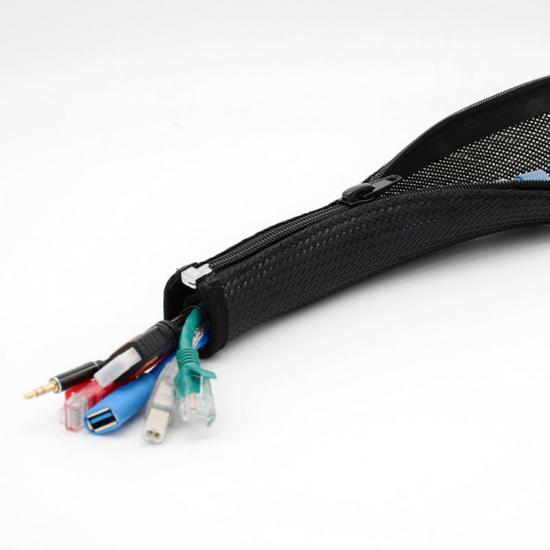

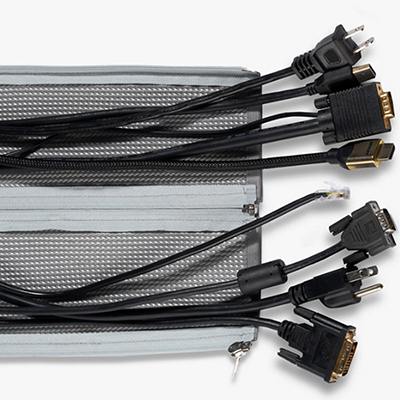

E-FLEX® Zipper Expandable Cable Wrap is a sophisticated cable management system that blends the protective qualities of high-quality polyester braiding with the functional convenience of a nylon zipper. This innovative design allows for the quick bundling, removal, and re-routing of cables without the need to disconnect any terminals or connectors. It is the definitive choice for environments requiring frequent maintenance or system upgrades, providing a clean, organized, and professional look while ensuring robust physical protection.

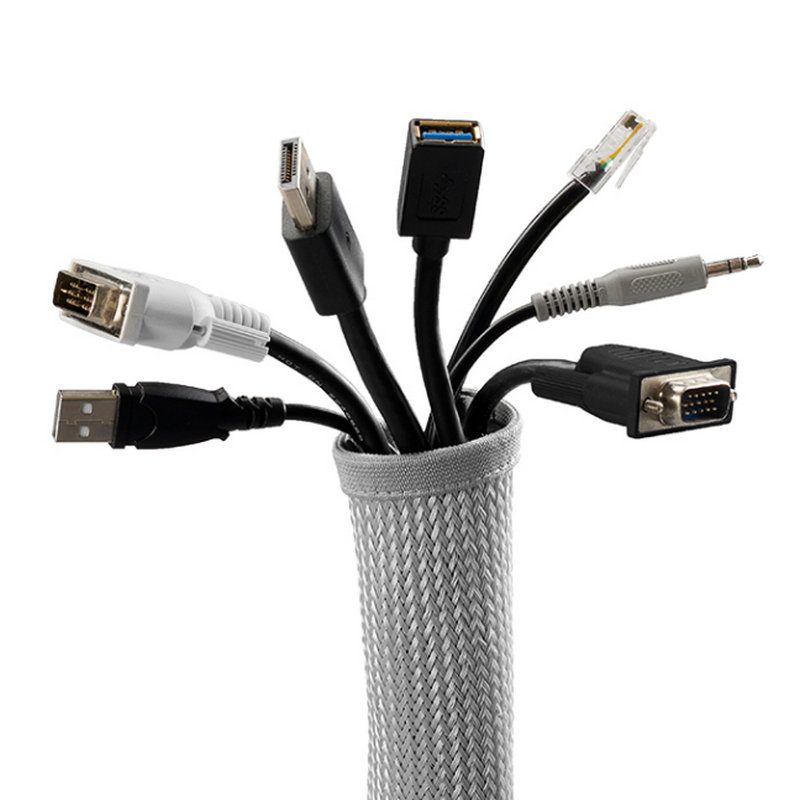

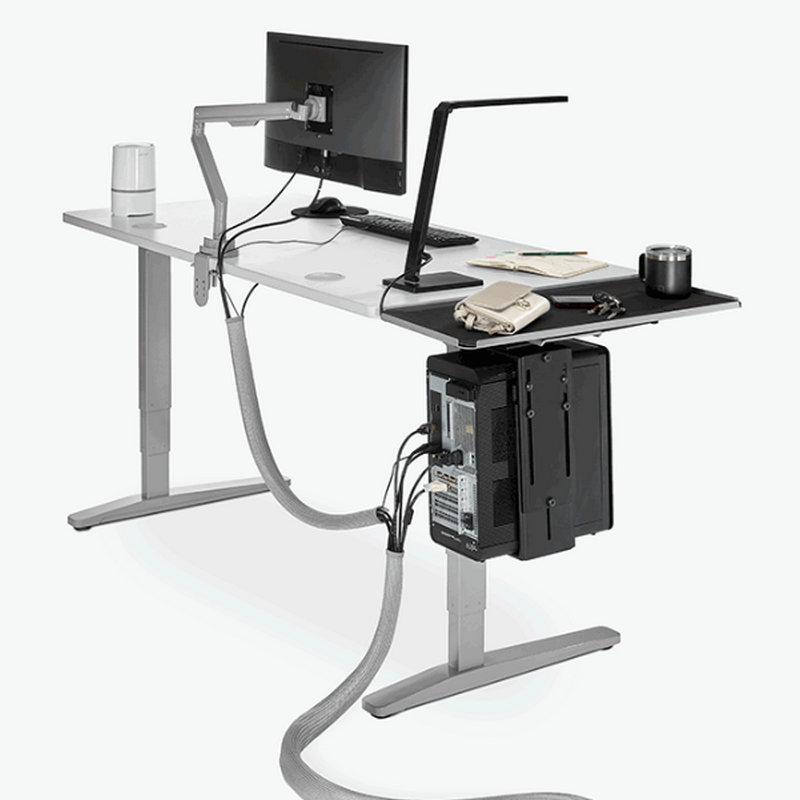

Zipper braided cable wrap Ideal for keeping cords organized under your desk and behind your monitor or entertainment system
Physical Properties
Physical Properties
Details
Sleeve Material
Polyester
Zipper Material
Nylon
Working Temperature
-40°C ~ +125°C
Melt Point
240(±10)°C
Flammability
UL94 V2
Abrasion Resistance
Refer to ISO6722
Liquid Resistance
Refer to GMW14327
Standard Color
Black
Rohs Compliant
Yes
Reach Compliant
Yes
What's Special about Zipper Expandable Braided Cable Wrap Sleeving?

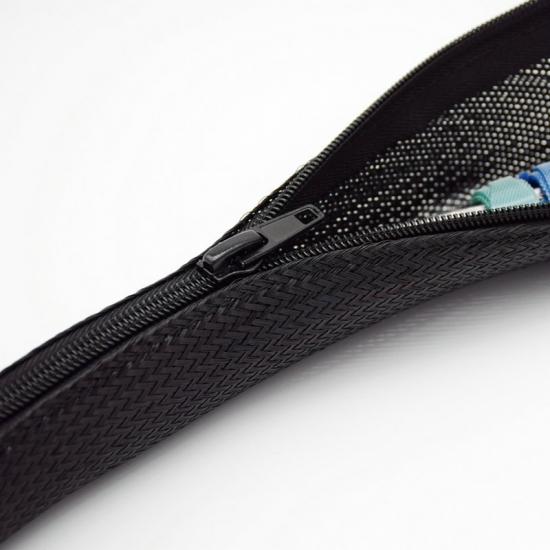

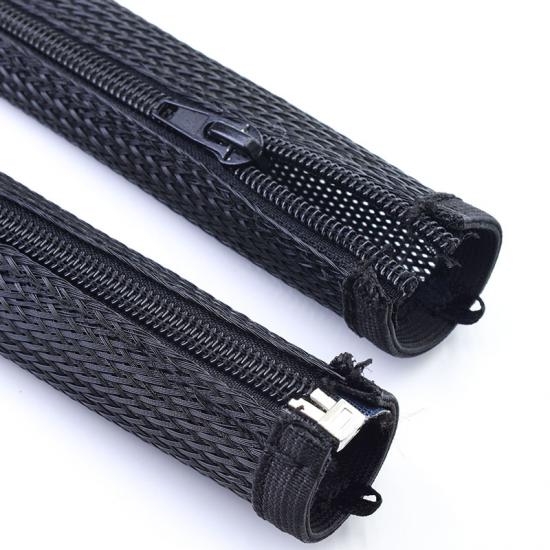

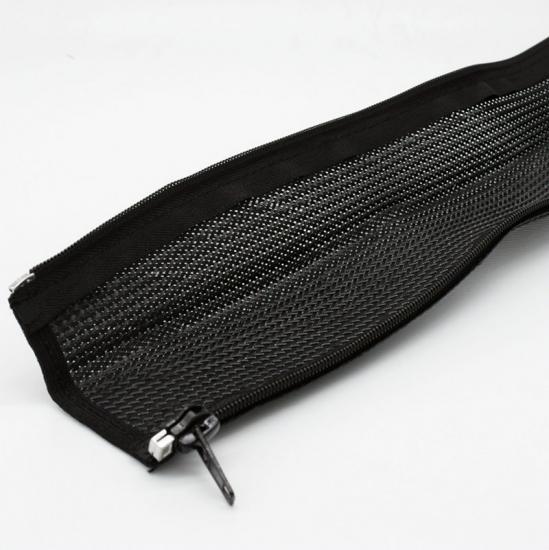

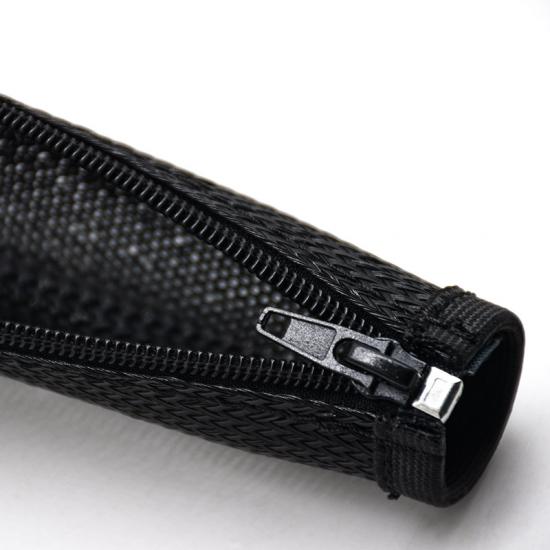

- Effortless Zipper Closure: Features a rugged nylon zipper that enables instant access to enclosed cables, making maintenance and system modifications faster and easier than ever.

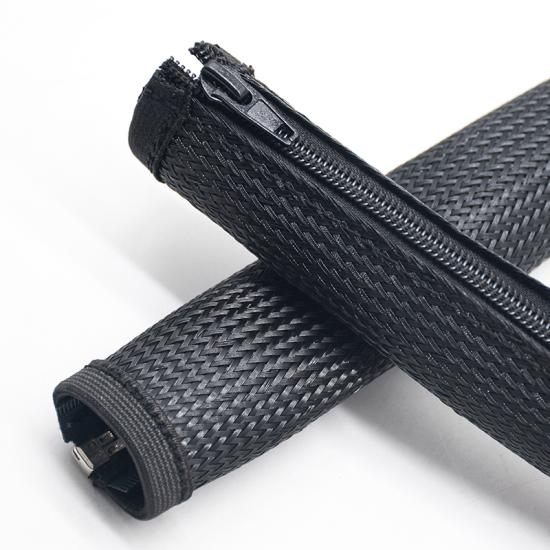

- Flexible Braided Construction: Made from premium polyester fibers that provide excellent flexibility, allowing the sleeve to bend and follow complex cable paths without kinking.
- Superior Thermal Stability: Engineered to perform reliably across a wide temperature spectrum, maintaining its structural integrity in both cold and high-heat environments.
- Excellent Abrasion & Liquid Resistance: Offers a tough protective layer that shields wires from friction and mechanical wear, while demonstrating resilience against common industrial fluids.
- Rapid Installation & Re-entry: The non-permanent closure system is perfect for retrofitting existing setups, allowing for easy cable additions or removals without specialized tools.
- Flame Retardant Safety: Complies with recognized industry flammability standards, ensuring the product is self-extinguishing and safe for use in critical electrical applications.
- Full Environmental Compliance: Proudly RoHS and REACH compliant, meeting international standards for environmental safety and material sustainability.
Specification
| Part No | Nominal Size W（mm） | Approx. Inside Diameter(mm) | Max Bundle Dia | Length | |
| ZBW-PZP-012-BK | 12 | 8 | 8 |
1m/pc
Or
Custom
Length
|
|
| ZBW-PZP-020-BK | 20 | 12 | 15 | ||
| ZBW-PZP-030-BK | 30 | 20 | 20 | ||
| ZBW-PZP-050-BK | 50 | 32 | 35 | ||
| ZBW-PZP-064-BK | 64 | 40 | 45 | ||
Application
Expandable braided zipper sleeving ideal for quick and easy cable management in homes, offices, and even industrial facilities.
- Data Centers & Telecom: Ideal for managing high-density server cables where frequent hardware changes and re-routing are common.
- Broadcast & Stage AV: Provides a tidy and quickly deployable solution for organizing temporary or permanent audio-visual cable runs.
- Industrial Electrical Panels: Used to bundle internal wiring for a clean professional finish while allowing easy access for troubleshooting.
- Automotive & Marine: Protects complex wiring harnesses in vehicles and boats from vibration and abrasion while simplifying repair work.
- Office & Home Automation: A high-end solution for concealing "cable nests" behind desks or entertainment centers, allowing for easy device swaps.
