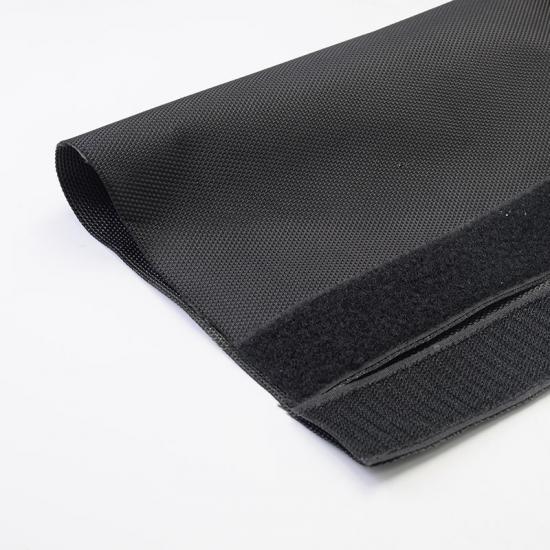

Waterproof Hook-&-Loop Textile Sleeve

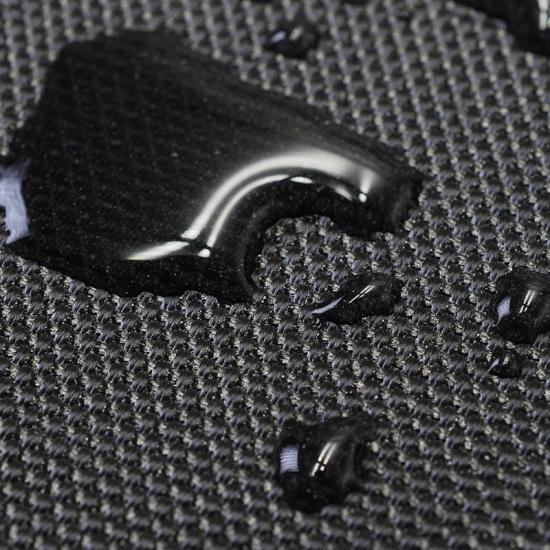

High-density weaving + PU coating: Nylon yarns are tightly interwoven, and the PU coating penetrates the surface of the yarn to form a continuous waterproof membrane to block moisture penetration.

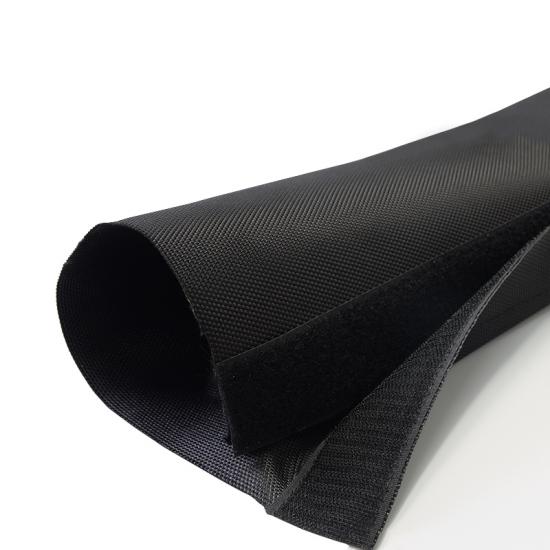

Velcro closure: The side hook surface and the suede surface are precisely matched to provide stable clamping force, which can be installed and removed without tools to adapt to different diameter harnesses.
Sleeve Body: Premium nylon (PA) yarn woven at high density, surface-coated with polyurethane (PU) for waterproofing.
Hook-&-Loop Closure: Nylon hook and loop strips—strong engagement that withstands repeated openings.
Certifications
What's Special about Waterproof Hook-&-Loop Textile Sleeve？

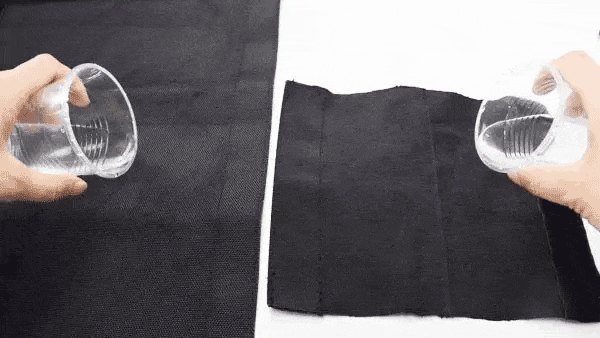

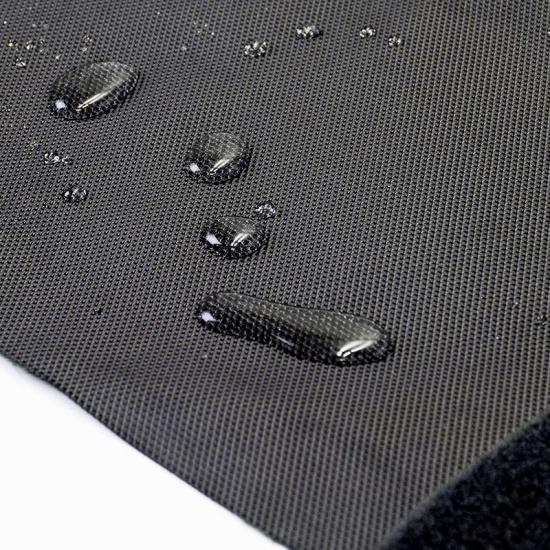

1.Excellent waterproofing
2.Quick installation
3.Wide temperature and weather resistance
4.Super wear resistance
5.Strong customizability
6.Reusable
Specification
| Part No |
ID
（mm）
|
Spread Width
(mm)
|
Thickness
(mm)
|
Packing Length
(m/spool)
|
| VTW-PVT-025-BK-WR | 25.4±3 | 100±9 | 0.7±0.1 | 25 |
| VTW-PVT-038-BK-WR | 38.0±3 | 140±9 | 0.7±0.1 | 25 |
| VTW-PVT-050-BK-WR | 50.8±3 | 198±9 | 0.7±0.1 | 25 |
| VTW-PVT-064-BK-WR | 64.0±3 | 238±9 | 0.7±0.1 | 25 |
| VTW-PVT-076-BK-WR | 76.0±3 | 278±9 | 0.7±0.1 | 25 |
| VTW-PVT-090-BK-WR | 90.0±3 | 318±9 | 0.7±0.1 | 25 |
| VTW-PVT-100-BK-WR | 100.0±3 | 357±9 | 0.7±0.1 | 25 |
| VTW-PVT-115-BK-WR | 115.0±3 | 397±9 | 0.7±0.1 | 25 |
| VTW-PVT-125-BK-WR | 125.0±3 | 437±9 | 0.7±0.1 | 25 |
| VTW-PVT-150-BK-WR | 150.0±3 | 517±9 | 0.7±0.1 | 25 |
| Note:other specifications can be customized according to customer | ||||
Application
Agricultural machinery and gardening equipment: sprinkler control lines, waterproof motor wiring harnesses
Ships and offshore platforms: deck cables, moisture-proof sensor connection cables
Outdoor monitoring and communications: outdoor cameras, base station equipment wiring harnesses
Automobiles/motorcycles: body wiring harnesses, cable protection under fenders
Building intelligence: cable management in humid environments such as basements and parking lots
