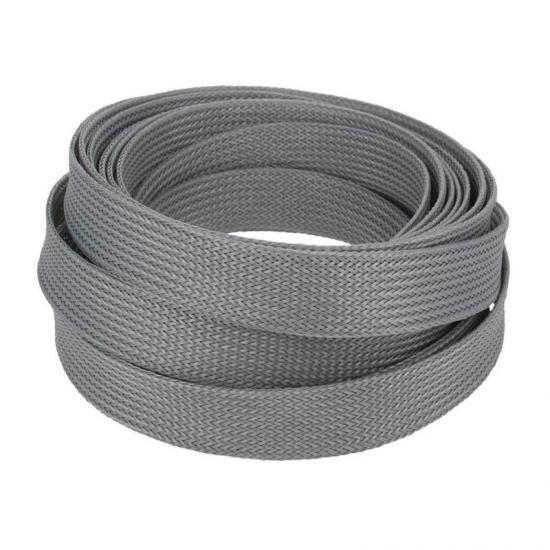

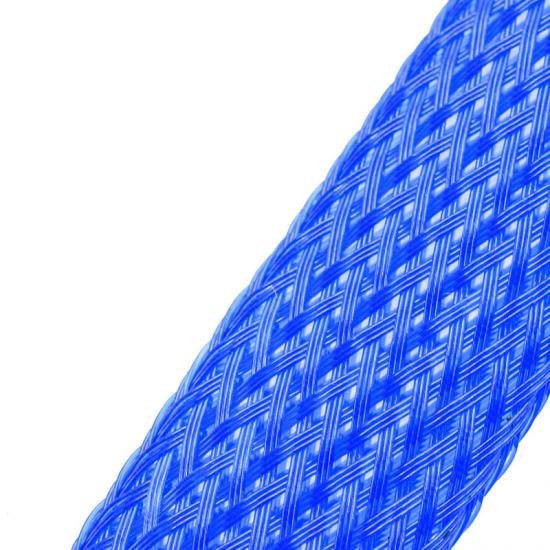

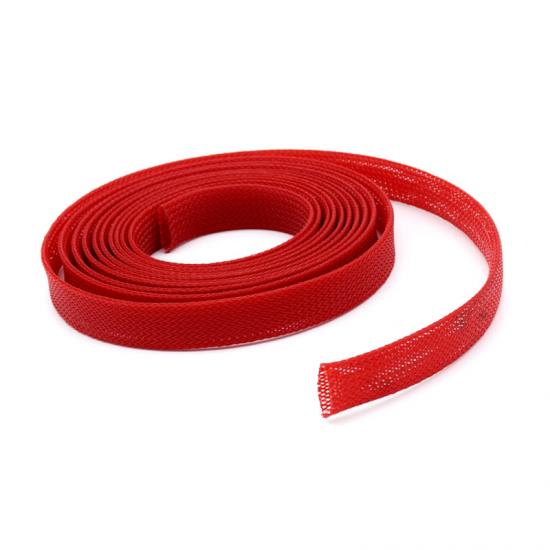

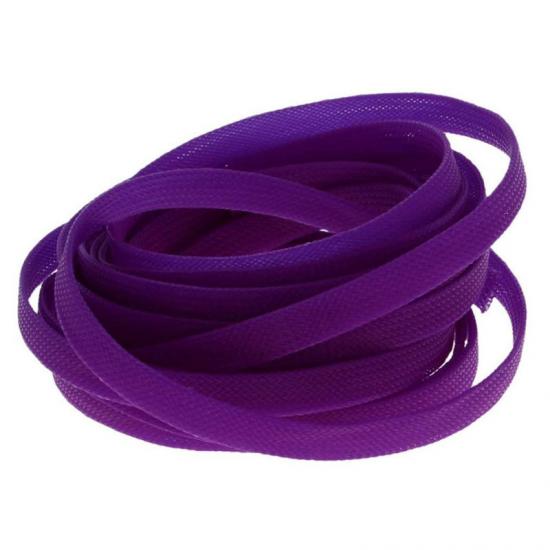

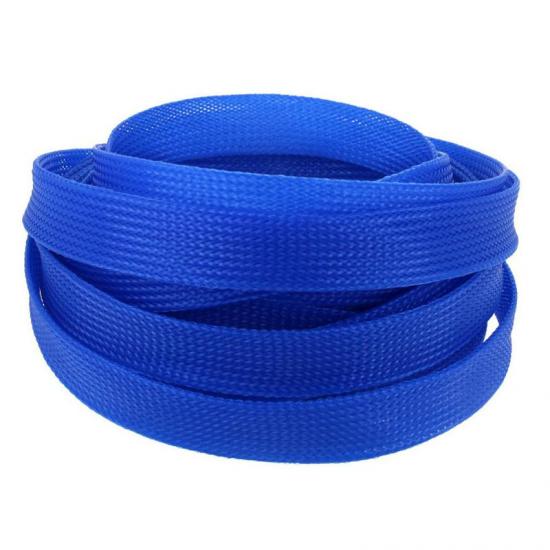

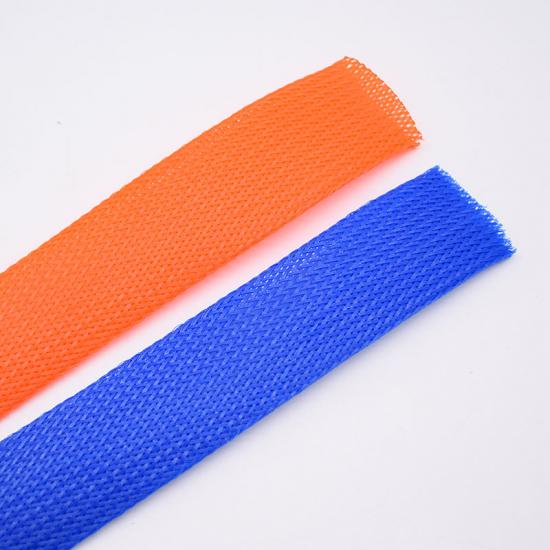

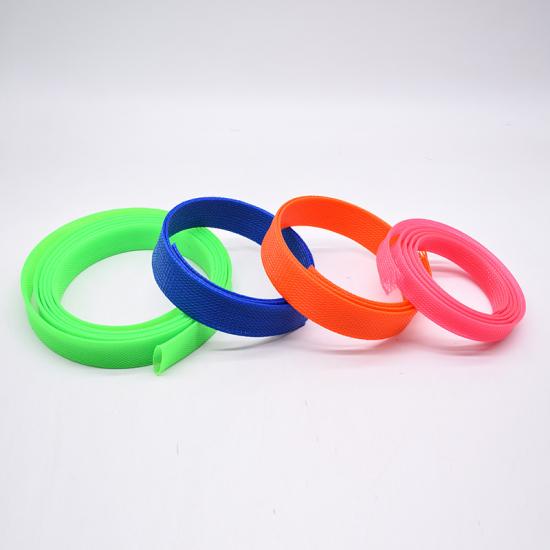

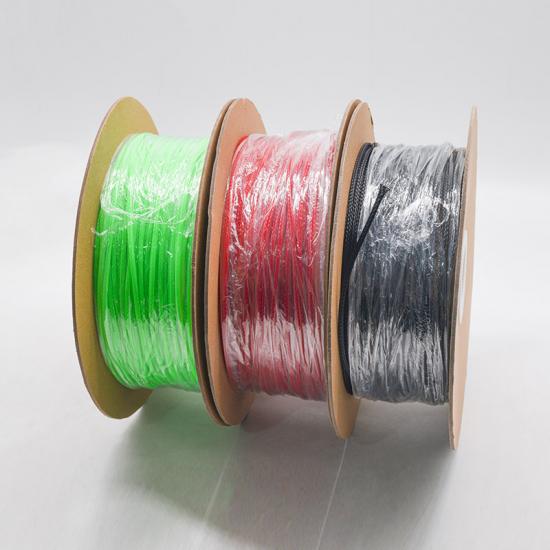

Colors PET Expandable Braided Sleeve for Cables
Colors expandable sleeving made of 0.25mm thick PET monofilament.The special braid construction permits the sleeving to be expanded by up to 300%, with high abrasion resistance, allow quick and easy fitting over irregular components.
The pet monofilament are very flexible,flame retardant,UV resistance,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Pet braided wire sleeve popular used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.
Certifications
Physical Properties
| Physical Properties | Details |
|
Material |
PET Monofilamentent |
| Working Temperature | -40℃~+150℃ |
| Melt Point | 240+(-10)°C |
| Low temperature resistance | No signs of embrittlement or degradation after test at -40°C for 4h |
| Heat aging resistance | No signs of embrittlement or degradation after test at 158°C for 168h |
| Flammability | VW-1,FMVSS302 |
| Abrasion Resistance | Medium |
| Standard Color | Colored |
| Certification | Rohs, Reach |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |
What's Special about Colors Expandable Braided Sleeving?
1.Made of polyester monofilament
2.Flame retardant
3.Extremely lightweight
4..Keeps it's flexibility under a wide range of temperatures
5.Economical & easy to install
6.Resists gasoline, chemicals & cleaning Solvents
7.Expands up to 150% of Initial Diameter
8.Cut & abrasion resistant
9.More than 60 colors available
Specification
Part No
Flat Width(W)
Expanded Range(mm)
Inch
mm
Min.(I)
Max.(O)
BRS-PET-003-CLR
1/8”
3
1
6
0.65±0.05
500
BRS-PET-006-CLR
1/4”
6
3
9
0.65±0.05
400
BRS-PET-008-CLR
5/ 16”
8
5
12
0.65±0.05
400
BRS-PET-010-CLR
3/8”
10
7
17
0.65±0.05
200
BRS-PET-012-CLR
1/2”
12
8
20
0.65±0.05
200
BRS-PET-016-CLR
5/8”
16
10
27
0.65±0.05
200
BRS-PET-020-CLR
3/4”
20
14
30
0.65±0.05
200
BRS-PET-025-CLR
1”
25
18
33
0.65±0.05
100
BRS-PET-032-CLR
1-1/4”
32
20
50
0.65±0.05
100
BRS-PET-038-CLR
1-1/2”
38
30
60
0.65±0.05
100
BRS-PET-045-CLR
1-3/4”
45
35
75
0.65±0.05
50
BRS-PET-050-CLR
2”
50
40
80
0.65±0.05
50
BRS-PET-064-CLR
2-1/2”
64
45
105
0.65±0.05
50
BRS-PET-076-CLR
3”
76
64
120
0.65±0.05
50
Application

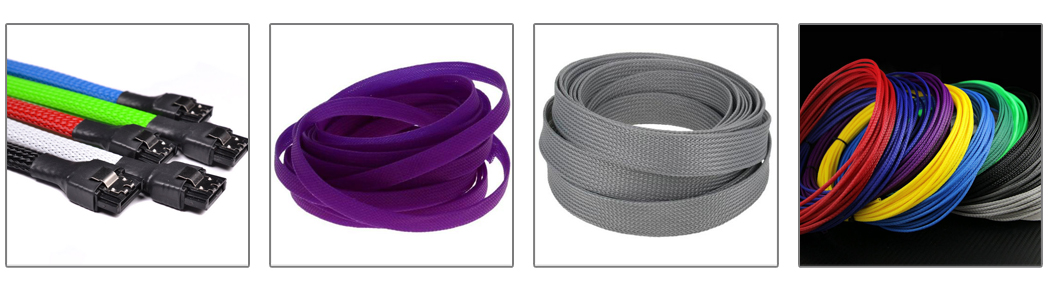

MJ colored braided wire loom widely use for whenever a higher expansion rate is required.
Colored cable sleeve is a general purpose protective wire covering for industrial cable,A/V cable,Hdmi cable,wire harness,pneumatic hoses, hydraulic lines and highly polished or threaded machine parts.
