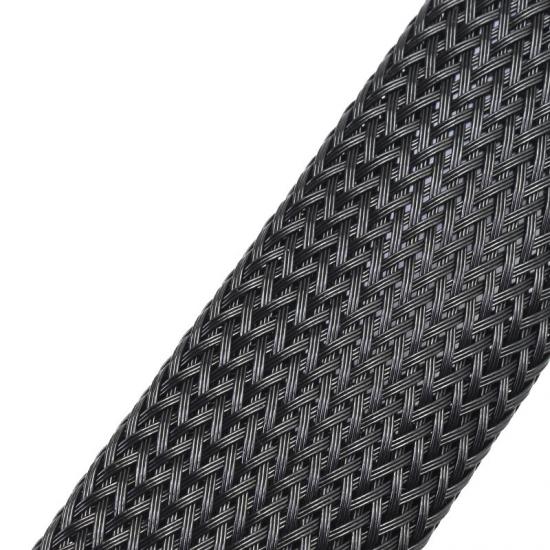

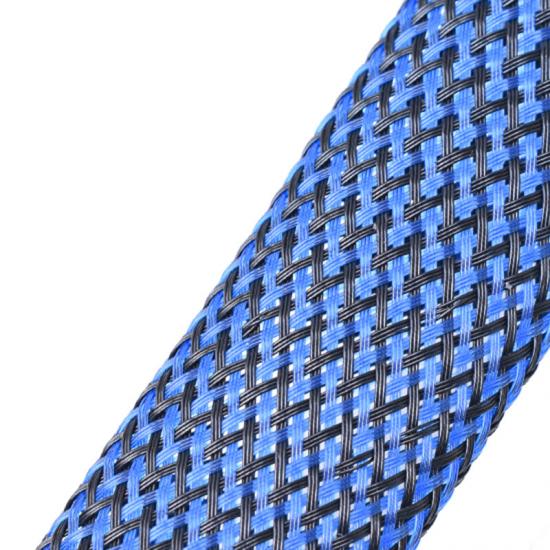

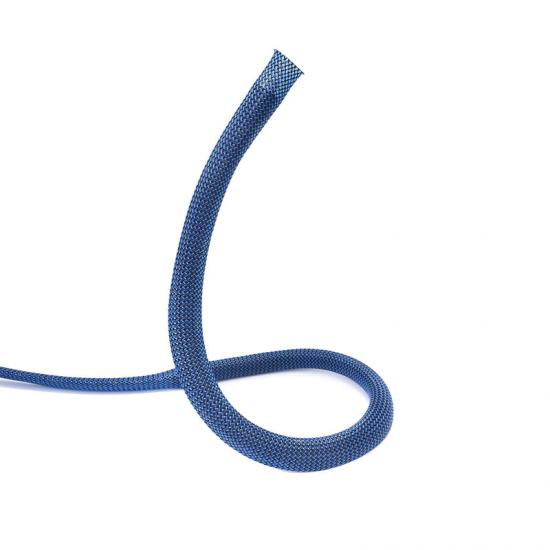

PET Tight Weave Expandable Braided Sleeving
E-FLEX® Tight Weave PET Sleeving utilizes a dense 0.25mm monofilament structure to provide near-total coverage and industry-leading abrasion resistance. Designed to safeguard critical harnesses, this sleeving improves overall system security in harsh conditions. It offers a superior, cost-effective alternative for industries seeking uncompromised flame retardancy and extreme durability in a compact, flexible form factor.
Designed as a high-performance yet cost-effective solution, it ensures the structural integrity of complex wire harnesses without sacrificing flexibility. Whether in automotive, industrial automation, or renewable energy sectors, our sleeving delivers an uncompromising balance of flame retardancy (VW-1) and thermal stability, ensuring your production remains uninterrupted in the most demanding environments.
Certifications
Physical Properties
Physical Properties
Details
Material
PET monofilament
Filament Dia
0.01"(0.25mm)
Working Temperature
-40°C ~ +150°C
Melt Point
240(±10)°C
Low temperature resistance
No signs of embrittlement or degradation after test at -40°C for 4h
Heat aging resistance
No signs of embrittlement or degradation after test at 158°C for 168h
Flammability
FMVSS302, VW - 1
Abrasion Resistance
ISO19642 - 2:2023
Standard Color
Black,Orange
Certification
Rohs, Reach, Halogen Free
Cutting Tool
Hot Knife
What's Special about PET Tight Weave Expandable Braided Sleeving？
- Maximum Shielding & Aesthetics: The tight-weave structure provides near 100% opacity, concealing internal color-coded wires and offering superior dust protection.
- Industrial-Grade Abrasion Resistance: our sleeving far exceeds standard PET mesh in high-friction and high-vibration applications.
- Thermal & Chemical Stability: Rated for continuous operation up to 150°C, resistant to common automotive fluids, fuels, and UV exposure.
- Compliance-Ready: Fully compliant with RoHS, REACH, and Halogen-Free standards; meets VW-1 flame retardancy for enhanced safety.
- Ease of Integration: Engineered for rapid installation over long runs and bulky connectors, reducing labor time and assembly costs.
Specification
Part No
Size(Flat Width)
Expanded Range(mm)
Wall Thickness (mm)

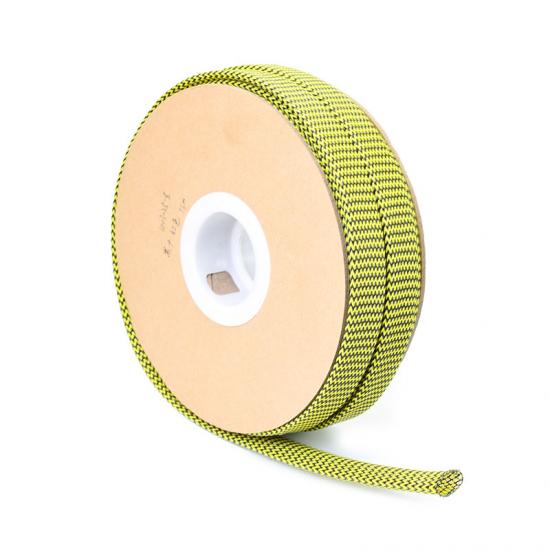

Packing Length (m/spool)
Inch
mm
Min.(I)
Max.(O)
BRS-PET-003-BK-HD
1/8"
3
2
6
0.85±0.05
800
BRS-PET-006-BK-HD
1/4"
6
4
8
0.85±0.05
400
BRS-PET-008-BK-HD
5/16"
8
6
10
0.85±0.05
300
BRS-PET-010-BK-HD
3/8"
10
8
13
0.85±0.05
300
BRS-PET-012-BK-HD
1/2"
12
9
15
0.85±0.05
250
BRS-PET-016-BK-HD
5/8"
16
11
20
0.85±0.05
200
BRS-PET-020-BK-HD
3/4"
20
12
25
0.85±0.05
150
BRS-PET-025-BK-HD
1"
25
16
30
0.85±0.05
150
BRS-PET-032-BK-HD
1-1/4"
32
25
42
0.85±0.05
100
BRS-PET-038-BK-HD
1-1/2"
38
28
50
0.85±0.05
50
BRS-PET-045-BK-HD
1-3/4"
45
38
65
0.85±0.05
50
BRS-PET-050-BK-HD
2"
50
44
78
0.85±0.05
50
BRS-PET-064-BK-HD
2-1/2"
64
50
88
0.85±0.05
50
Application

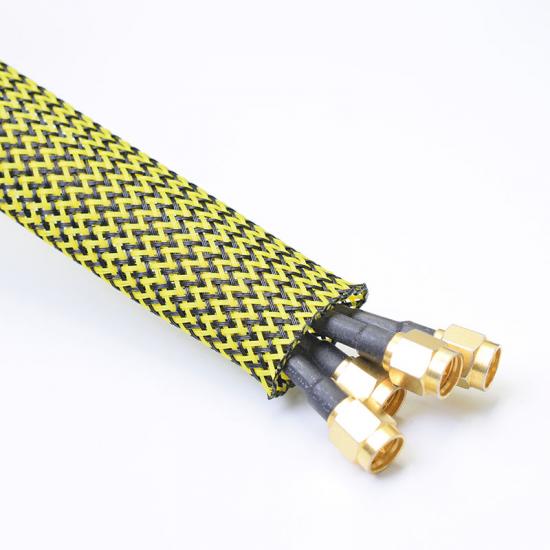

Tight weave expandable braided cable sleeving is the premier choice for complex wire harnessing where both maximum coverage and superior expansion are critical. The unique braided construction allows for enabling rapid installation over oversized connectors and multi-branch assemblies in automotive, industrial automation, and marine sectors.
Beyond electronics, this versatile protector serves as a robust shield for pneumatic hoses and hydraulic lines, preventing abrasion in high-vibration environments. It is equally effective for safeguarding precision-threaded machine parts and high-end A/V systems, providing an elite balance of mechanical durability and professional aesthetics.
