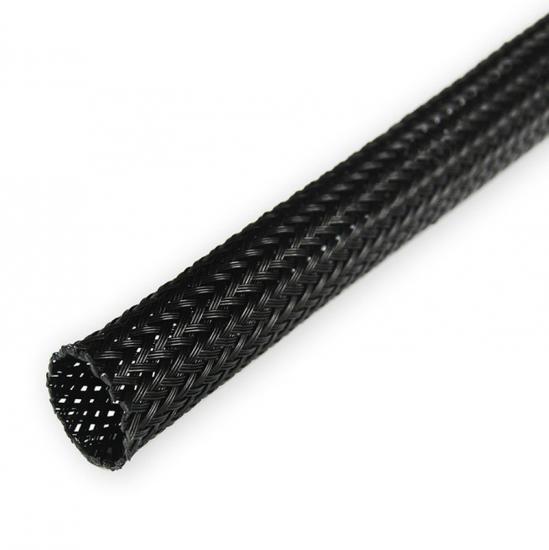

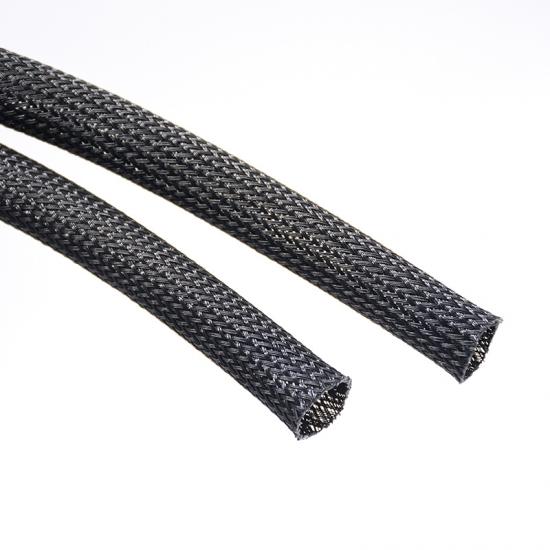

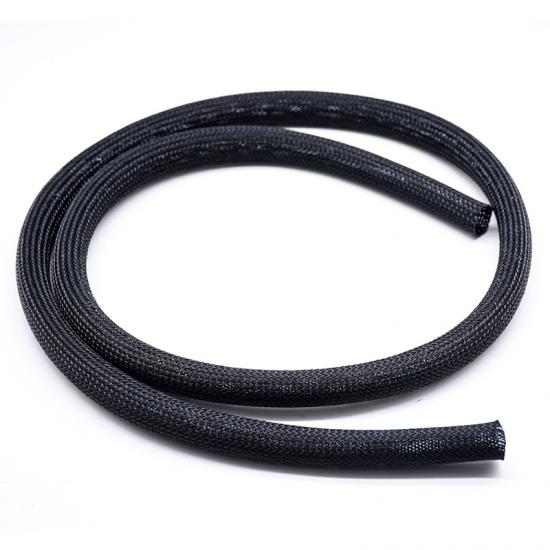

Nylon Polyester Expandable Braided Sleeve

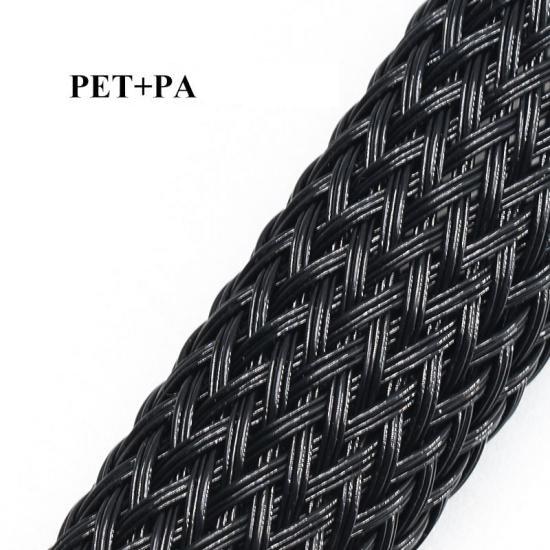

E-FLEX® PET+PA Automotive Braided Wire Sleeve is a high-performance protective loom specifically engineered for demanding automotive and industrial environments. By blending the thermal stability of Flame-Retardant Polyester (PET) with the exceptional toughness of Nylon 6.6 (PA66) monofilaments, this sleeving delivers a superior shield against extreme abrasion, scuffing, and mechanical wear.
Designed to exceed rigorous automotive standards such as GMW14327 and ISO 6722-1 Class 6, it provides an armored yet lightweight layer for critical wire harnesses and hoses. Its open-weave construction expands up to 150%, ensuring a snug, flexible fit over connectors and tight bends while resisting gasoline, engine fluids, and UV degradation.
Certifications
Physical Properties
| Physical Properties | Details |
| Material | PET+PA66 |
| Working Temperature | −40℃~+150℃ |
| Melt Point | 240+(-10)°C |
| Low temperature resistance | No signs of embrittlement and degradation after test at −40°C for 4h per GMW14327 |
| ★Heat aging resistance | No signs of embrittlement and degradation after test at +150°C for 504h per GMW14327 |
| Flammability | Combustion rate <100mm/min per FMVSS302 |
| Abrasion Resistance | Corrosion to GMW14327 class 6（30000 - 99999 times）per ISO6722-1 |
| Standard Color | Black |
| Certification | Rohs, Reach |
| Cutting Tool | Hot Knife |
What's the special about our automotive braided wire loom?
1.Dual-Fiber Hybrid Construction: Combines the best properties of PA66 and PET for a high-performance, cost-effective abrasion guard.
2.Exceptional Scuff Resistance: Specifically designed for "Under-the-Hood" components exposed to constant vibration and friction.
3.Engineered to OEM Specs: Tested according to global automotive standards (GMW, ISO) for guaranteed reliability.
4.Flexible & Lightweight: Provides heavy-duty protection without adding significant bulk or weight to the wire harness.
5.150% Expansion Ratio: Conforms easily to irregular shapes and large connectors.
6.Chemically Inert: Withstands prolonged exposure to gasoline, engine oil, and cleaning solvents.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-PET+PA-006-BK | 1/4” | 6 | 5 | 8 | 500 |
| BRS-PET+PA-008-BK | 5/ 16” | 8 | 6 | 12 | 350 |
| BRS-PET+PA-010-BK | 3/8” | 10 | 7 | 17 | 350 |

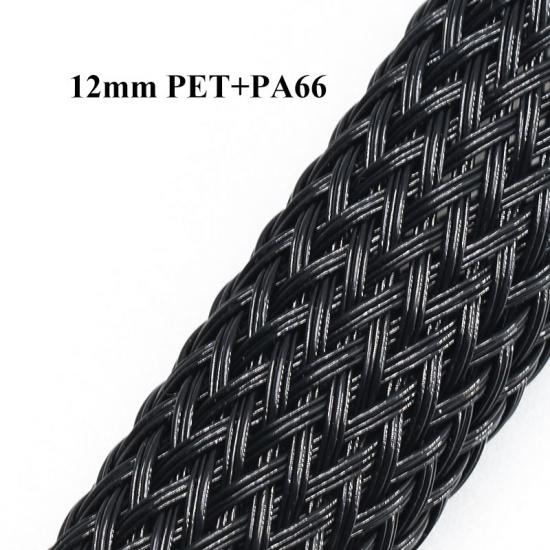

| BRS-PET+PA-012-BK | 1/2” | 12 | 8 | 20 | 300 |
| BRS-PET+PA-016-BK | 5/8” | 16 | 10 | 23 | 300 |
| BRS-PET+PA-020-BK | 3/4” | 20 | 13 | 26 | 200 |
| BRS-PET+PA-025-BK | 1” | 25 | 18 | 33 | 200 |
| BRS-PET+PA-032-BK | 1-1/4” | 32 | 20 | 50 | 150 |
| BRS-PET+PA-038-BK | 1-1/2” | 38 | 30 | 60 | 100 |
| BRS-PET+PA-045-BK | 1-3/4” | 45 | 35 | 75 | 100 |
| BRS-PET+PA-050-BK | 2” | 50 | 40 | 80 | 100 |
Application

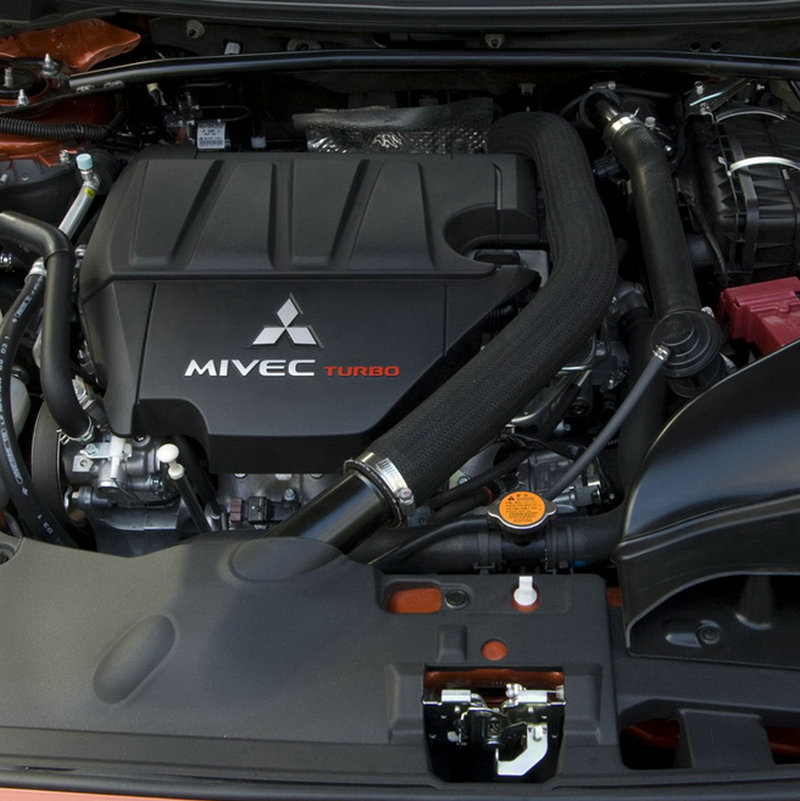

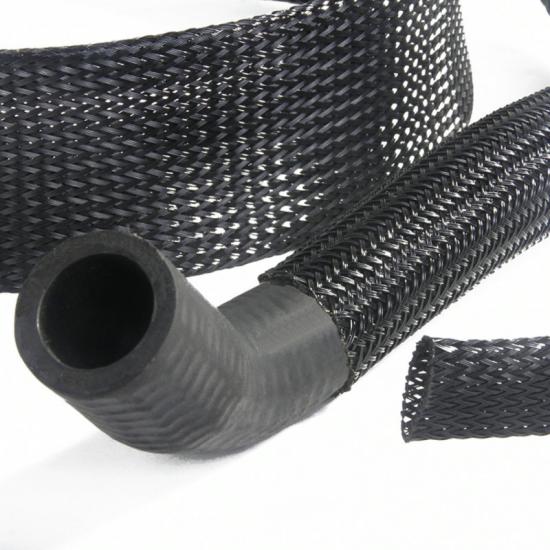

Nylon polyester expandable sleeve used to cover cables, wire harnesses, tubes, industrial hoses where need extremely anti-abrasion in automotive, railway and panel board field.
This braided sleeve is widely used across multiple industries:
-
Automotive wiring harnesses
-
Marine and aerospace cabling
-
Industrial machinery and robotics
-
Electronics and PCB protection
-
Home and office cable management
FAQ:
Q1: Why choose a nylon-polyester mix instead of PET only?
A: Nylon (PA66) provides much greater abrasion resistance than PET alone, making it more suitable for high-wear environments like engine bays or moving cable systems.
Q2: Can this sleeve handle sharp bends or corners?
A: Yes. The flexible woven structure allows it to conform smoothly to tight bends and uneven shapes.
Q3: Does it fray when cut?
A: If cut with scissors, yes. We recommend using a hot knife to seal the ends and prevent fraying.
Q4: Is this product fire-resistant?
A: Yes. It conforms to FMVSS 302 flammability standards with a combustion rate of less than 100mm/min.
Q5: Can I request customized sizes or packaging?
A: Absolutely. We offer custom diameters, colors, and roll lengths. Reach out to us with your specific requirements.
