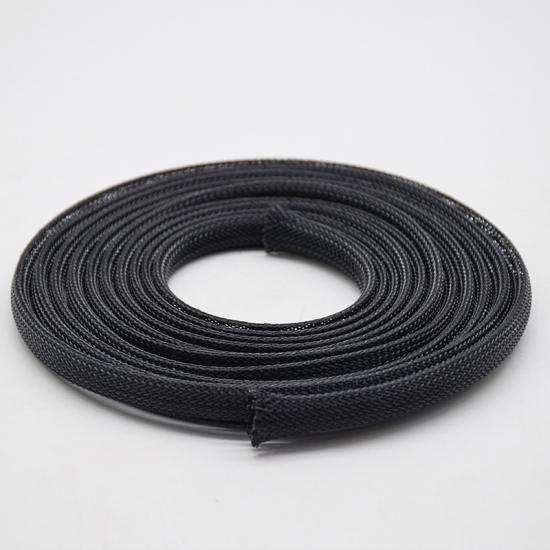

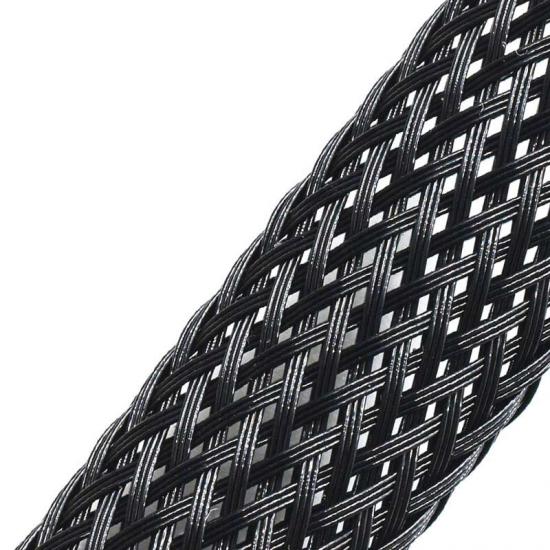

Black Clean Cut Fray Resistant Expandable Braided Sleeving
E-FLEX® No fray resistant expandable braided sleeving is consist of PET filaments and our knowledge of technical.NF braided sleeving with the same specifications as our PET sleeving with the unique advantage of being able to cut the material with ordinary scissors and still maintain an extraordinarily fray-resistant end without the addition of chemical binders or adhesives.
Certifications
Physical Properties
Physical Properties
Details
Material
Polyethylene Terephthalate(PET)
Monofilament Thickness
0.008"(0.20mm)
Working Temperature
-40°C ~ +150°C
Melt Point
240(±10)°C
Flammability
VW-1
Abrasion Resistance
Medium
Standard Color
Black
Rohs Compliant
Yes
Reach Compliant
Yes
Halogen Free
Yes
Cutting Tool
Scissor/Hot Knife
What's Special about Clean Cut Expandable Braided Sleeving?

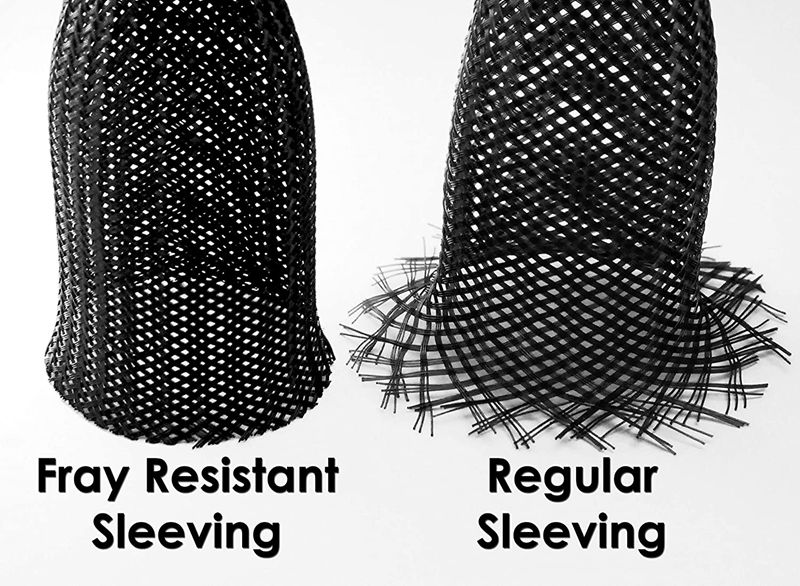

1.Fray Resistant – No Hot Knife Needed: Cut clean with scissors thanks to specialized weave; ideal for field use.
2.High Temperature Performance
3.Excellent Abrasion and Environmental Resistance: Durable braided PET resists oils, solvents, UV, and wear.
4.RoHS Compliant & Halogen-Free: Aligned with global environmental regulations.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-PET-003-BK-CC | 1/8” | 3 | 1 | 6 | 1000 |
| BRS-PET-006-BK-CC | 1/4” | 6 | 3 | 9 | 500 |
| BRS-PET-008-BK-CC | 5/ 16” | 8 | 5 | 12 | 350 |
| BRS-PET-010-BK-CC | 3/8” | 10 | 7 | 17 | 350 |

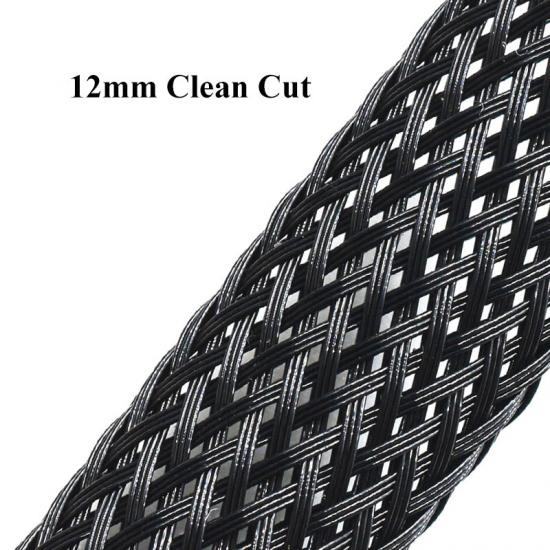

| BRS-PET-012-BK-CC | 1/2” | 12 | 8 | 20 | 300 |
| BRS-PET-016-BK-CC | 5/8” | 16 | 10 | 27 | 250 |
| BRS-PET-020-BK-CC | 3/4” | 20 | 14 | 30 | 200 |
| BRS-PET-025-BK-CC | 1” | 25 | 18 | 33 | 200 |
| BRS-PET-032-BK-CC | 1-1/4” | 32 | 20 | 50 | 150 |
| BRS-PET-038-BK-CC | 1-1/2” | 38 | 30 | 60 | 100 |
| BRS-PET-045-BK-CC | 1-3/4” | 45 | 35 | 75 | 100 |
| BRS-PET-050-BK-CC | 2” | 50 | 40 | 80 | 100 |
| BRS-PET-064-BK-CC | 2-1/2” | 64 | 45 | 105 | 50 |
| BRS-PET-076-BK-CC | 3” | 76 | 64 | 120 | 50 |
Application

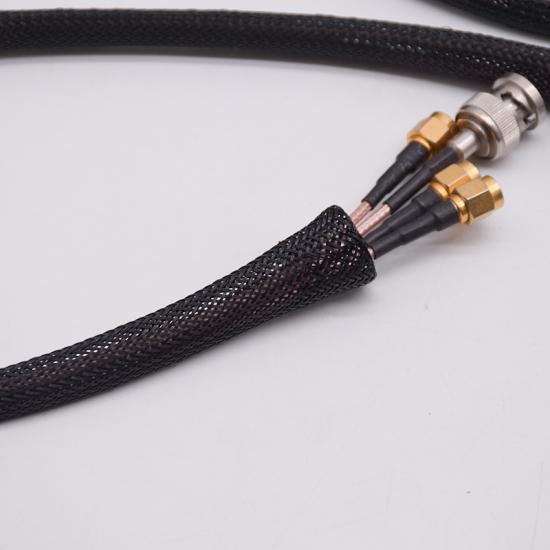

Clean cut fray resistant expandable braided sleeving is an innovative fray resistant coverings for wires,cables,and hose assemblies,,and now is widely used in portable oil drum to Keep people safe.
- Automotive engine bays and infotainment wiring
- Industrial machines & factory automation cables
- Aerospace harnesses, avionics wiring
- Data center & consumer electronics cable management
- Marine and rail vehicle cable protection
