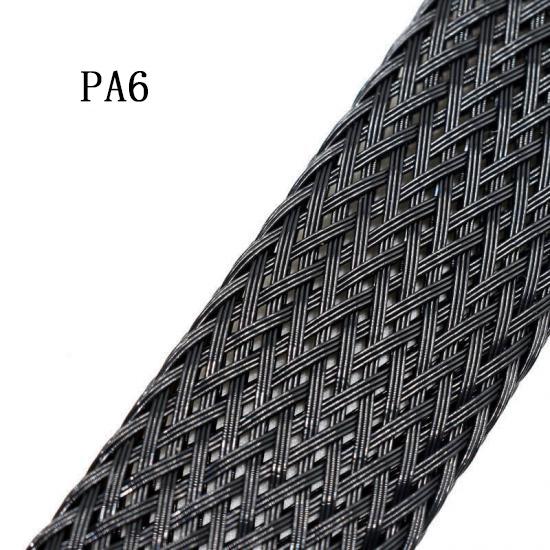

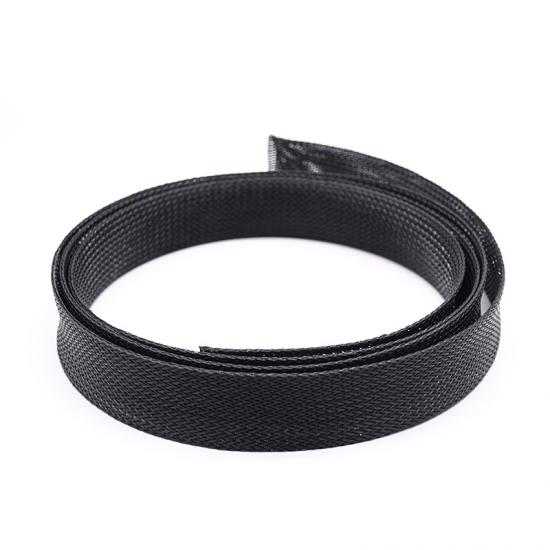

E-FLEX® Nylon Braided Cable Sleeving is engineered using high-quality nylon 6 monofilaments through precision weaving, combining flexibility and structural strength to effectively resist friction, scratches, and external impacts while prolonging internal wire service life. It provides oil resistance, weak acid-alkali resistance, and anti-aging properties, making it suitable for complex working conditions involving humidity, dust, and oil contamination. It is an ideal solution for protecting and organizing cables, wire harnesses, and pipelines across automotive, electrical and electronic, automation equipment, and rail transit applications.
Physical Properties
Physical Properties
Details
Material
Polyamide6
Working Temperature
-40℃~+125℃
Melt Point
220+(-10)°C
Flammability
FMVSS 302
Standard Color
Black
Certification
Rohs
Halogen Free
Yes
UV Resistant
Yes
Cutting Tool
Hot Knife

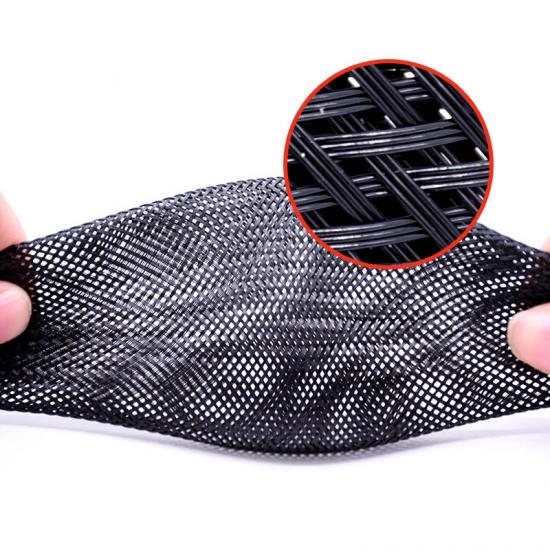

What's Special about Nylon Expandable Braided Cable Sleeving?
- Precision Weaving & Dual Performance: Manufactured from high-grade nylon 6 monofilaments, striking an optimal balance between exceptional flexibility and robust structural strength.
- Harsh Environment Defense: Offers reliable resistance against oil, weak acids, alkalis, and aging, performing reliably in humid, dusty, or oil-contaminated conditions.
- Engineered Reliability: Fully compliant with FMVSS 302 flammability standards and RoHS directives, backed by strict corporate drawing control and traceability.
Specification
Part No
Flat Width(W)
Expanded Range(mm)
Packing Length (m/spool)
Inch
mm
Min.(I)
Max.(O)
BRS-PA6-003-BK
1/8”
3
1
6
1000
BRS-PA6-006-BK
1/4”
6
3
9
500
BRS-PA6-008-BK
5/16”
8
5
12
350
BRS-PA6-010-BK
3/8”
10
7
17
350
BRS-PA6-012-BK
1/2”
12
8
20
350
BRS-PA6-014-BK
9/16”
14
9
24
350
BRS-PA6-016-BK
5/8”
16
10
27
250
BRS-PA6-018-BK
11/16”
18
12
29
250
BRS-PA6-020-BK
3/4”
20
14
30
200
BRS-PA6-025-BK
1”
25
18
33
200
BRS-PA6-032-BK
1-1/4”
32
20
50
150
BRS-PA6-038-BK
1-1/2”
38
30
60
100
BRS-PA6-045-BK
1-3/4”
45
35
75
100
BRS-PA6-050-BK
2”
50
40
80
100
BRS-PA6-064-BK
2-1/2”
64
45
105
50
BRS-PA6-076-BK
3”
76
64
120
50
Enhanced Applications
Designed for comprehensive protection and clean organization of cables, wire harnesses, and fluid/gas pipelines in demanding industries:
- Automotive Industry: Engine compartments, body wiring harnesses, and under-hood cable assemblies.
- Electrical & Electronic: Internal panel wiring, appliance cords, and complex electrical setups.
- Automation Equipment: Robotic control lines, moving machinery cables, and industrial control panels.
- Rail Transit: Rolling stock wiring, signaling cables, and transit infrastructure harnesses.
