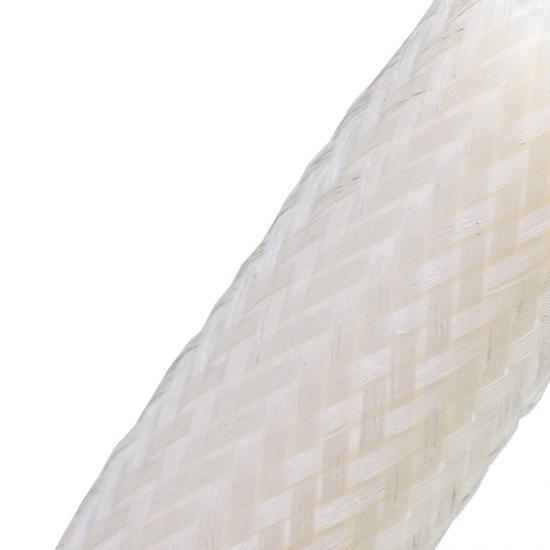

Super Soft Water Filtration Braided sleeving
The filter braided tube sleeve construction enhances strength, making the hose resistant to wear, pressure, and external forces. It can withstand rough handling and harsh environments without losing its structural integrity.
The open weave design increases water flow rates, ensuring efficient filtration. The water can pass through the hose faster than solid materials, preventing clogging and maintaining system performance.
The hose maintains flexibility, making it easier to install and route in various filtration systems. Its flexible nature allows it to be used in tight spaces or to fit into complex system configurations.
Certifications
Physical Properties
| Physical Properties | Details |
|
Material |
PET Monofilament |
| Working Temperature | -40℃~+150℃ |
| Melt Point | 240+(-10)°C |
| Low temperature resistance | No signs of embrittlement or degradation after test at -40°C for 4h |
| Heat aging resistance | No signs of embrittlement or degradation after test at 158°C for 168h |
| Flammability | VW-1,FMVSS302 |
| Abrasion Resistance | Medium |
| Standard Color | Black |
| Certification | Rohs, Reach |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |
What's Special about Super Soft Water Filtration Braided sleeving?
1.Ultra thin for specialized fiber applications
2.Economical, long lasting filtration solutions
3.Recommended cutting with hot knife
4.Open-Weave Design: Maximizes water flow and prevents clogging
5.Easy to engineer to unique specifications
6.Chemical Resistance: Compatible with detergents, sanitizers, and cleaning agents
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | |||
| BRS-PET-003-CR | 1/8” | 3 | 1 | 6 | 0.65±0.05 | 1000 |
| BRS-PET-006-CR | 1/4” | 6 | 3 | 9 | 0.65±0.05 | 500 |
| BRS-PET-008-CR | 5/ 16” | 8 | 5 | 12 | 0.65±0.05 | 350 |
| BRS-PET-010-CR | 3/8” | 10 | 7 | 17 | 0.65±0.05 | 350 |
| BRS-PET-012-CR | 1/2” | 12 | 8 | 20 | 0.65±0.05 | 300 |
| BRS-PET-016-CR | 5/8” | 16 | 10 | 27 | 0.65±0.05 | 250 |
| BRS-PET-020-CR | 3/4” | 20 | 14 | 30 | 0.65±0.05 | 200 |
| BRS-PET-025-CR | 1” | 25 | 18 | 33 | 0.65±0.05 | 200 |
| BRS-PET-032-CR | 1-1/4” | 32 | 20 | 50 | 0.65±0.05 | 150 |
| BRS-PET-038-CR | 1-1/2” | 38 | 30 | 60 | 0.65±0.05 | 100 |
| BRS-PET-045-CR | 1-3/4” | 45 | 35 | 75 | 0.65±0.05 | 100 |
| BRS-PET-050-CR | 2” | 50 | 40 | 80 | 0.65±0.05 | 100 |
| BRS-PET-064-CR | 2-1/2” | 64 | 45 | 105 | 0.65±0.05 | 50 |
| BRS-PET-076-CR | 3” | 76 | 64 | 120 | 0.65±0.05 | 50 |
Application
Water filtration braided sleeving can be used in a variety of water filtration systems, including reverse osmosis units, industrial water treatment plants, and domestic water filtration setups.
- Water filtration systems (dispensers, RO systems, purification units)
- Pharmaceutical equipment requiring sanitary, transparent protection
- Fiber-optic filter assemblies and precision devices
- Industrial water handling & coolant circuits
