PET Overexpanded Braided Cable Sleeve

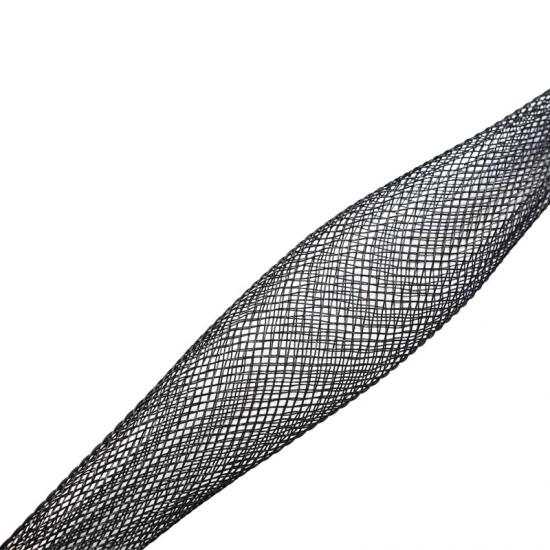

E-FLEX® PET Overexpanded Braided Sleeving features a premier 4:1 expansion ratio, engineered to slide effortlessly over large connectors and complex Y-branches. This lightweight, open-weave construction provides an exceptional balance of extreme flexibility and thermal protection, ensuring rapid installation in space-constrained environments like robotics and server rooms.
Compliant with RoHS and REACH standards, this flame-retardant (VW-1) solution offers robust resistance to chemicals and UV degradation. Its unique design not only facilitates easy visual inspection of internal cables but also promotes superior heat dissipation, making it the ideal choice for high-density industrial wire management.
Certifications & Compliance
Physical Properties
| Physical Properties | Details |
| Material | PET Monofilament |
| Expansion Ratio | Up to 400% |
| Working Temperature | -40°C ~ +150°C |
| Melt Point | 240(±)10°C |
| Flammability | UL94 V2 |
| Abrasion Resistance | Medium |
| Standard Color | Black |
| ROHS Compliant | Yes |
| Reach Compliant | Yes |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |
What's Special about PET Overexpanded Braided Cable Sleeve?
- Ultra-Flexible & Lightweight: Minimal weight addition with superior bend radius for dynamic applications.

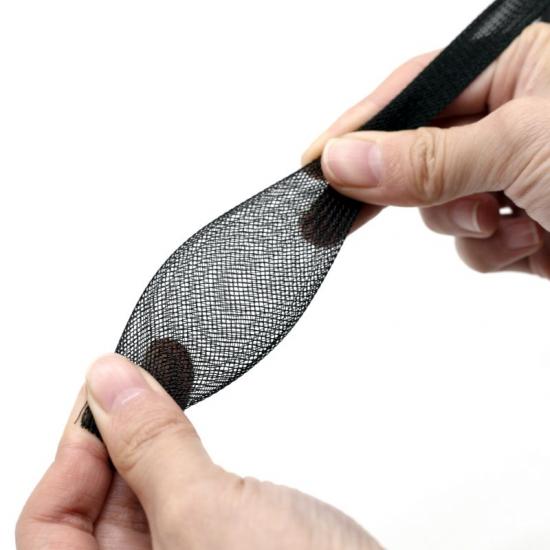

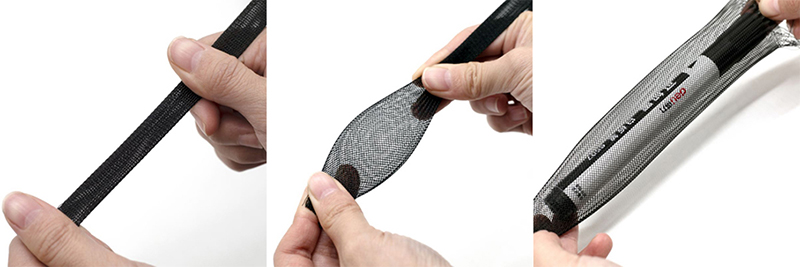

- High Expansion Ratio: Effortlessly adapts to large connectors and complex branched harnesses.
- Engineered Durability: Resists common industrial chemicals, solvents, and UV degradation (RoHS/REACH compliant).
- Clean Installation: Fray-resistant finish when processed with a hot knife, ensuring a professional end-treatment.
- Thermal Stability: Reliable performance in high-temperature environments (up to 150°C).

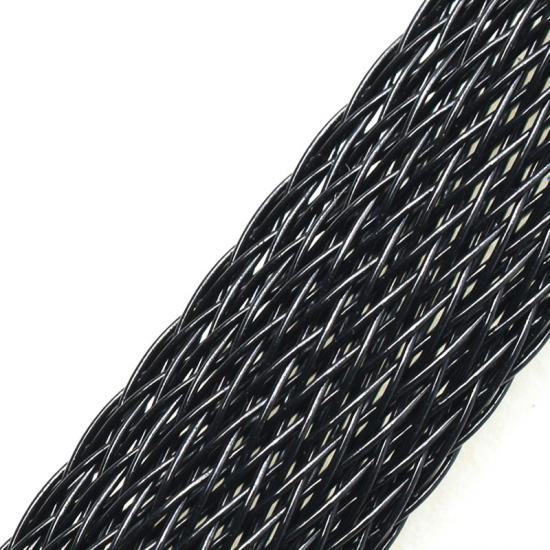

- Operational Efficiency: Open-braid construction facilitates heat dissipation and rapid visual inspection of internal components.
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |

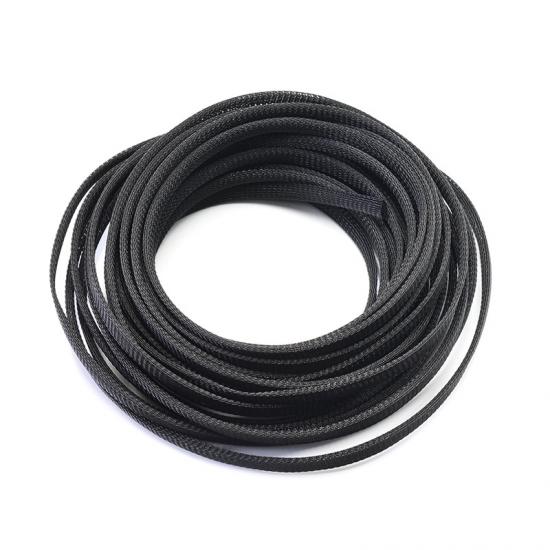

Packing Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-PET-006-BK-OE | 1/4" | 6 | 3 | 12 | 500 |
| BRS-PET-006-BK-OE | 5/16" | 8 | 6 | 22 | 500 |
| BRS-PET-010-BK-OE | 3/8" | 10 | 5 | 25 | 350 |
| BRS-PET-012-BK-OE | 1/2" | 12 | 11 | 35 | 300 |
| BRS-PET-012-BK-OE | 3/4" | 19 | 12 | 45 | 200 |
Application

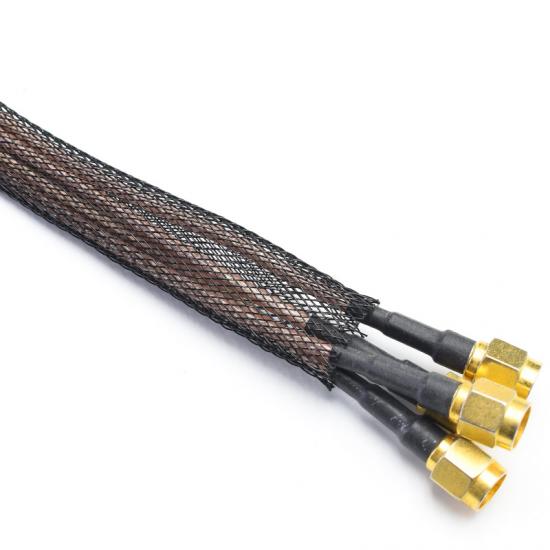

Overexpanded braided sleeving has many uses, the created to provide a fast and easy solution for automotive and marine wiring, flexo overexpanded easing installation over large plugs and connectors.
- Automotive wiring harnesses with split or Y-branches
- Electrical panels and switchgear
- Robotics and automation cables
- Telecom and server room cable management
- Household appliances and industrial electronics
