Why PPS split cable sleever for Your Application
Compared with standard braided cable sleeving, PPS wrap around sleeve provides significantly better performance in high temperature and chemical exposure environments.It is especially suitable for underbody harnesses in transit buses, where cables are exposed to engine heat, oil, and road debris.

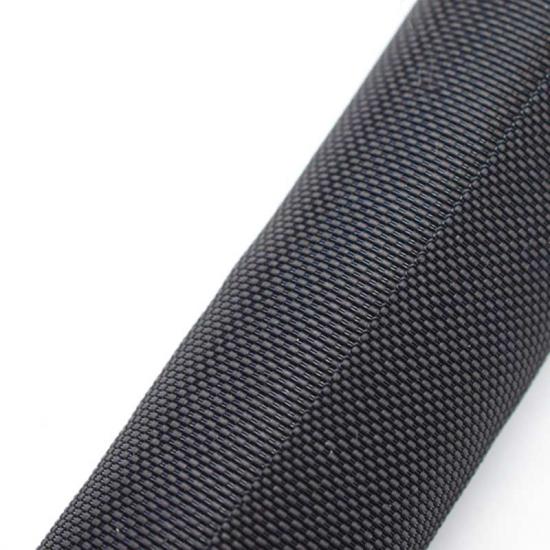

What's the Special of PPS Woven Wrap Around Sleeving
1.High Temperature Resistance
- Continuous working temperature: -70°C~200°C
- Short-term peak: up to 260~280°C
- Melt Point: 285+(-)10℃
- Oil / Fuel
- Acid & Alkali
- Solvents
- Fluids
- Strong resistance to friction and wear
- Suitable for underbody & harsh environments
4.Water & Moisture Resistance
- Low moisture absorption
- Stable performance in wet conditions
- Easy installation without disconnecting wires
- Ideal for maintenance and retrofit applications
- Inherent flame-resistant PPS material
- Suitable for transportation applications
Physical & Technical Parameters
|
Material |
PPS (Polyphenylene Sulfide) |
|
Working Temperature |
-70°C to +200°C |
|
Peak Temperature |
260~280°C |
|
Melt Point |
285+(-)10°C |
|
Overlap |
≧35% |
|
Flammability |
Inherent flame retardant |
|
Chemical Resistance |
Excellent |
|
Fluids Resistance |
Excellent |
|
Oil Resistance |
Yes |
|
Solvents Resistance |
Yes |
|
Acid & alkali Resistant |
Yes |
|
Water Absorption |
Very Low |
|
Standard Color |
Black |
|
Rohs Compliant |
Yes |
|
Reach Compliant |
Yes |
|
Halogen Free |
Yes |
|
UV Resistance |
Yes |
|
Cutting Tool |
Hot Knife |
Specification
| Part No |
Size
(mm)
|
Spread
Width
(mm)
|
Bundle Dia Range(mm) |
Packing
Length
(m/spool)
|
|
| Min | Max | ||||
| STW-PPS-003-BK | Φ3 | 25±2 | 2 | 4 | 100 |
| STW-PPS-005-BK | Φ5 | 29±2 | 4 | 6 | 100 |
| STW-PPS-008-BK | Φ8 | 46±2 | 6 | 10 | 100 |
| STW-PPS-010-BK | Φ10 | 55±2 | 8 | 11 | 100 |
| STW-PPS-013-BK | Φ13 | 65±2 | 12 | 15 | 100 |
| STW-PPS-016-BK | Φ16 | 77±2 | 15 | 18 | 100 |
| STW-PPS-019-BK | Φ19 | 104±5 | 18 | 20 | 50 |
| STW-PPS-025-BK | Φ25 | 125±5 | 23 | 26 | 25 |
| STW-PPS-029-BK | Φ29 | 145±5 | 27 | 31 | 25 |
| STW-PPS-032-BK | Φ32 | 164±5 | 30 | 34 | 25 |
| STW-PPS-038-BK | Φ38 | 183±5 | 37 | 40 | 25 |
| STW-PPS-050-BK | Φ50 | 243±8 | 48 | 52 | 25 |
Applications
1.Automotive & Transportation
- Underbody harness protection
- Engine compartment wiring
- Electric vehicle cable protection
- Transit bus harness systems
- Areas exposed to:
- Heat
- Oil & fluids
- Road debris
- Automation equipment
- Robotics cable protection
- Heavy machinery wiring
- Power cable protection
- Outdoor wiring systems
