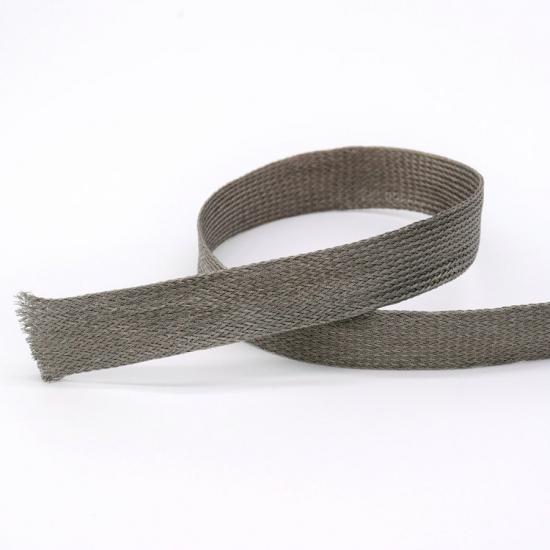

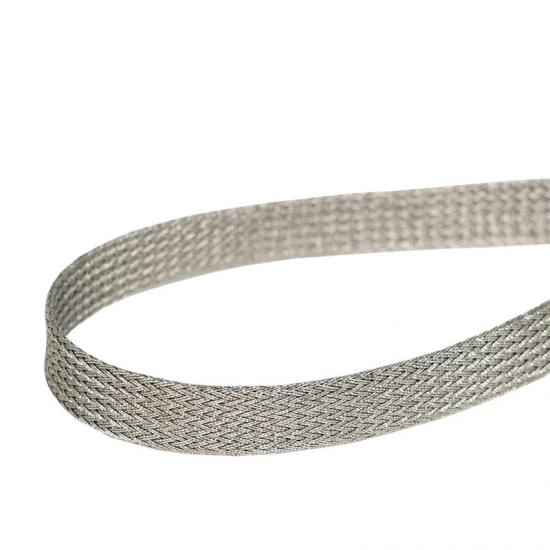

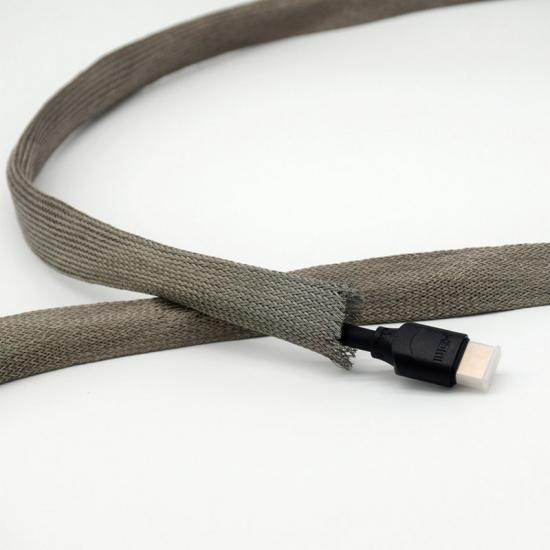

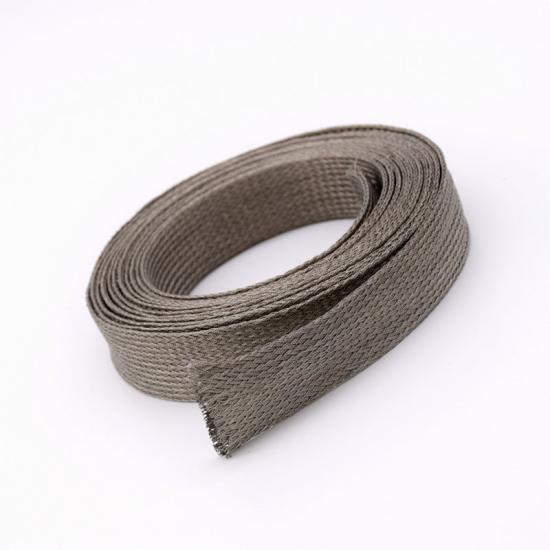

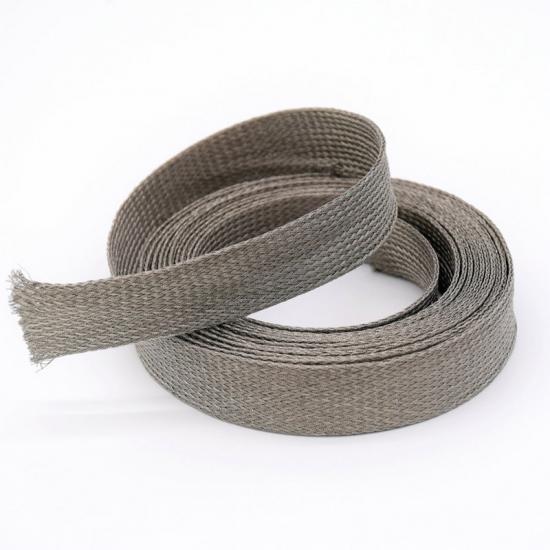

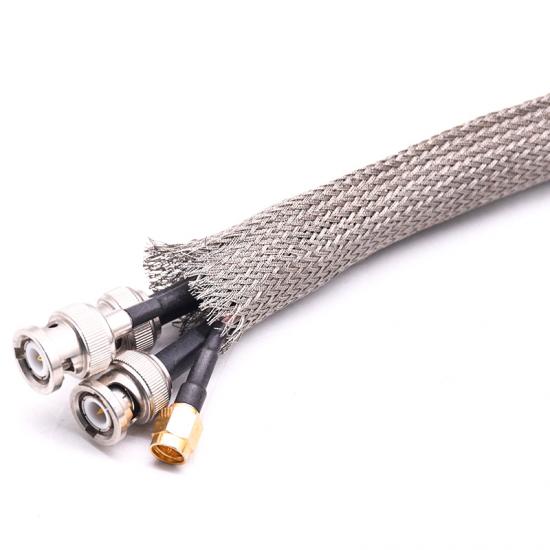

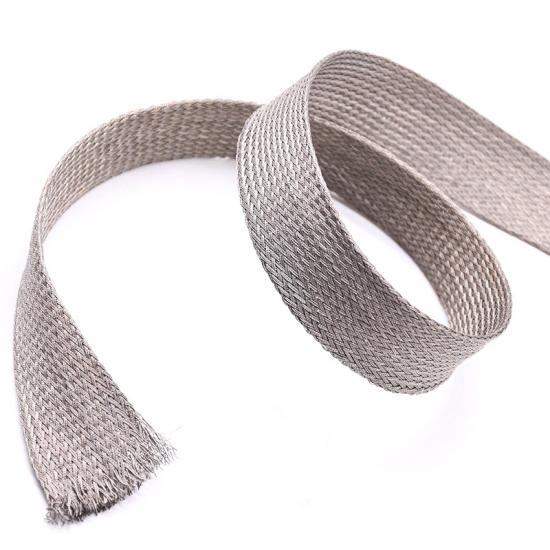

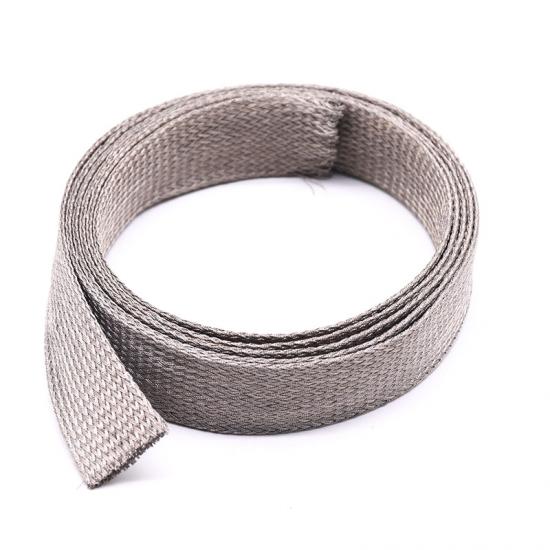

Copper Foil Metal Shield Expandable Braided Sleeving
E-FLEX® Copper Foil Metal Shield Braided Sleeving utilizes advanced tinned copper foil technology to deliver a professional-grade EMI shield. By weaving flat foil strips with resilient nylon fibers, the MBS-CF series achieves a unique balance of mechanical flexibility and electrical performance. It effectively blocks electromagnetic interference and radio frequency noise while remaining easy to install over complex cable assemblies. Its self-extinguishing properties and compliance with RoHS/REACH standards make it a safe and reliable choice for demanding industrial electronics.
What's Special about Copper Foil Braided Sleeving?
- Superior Shielding: Dense copper foil structure provides better EMI/RFI attenuation than standard wire braids.
- Lightweight & Flexible: The foil-and-nylon blend reduces overall cable weight while maintaining a high bend radius.
- Enhanced Coverage: The flat profile of the copper foil strips ensures maximum surface area contact and shielding density.
- Thermal Resilience: Reliable operation across a wide temperature range of -40°C to +125°C.
- Easy Maintenance: Can be easily cut with standard scissors, simplifying on-site installation and repairs.
Physical Properties
| Material | Tinned Copper Foil & Nylon Multifilament |
| Working Temperature |
-40℃ to 125℃ |
|
Flammability |
Self-extinguishing |
| Standard Color | Tinned Copper |
|
Rohs Compliant |
Yes |
| Reach Compliant | Yes |
| Cutting Tool | Scissor |
Specification
Part No
Flat Width(W)
Expanded Range(mm)
Packing Length
(m/spool)
Inch
mm
Min.(I)
Max.(O)
MBS-CF-004-TC
1/8”
4
3
7
250
MBS-CF-006-TC
1/4”
6
4
9
200
MBS-CF-008-TC
5/ 16”
8
6
12
150
MBS-CF-010-TC
3/8”
10
7
16
150
MBS-CF-012-TC
1/2”
12
8
20
150
MBS-CF-015-TC
5/8”
15
10
23
100
MBS-CF-020-TC
3/4”
20
13
28
50
MBS-CF-025-TC
1”
25
18
32
50
MBS-CF-030-TC
1-1/4”
30
20
40
50
MBS-CF-040-TC
1-1/2”
40
30
50
25
MBS-CF-050-TC
2”
50
40
60
25
Application
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing Length (m/spool) |
||
| Inch | mm | Min.(I) | Max.(O) | ||
| MBS-CF-004-TC | 1/8” | 4 | 3 | 7 | 250 |
| MBS-CF-006-TC | 1/4” | 6 | 4 | 9 | 200 |
| MBS-CF-008-TC | 5/ 16” | 8 | 6 | 12 | 150 |
| MBS-CF-010-TC | 3/8” | 10 | 7 | 16 | 150 |
| MBS-CF-012-TC | 1/2” | 12 | 8 | 20 | 150 |
| MBS-CF-015-TC | 5/8” | 15 | 10 | 23 | 100 |
| MBS-CF-020-TC | 3/4” | 20 | 13 | 28 | 50 |
| MBS-CF-025-TC | 1” | 25 | 18 | 32 | 50 |
| MBS-CF-030-TC | 1-1/4” | 30 | 20 | 40 | 50 |
| MBS-CF-040-TC | 1-1/2” | 40 | 30 | 50 | 25 |
| MBS-CF-050-TC | 2” | 50 | 40 | 60 | 25 |
- Railway & Transportation: Protecting sensitive signaling cables from external electrical noise.
- Military & Aerospace: High-reliability EMI shielding for mission-critical communications and avionics.
- New Energy Systems: Grounding and shielding for EV (Electric Vehicle) power systems and charging infrastructures.
- Industrial Electronics: Ensuring signal integrity in automated factory equipment and high-frequency controllers.
