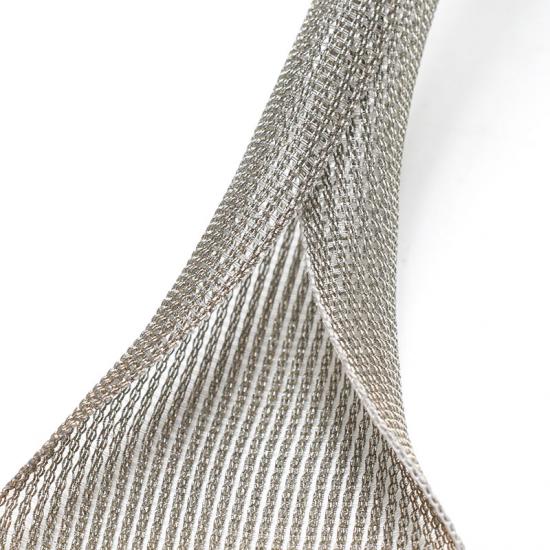

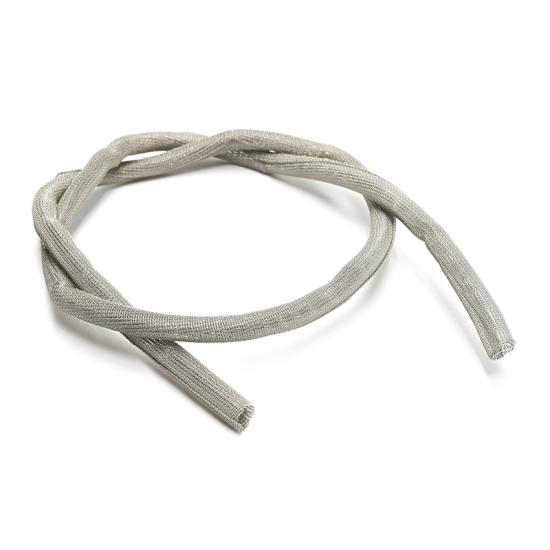

Tinned Copper Split Metal Emi Cable Shielding Sleeve
Our Tinned Copper Split Metal EMI Cable Shielding Sleeve is a high-performance, self-wrapping electromagnetic shielding sleeve. Woven from tinned copper foil yarn (with a high-strength aramid core) and flame-retardant PPS monofilament, its unique split structure allows for rapid installation and easy maintenance without the need to disconnect existing connectors or wire bundles. It is specifically engineered for environments requiring superior Protection against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI).
Physical Properties
Material
Tinned Copper Foil Yarn (Aramid Core) + PPS Monofilament
Working Temperature
-40℃ ~ +150℃
Melt Point
240 ± 10℃
Overlap
≧35%
Flammability
EN45545-2 R22/R23 HL3, UL94 V0
Shielding Efficiency
GB/T 30142-2013
Standard Color
Silver
Rohs Compliant
Yes
Reach Compliant
Yes
What's Special about Copper Foil Braided Sleeving?
- Excellent Shielding Efficiency: The tinned copper foil provides superior EMI/RFI suppression, protecting sensitive signals from external noise.

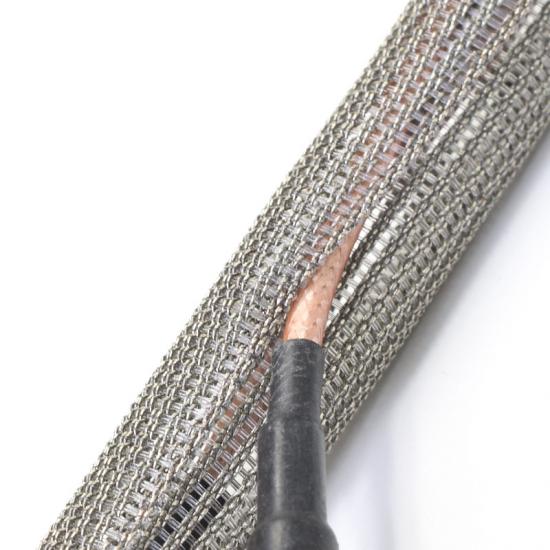

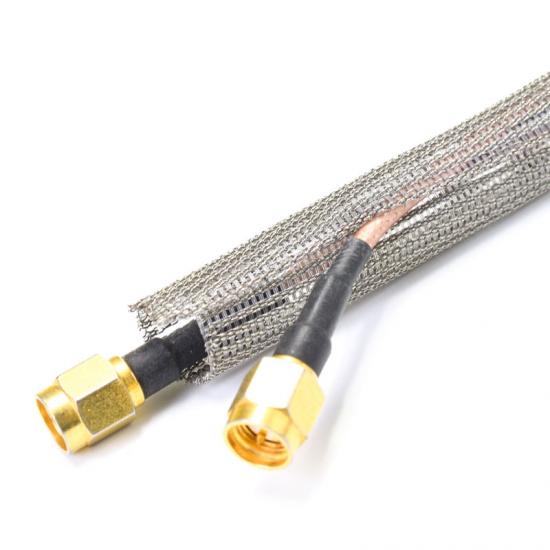

- Quick & Easy Installation: The self-wrapping design enables "retrofit" application, significantly reducing labor hours during OEM assembly or field repairs.
- Wide Temperature Resilience: Operates reliably from -40°C to +150°C with a high melting point of 240°C, ideal for extreme industrial and automotive engine bay environments.
- Advanced Mechanical Protection: PPS monofilament offers excellent abrasion resistance and high chemical stability against oils and fuels.
- Lightweight Shielding: Offers a significant weight advantage over traditional metal braid stockings while maintaining high-level shielding integrity.
Specification
| Part No | ID (mm) | OD (mm) | Spread Width (mm) | Packing Length (m/spool) |
| MBS-TC-006-SV-FR-S | 6±2 | 8±2 | 29±3 | 100 |
| MBS-TC-008-SV-FR-S | 8±2 | 10±2 | 40±5 | 100 |
| MBS-TC-010-SV-FR-S | 10±2 | 12±2 | 50±5 | 100 |
| MBS-TC-013-SV-FR-S | 13±2 | 15±2 | 63±5 | 100 |
| MBS-TC-016-SV-FR-S | 16±2 | 18±2 | 77±5 | 50 |
| MBS-TC-019-SV-FR-S | 19±2 | 21±2 | 93±5 | 25 |
| MBS-TC-025-SV-FR-S | 25±2 | 27±2 | 122±5 | 25 |
| MBS-TC-032-SV-FR-S | 32±2 | 34±2 | 156±5 | 25 |
| MBS-TC-038-SV-FR-S | 38±2 | 40±2 | 185±5 | 25 |
Thanks to its specialized certifications and physical durability, this sleeve is the preferred choice for:
Railway Systems: Complies with EN45545 for internal communication lines and power distribution in rolling stock.
Automotive Industry: Ideal for high-voltage wire harnesses in Electric Vehicles (EV/HEV) requiring EMI management.
Industrial Automation: Protects control cables in robotics and precision CNC machinery from signal interference.
Telecommunications: Used in base stations and high-frequency data centers for fiber optic and copper line protection.
Defense & Aerospace: Provides lightweight EMI shielding for critical electronics in harsh electromagnetic environments.
