Emi Wire Shielding Sleeve With Zipper

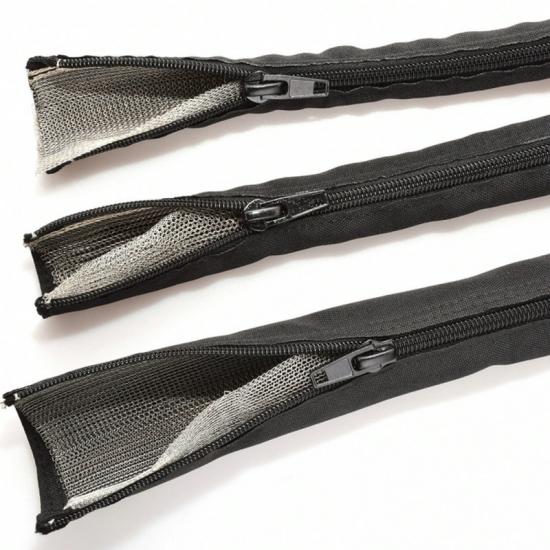

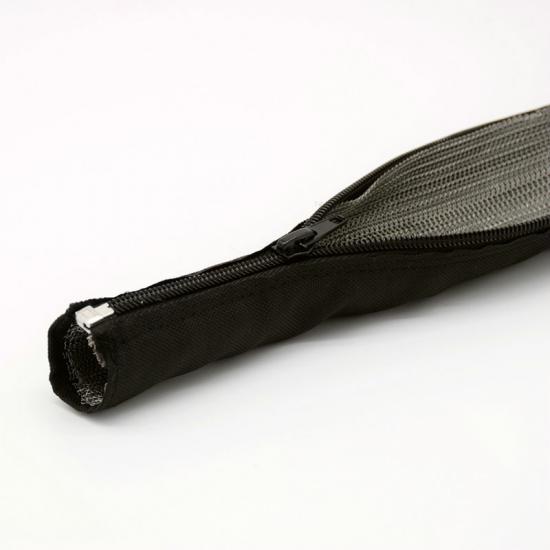

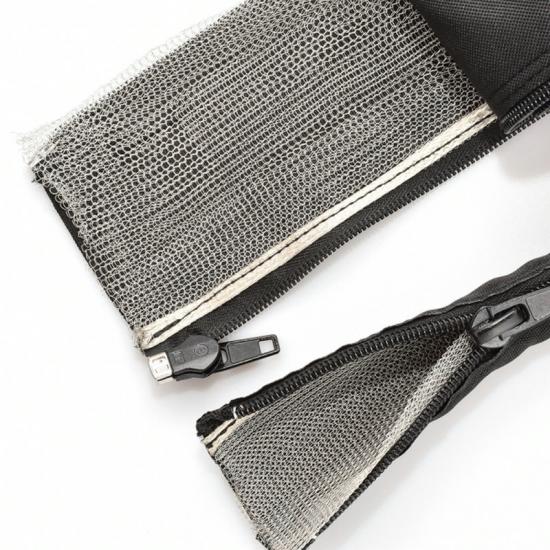

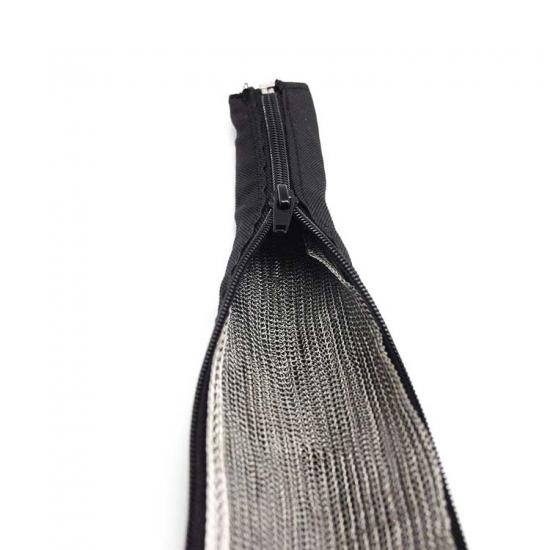

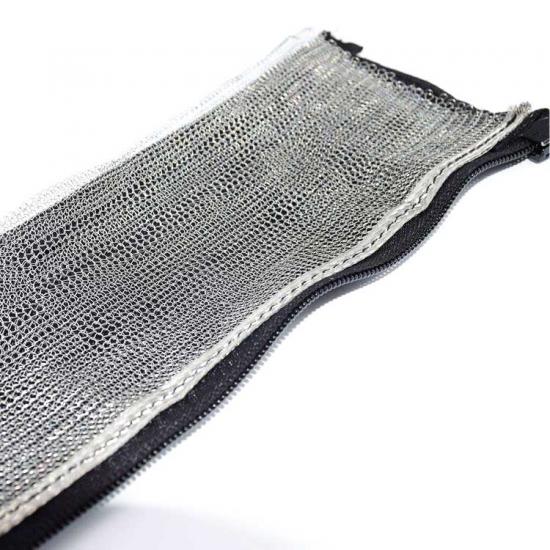

Zipper EMI shielding sleeves is made of tinned copper mesh,flame retardant polyester fabric with top grade nylon zipper.
This style Emi wire shielding sleeve characteristics of shielding high sensitive electromagnetic interference, noise-reduction, Dust proof and abrasion resistance.With the zipper design, It's easy for installation and removal.
Specification
Part No
ID (I)mm
Width of cloth W2 mm
Width of crochetin g mesh W1 mm
Structure of tinned copper sleeve
Max.bundle diameter mm
Package (L)
ZEW-PZP-015
15
65
75
2470.12 - 7
45945
50M/R
ZEW-PZP-030
30
110
130
2470.12 - 7
21 - 30
50M/R
ZEW-PZP-050
50
160
185
2470.12 - 7
41 - 50
50M/R
What's the special of this shield sleeve?
- Flame Retardant, Mil-spec jacket
- Easy to install zipper closure
- Excellent Low Frequency EMI Shielding (500 KHz to 1 GHz)
- High Performance
- High flexibility applications
Physical properties
| Wrap material | Polyester Multifilament |
| Zipper | Nylon |
| Working temoerature |
-40℃ to 125℃ |
| Melt point |
240±10℃ |
| Standard color | Black |
| Flammability |
DIN5510 |
| Size | Custom size |
Specification
| Part No |
Size ID(mm) |
Max Bundle Dia (mm) |
Packing Length (m/spool) |
| ZEW-PZP-016-BK | 16mm | 10~16mm |
Customized length |
| ZEW-PZP-020-BK | 20mm | 17~20mm |
Customized length |
| ZEW-PZP-030-BK | 30mm | 21~30mm |
Customized length |
| ZEW-PZP-050-BK | 50mm | 31~50mm |
Customized lengt h |
Application

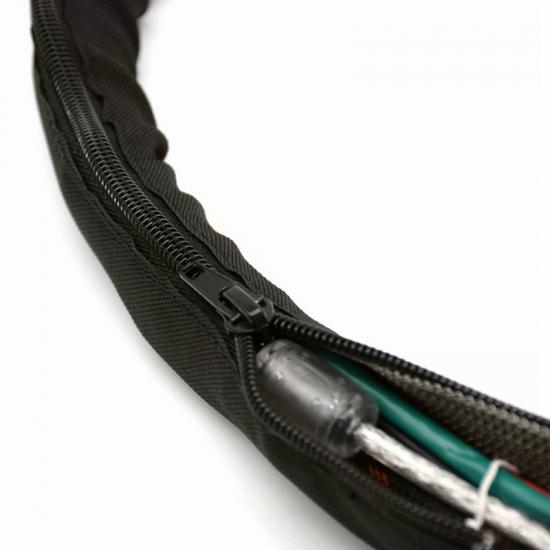

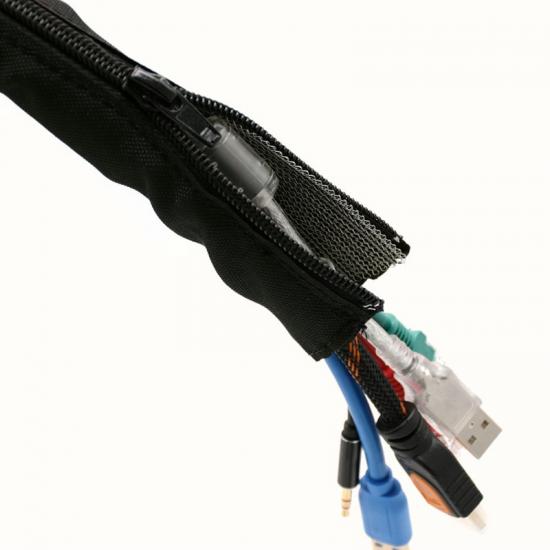

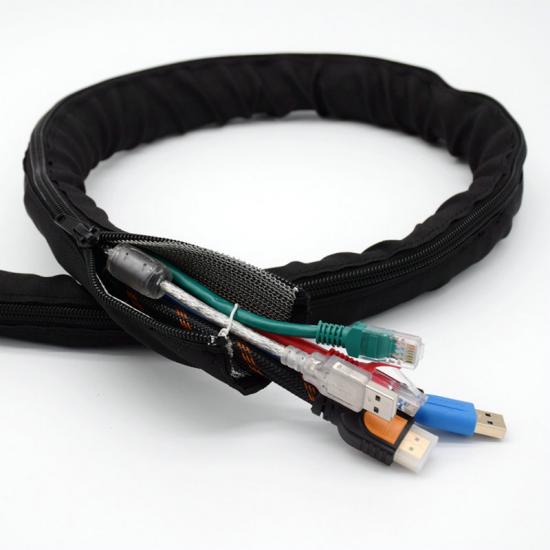

Zipper shielding wrap is a convenient and efficient method of providing EMI/EMP protection to harnesses and wire bundles,mostly used in railway, automotive, aerospace, communication, machinery, medical equipment,electronic industrial etc.
