High-Performance PET & Tinned Copper Cable Braided Shielding Sleeve

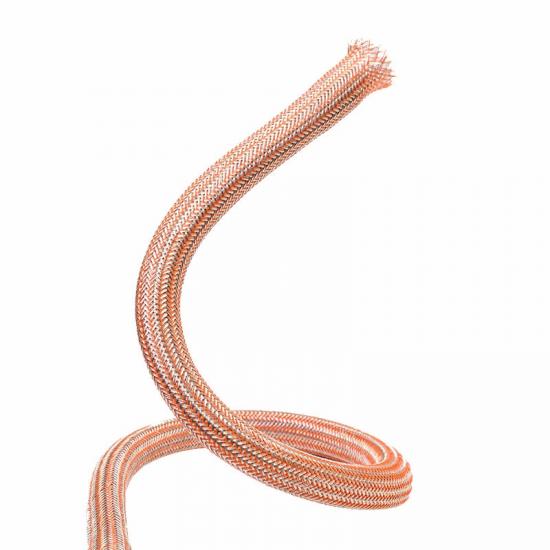

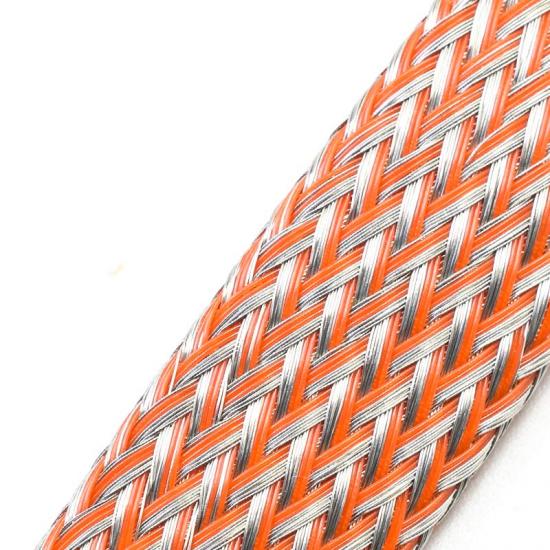

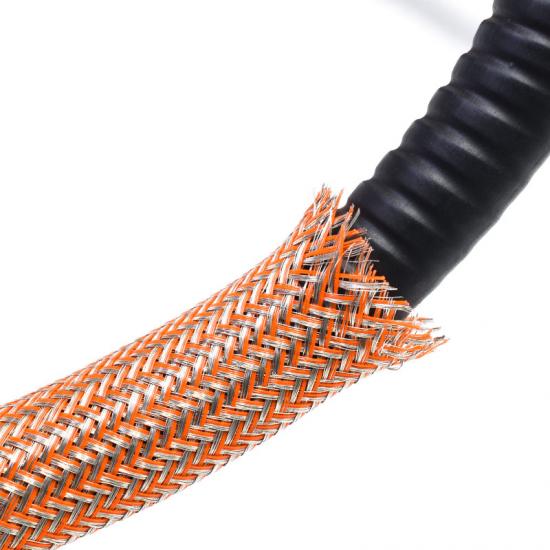

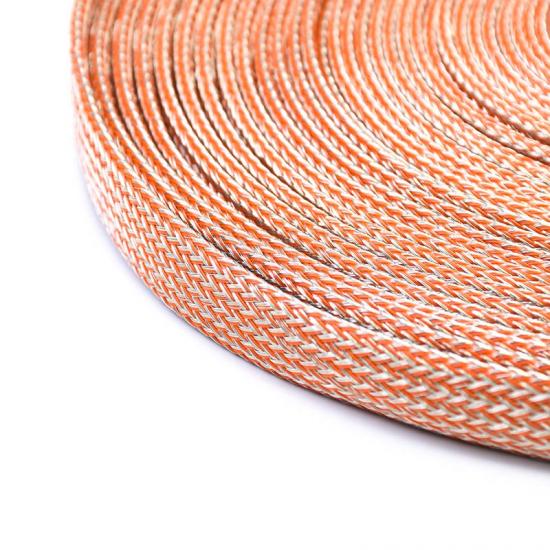

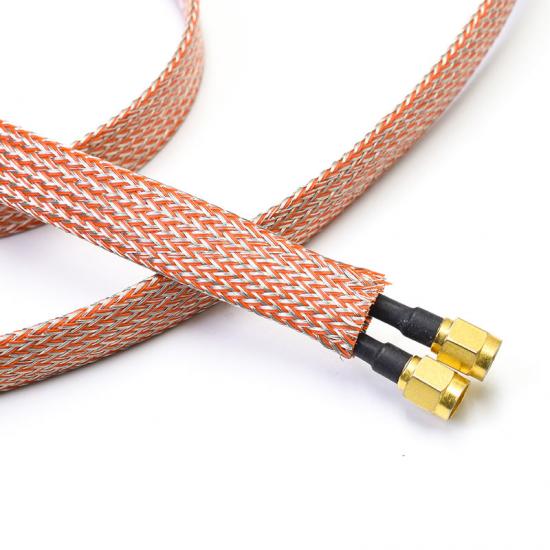

E-FLEX® Electromagnetic Braided Shielding Sleeving is a flexible electromagnetic protective sleeve designed for modern high-density wiring systems. By weaving sturdy 0.25mm PET monofilaments with conductive 0.12mm tin-plated copper wires, this sleeve provides a dual-function barrier: mechanical shielding against wear and electrical shielding against EMI. Its expandable design allows for easy installation over large connectors and irregular cable bundles, while its wide temperature range (-50°C to +150°C) guarantees performance in the most demanding environments.
What's Special about PET & Tinned Copper Cable Braided Shielding Sleeve?
- Dynamic Flexibility: Exceptional expandability makes it ideal for wire harnesses that require constant bending or movement.
- Certified EMI Performance: Provides high-level shielding (≥ 60dB, 30MHz to 1GHz) per GB30142-2013 standards.
- High-Temperature Resilience: Withstands extreme heat up to +150°C and features a high melting point (240°C).
- Abrasion & Flame Resistance: Rated VW-1 for flammability and reinforced with thick PET for mechanical durability.
- User-Friendly Installation: Lightweight and easy to cut with standard scissors; available in distinctive silver/orange for easy identification.
Physical Properties
| Physical Properties | Details |
| Material | Polyester (PET), Tin-plated copper |
| Monofilament Thickness | PET - 0.25mm; Tinned Copper - 0.12mm |
| Working Temperature | -50℃ to +105℃ |
| Melt Point | 240(±10)℃ |
| Flammability | VW-1 |
| EMI Performance | ≥60dB (30 MHz to1GHz; According to GB 30142 - 2013) |
| ROHS Compliant | Yes |
| Reach Compliant | Yes |
| Standard Color | Silver/Orange |
| Cutting Tool | Scissor |
Specification
Part No
Range of Use(mm)
Min(I)
Max(O)
MBS-PTC-008-OR/SV
8
5
10
+/-3.0
150
MBS-PTC-010-OR/SV
10
7
12
+/-3.0
150
MBS-PTC-012-OR/SV
12
8
16
+/-3.0
150
MBS-PTC-015-OR/SV
15
10
20
+/-3.0
50
MBS-PTC-018-OR/SV
18
12
25
+/-4.0
50
MBS-PTC-020-OR/SV
20
14
30
+/-4.0
50
MBS-PTC-022-OR/SV
22
16
36
+/-4.0
50
MBS-PTC-025-OR/SV
25
20
40
+/-4.0
50
MBS-PTC-030-OR/SV
30
20
50
+/-4.0
30
MBS-PTC-038-OR/SV
38
26
65
+/-5.0
30
MBS-PTC-045-OR/SV
45
30
79
+/-6.0
30
MBS-PTC-050-OR/SV
50
33
85
+/-8.0
30
MBS-PTC-060-OR/SV
60
40
95
+/-8.0
30
Application
· Automotive: Used to protect wiring and cables in vehicles from vibration, wear, and EMI.
· Industrial: Protects cables in machinery and equipment from abrasion and EMI.
· Consumer Electronics: Shields cables in devices like computers, televisions, and audio systems to prevent signal interference.
· Aerospace and Military: Provides critical protection for wiring in extreme environments, offering both electrical shielding and mechanical durability.
