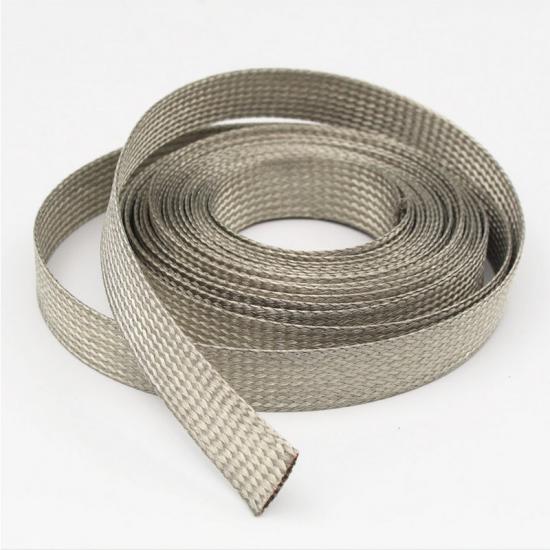

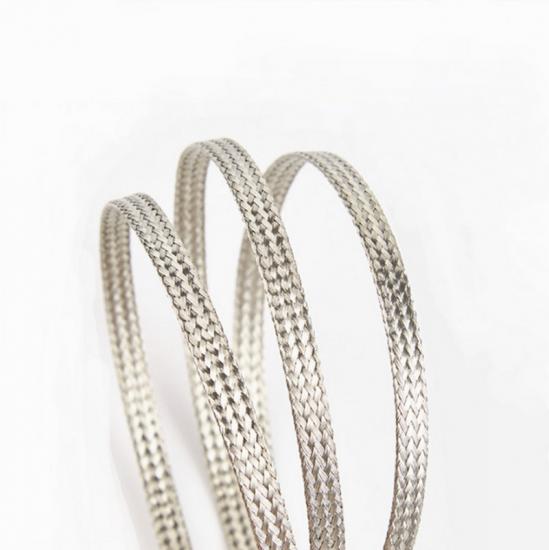

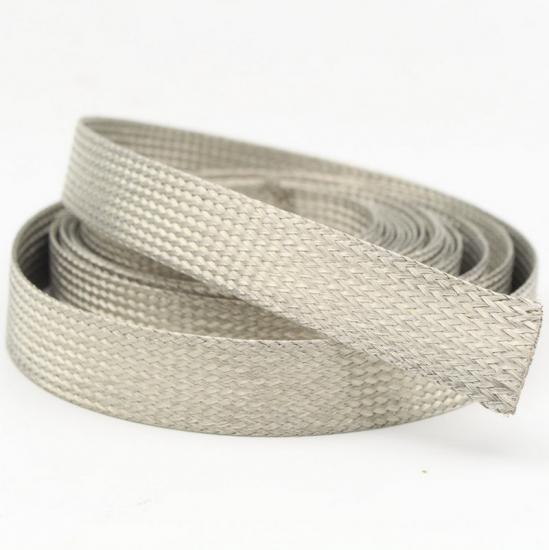

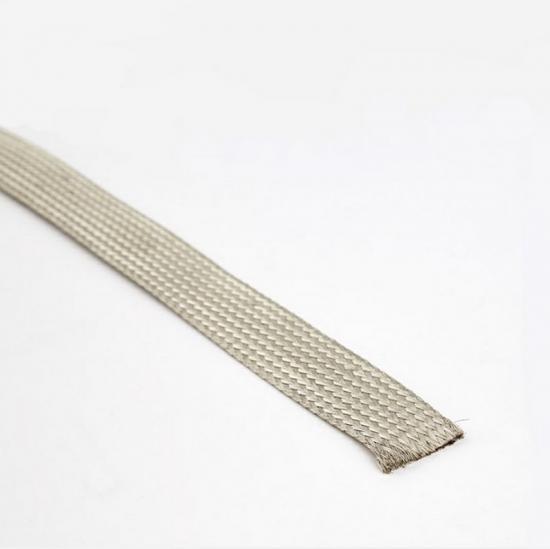

E-FLEX® Metal EMI Braided Cable Sleeve is designed to provide professional-grade EMI/RFI shielding while maintaining mechanical flexibility. By integrating tinned copper monofilaments with soft nylon fibers, this sleeving creates a dense conductive matrix that shields sensitive signals from external noise. The tin-plated surface not only prevents oxidation but also facilitates easy soldering and termination. Capable of withstanding temperatures up to +150°C, it provides long-lasting protection for mission-critical wiring harnesses in demanding industrial and telecommunication infrastructures.
Metal Shielding Braided Wire Sleeve is suitable for use in shielding electric cable from abrasion and radio frequency interference, it provides full coverage and is great for covering and protecting hoses on hot rods and motorcycles.
Physical Properties
Physical Properties
Details
Material
Tinned Copper Wire & Nylon Multifilament
Working Temperature
-40°C ~ +150°C
Flammability
Self-extinguishing
ShieldingEffectiveness
≥75 dB (30 MHz-3GHz) per GB/T 30142-2013.
Standard Color
Tin-plated Copper
Rohs Compliant
Yes
Reach Compliant
Yes
Cutting Tool
Scissor
What's Special about the EMI Tinned Copper Braided Sleeving?
- Exceptional Shielding Efficiency: Achieves ≥ 75dB (30MHz - 3GHz) effectiveness, ensuring signal purity in complex RF environments.
- Advanced Corrosion Protection: High-quality tin plating resists oxidation and humidity, extending the service life in marine or tropical climates.
- Superior Flexibility: The hybrid braid construction allows the sleeve to expand and conform to irregular shapes and tight bends.
- Broad Temperature Range: Reliable performance from -40°C to a high of +150°C.
- Safe & Compliant: Self-extinguishing material that fully meets RoHS and REACH environmental standards.
Specification
Part No
Flat Width(W)
Expanded Range(mm)
Packing Length (m/spool)
Inch
mm
Min.(I)
Max.(O)
MBS-TC-003-TC
1/8"
3±1
1
4
250
MBS-TC-006-TC
1/4"
6±1
5
8
200
MBS-TC-008-TC
5/16"
8±2
6
12
200
MBS-TC-010-TC
3/8"
10±2
7
17
150
MBS-TC-012-TC
1/2"
12±2
8
20
100
MBS-TC-016-TC
5/8"
16±2
10
20
100
MBS-TC-020-TC
3/4"
20±2
13
26
50
MBS-TC-025-TC
1"
25±2
18
33
50
MBS-TC-032-TC
1-1/4"
32±2
20
50
50
MBS-TC-038-TC
1-1/2"
38±2
30
60
50
MBS-TC-045-TC
1-3/25"
45±2
35
75
25
MBS-TC-050-TC
2"
50±2
40
80
25
Application
- New Energy Vehicles (EV): Critical EMI shielding for high-voltage battery cables and charging systems.
- Communication Devices: Protection for sensitive data lines and high-frequency transmission equipment.
- Rail Transit: Ruggedized grounding and shielding for locomotive signaling and power distribution.
- Military & Aerospace: High-reliability protection for avionics and field communication harnesses.
