high temp ceramic terminal block

High temp Ceramic Terminal Block 3 Pole

Ceramic terminal block was Insulated,high temperature resistance.It can be widely used in household appliances, electrical control, electrical source,etc.


The screws secure wires for reliable contact and help prevent accidental contact with the terminals.

  • Item no.:

    MJ-SP023
  • Material:

    High-frequency ceramic
  • Working Temperature:

    -40℃ ~+425℃
  • Standard Color:

    White
  • Certification:

    ROHS
  • Size:

    10A~60A
  • Product Details

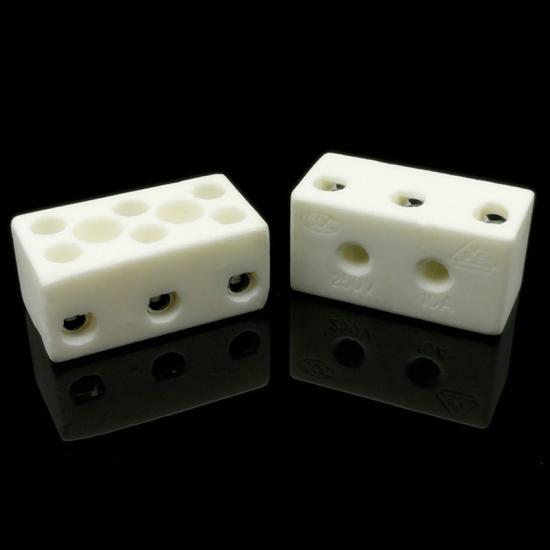

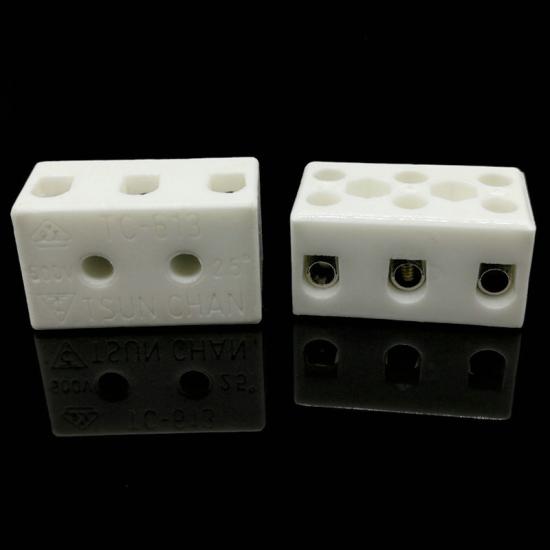

High temp Ceramic Terminal Block 3 Pole

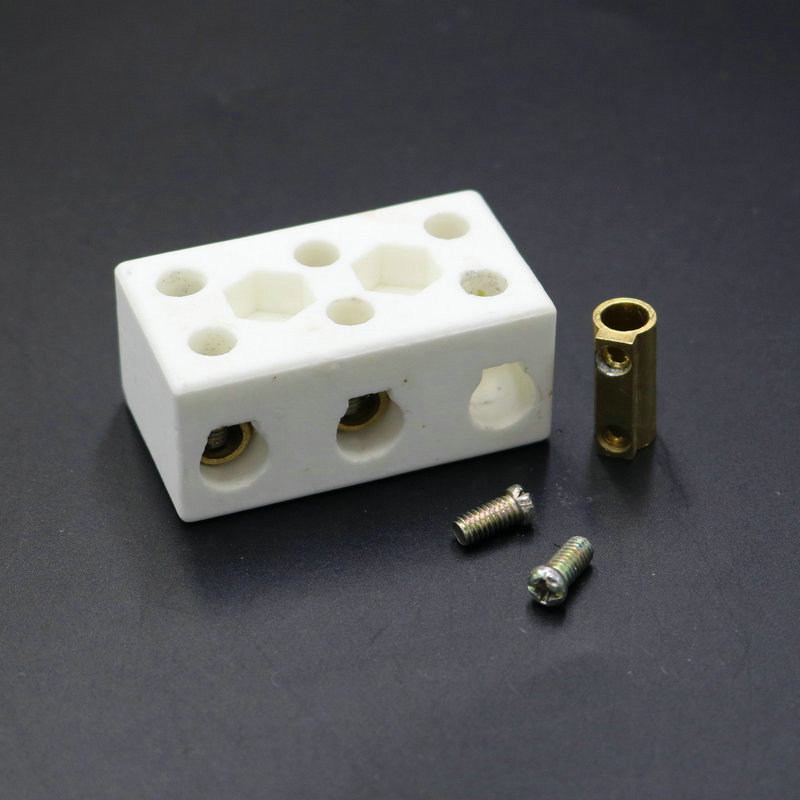

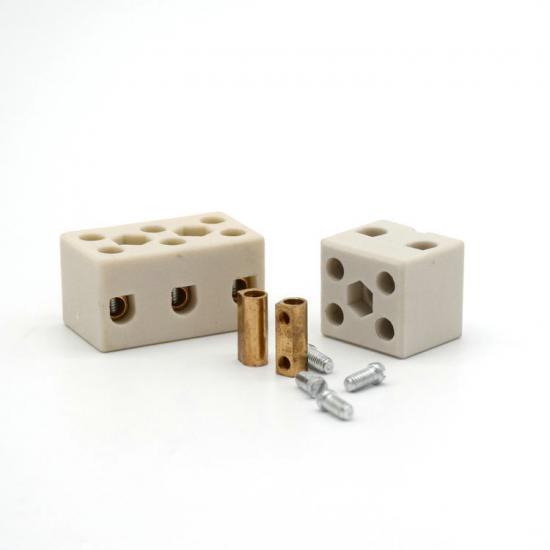

Ceramic connector block made of alumina or talc porcelain with brass conductor and zinc plated steel screws, which can withstand high temperature test.



Hot stamping process manufacturing, can control the customer required tolerance range, size precision is very accurate



It has anti-aging, high temperature resistance, good insulation performance, high strength and good stability, suitable for different environments and meets the requirements of mechanical equipment wiring in harsh temperature environment.

ceramic terminal block


What's the special of our high temp ceramic terminal block

1.Ceramic material

2.Long service life

3.Good electrrical insulation

4.High temperature resistant

5.Good shock resistant


Physical properties

Style High temperature terminal block
Shell material High-frequency ceramic
Conductor Brass
Screws Steel,zinc plated
Working termperature -40℃ ~+425℃
Standard color White


Specification

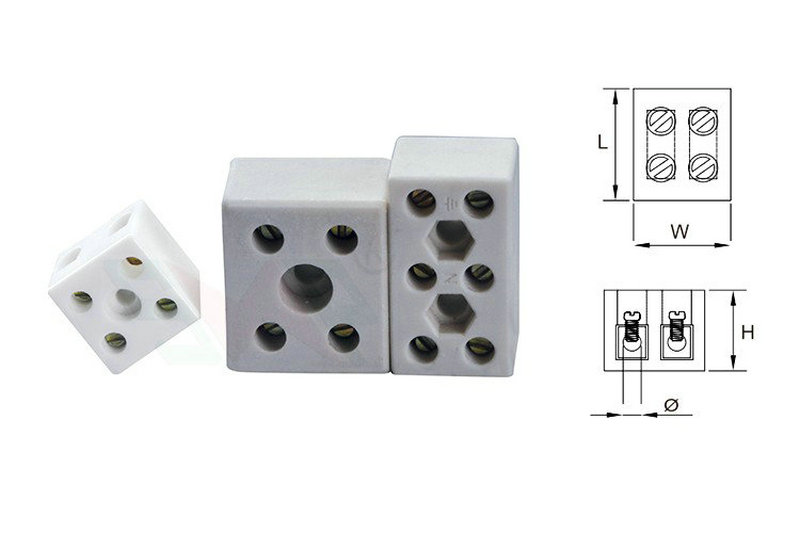

Part No Wire Range Amp  Volt L W H Φ

Screw

Size

Packing
mm
SP023-01-2P 6.0~10.0m 10A 250V~450V 21 18 15 4.2 M3.0 2000 pcs/ctn
SP023-02-3P
6.0~10.0m
10A 250V~450V
33 18 15 4.2 M3.0
2000 pcs/ctn
SP023-03-2P
12.0~14.0m
20A 250V~450V
24 22 21 4.5 M3.5
2000 pcs/ctn
SP023-04-3P
12.0~14.0m
20A 250V~450V
38 22 21 4.5 M3.5
2000 pcs/ctn
SP023-05-2P
25m
60A 250V~450V
34 30 23 6.3 M4.0
2000 pcs/ctn
SP023-06-3P
25m
60A 250V~450V
53 30 23 6.3 M4.0
2000 pcs/ctn

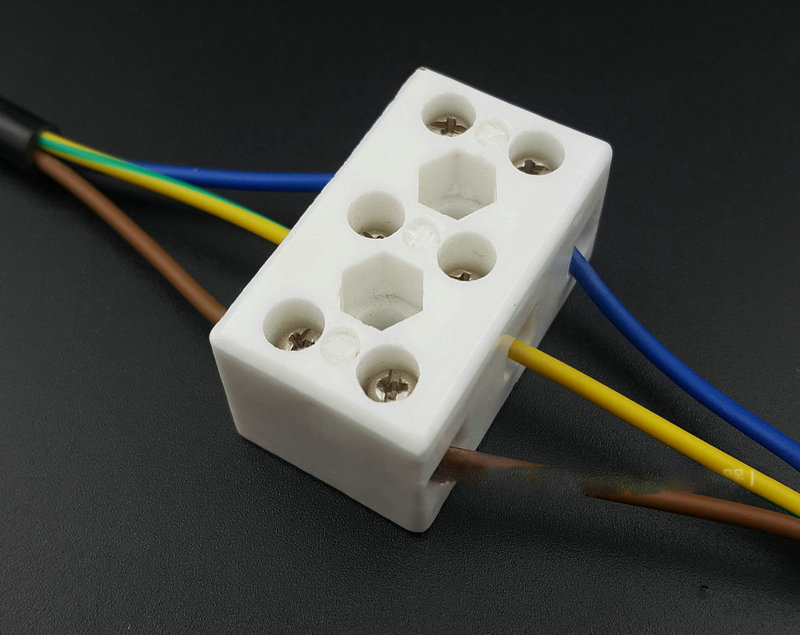

ceramic terminal block connector

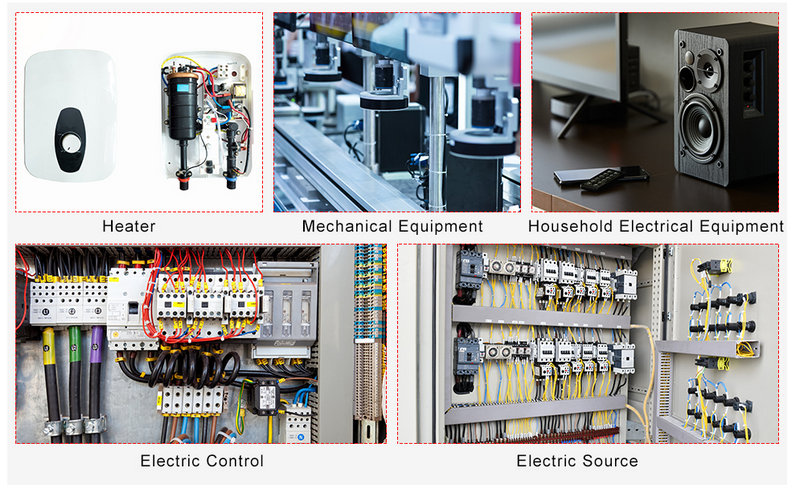

Application


Ceramic terminal block connector usually used in various terminal situations with high ambient temperature and strict requirements, such as high-grade socket power line connection and socket for special industries, power supply, transformer, instrument, instrument, television, automobile and other equipment.

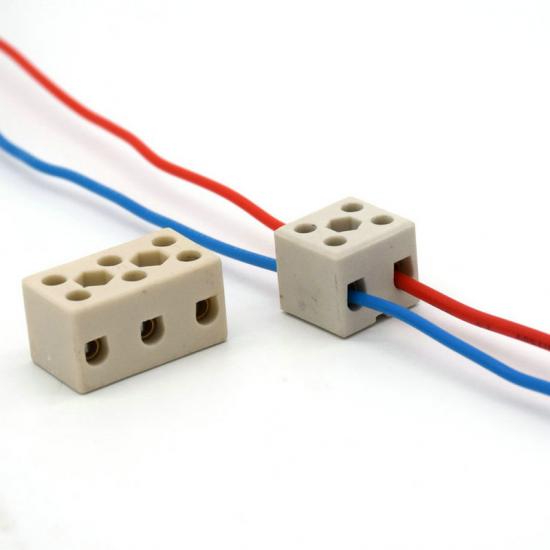

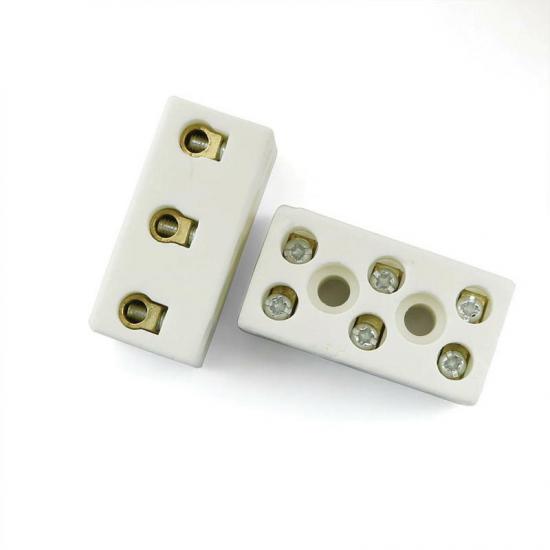

ceramic terminal block 3 pole

high temperature terminal block
