12 Way U Type Screw Terminal Block

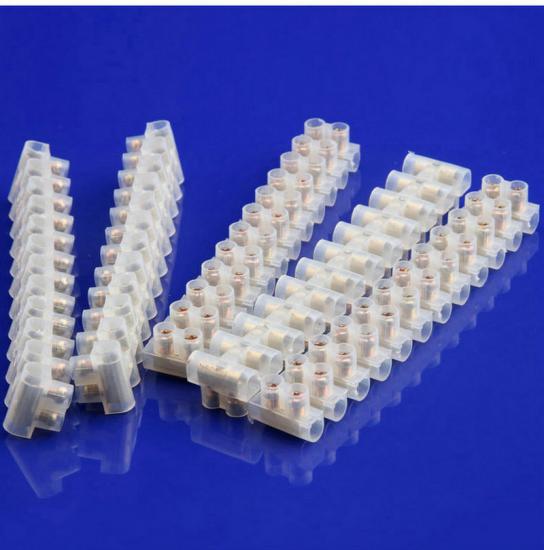

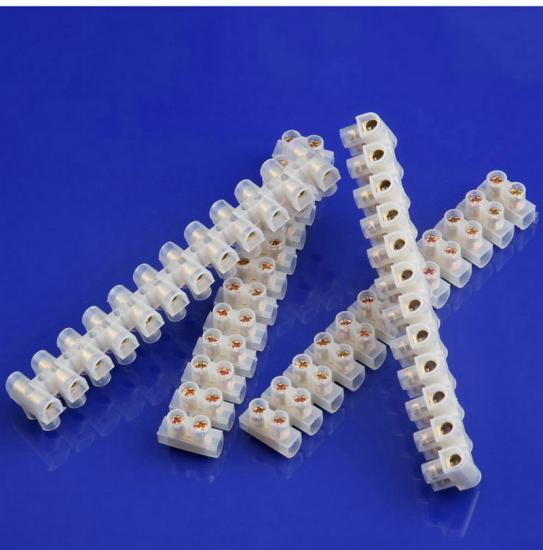

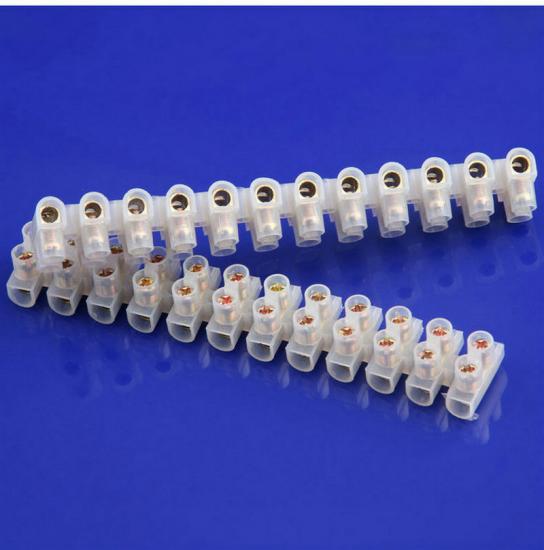

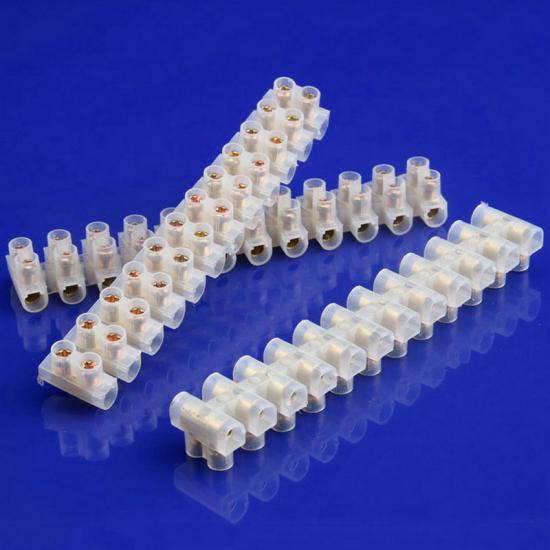

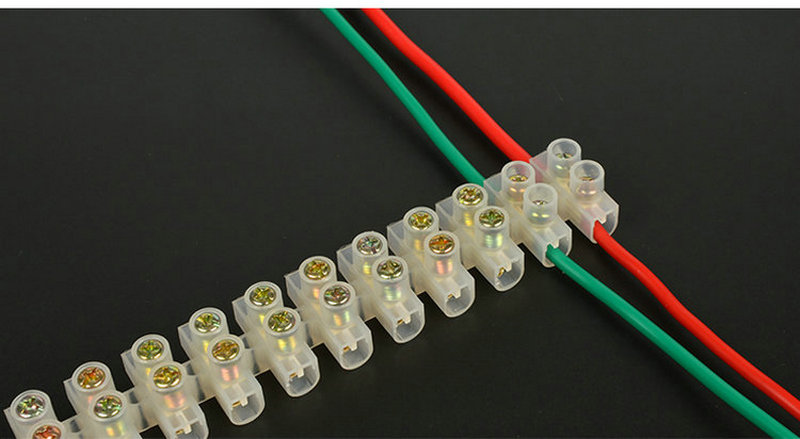

12 way terminal block are made from high quality brass and outer is made from PE, with zinc plated steel screws.
Each pair of terminals is insulated from the next, preventing circuits from disorder,the set screws secure wires reliable contact and help prevent accidental contact with the terminals.
Terminal strip connector can be cut to small part as you need using scissors, knife or other tools.
Physical properties
| Style | Feed through terminal blocks |
| Type | U type |
| Shell material | PE |
| Conductor material | Brass |
| Screw material | Steel,zinc plated |
| Volt | 380V |
| Amp | 3A~100A |
| working temperature |
-40℃ to 65℃ |
| Standard color | Natural,black,red,green,yellow,blue |
Specification

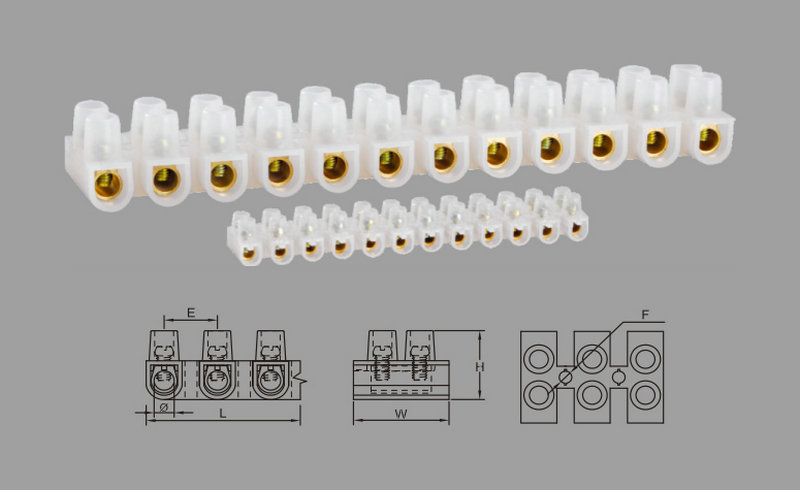

| Part No | Wire Range | Amp | Volt | L | W | H | E | F |
Φ |
Screw Size |
PCS/CTN |
|
mm |
|||||||||||
| SP003-01 | 2.5~4.0mm² | 3A | 380V | 91.4 | 15.6 | 10.8 | 7.5 | 2.5 | 3.0 | M2.5 | 1000 |
| SP003-02 |
4.0~6.0mm² |
6A | 380V | 112.5 | 15.5 | 12.8 | 9.5 | 2.9 | 3.3 | M3.0 | 1000 |
| SP003-03 |
6.0~10.0mm² |
10A |
380V |
128.0 | 20.6 | 15.0 | 10.8 | 3.1 | 4.2 | M3.0 | 500 |
| SP003-04 | 10.0~12.0mm² | 15A |
380V |
137.3 | 22.5 | 16.6 | 11.5 | 3.5 | 4.5 | M3.5 | 500 |
| SP003-05 | 12.0~14.0mm² | 20A |
380V |
137.5 | 22.7 | 17.7 | 12.0 | 3.5 | 4.7 | M4.0 | 400 |
| SP003-06 | 16.0mm² | 30A |
380V |
164.5 | 25.3 | 19.0 | 14.2 | 3.5 | 5.6 | M4.0 | 300 |
| SP003-07 | 25.0mm² | 60A |
380V |
185.5 | 29.2 | 24.0 | 15.8 | 3.5 | 6.6 | M5.0 | 200 |
| SP003-08 | 35.0mm² | 80A |
380V |
204.5 | 32.6 | 27.2 | 17.3 | 4.5 | 7.0 | M5.0 | 100 |
| SP003-09 | 40.0mm² | 100A |
380V |
250.0 | 45.6 | 30.6 | 21.5 | 4.7 | 9.0 | M6.0 | 50 |
Application

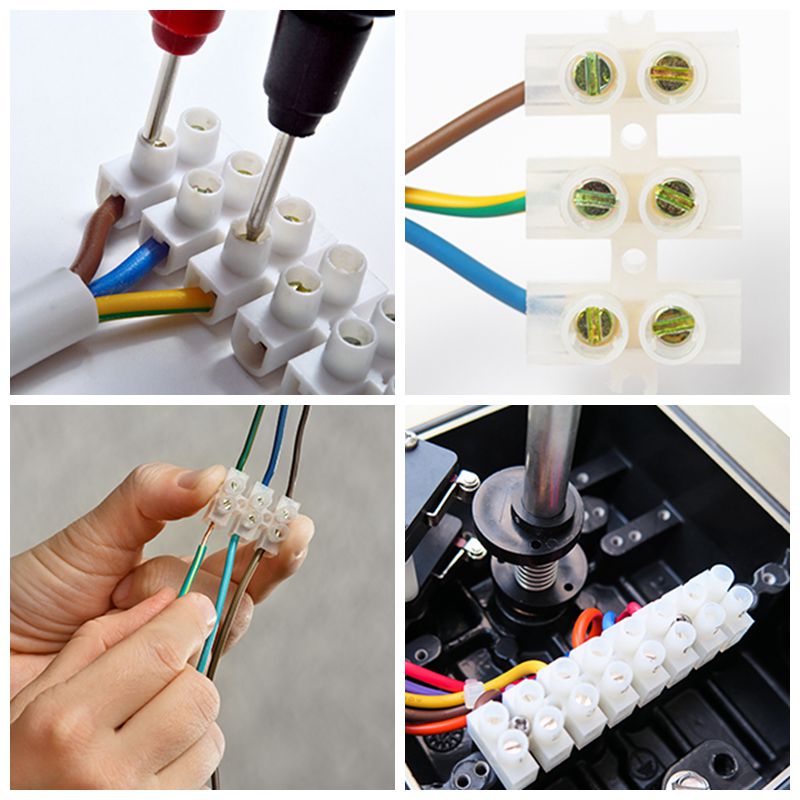

12 way connector strip widely use for lamp,decorated lighting, factory,household appliances and power distribution cabinets, distribution boxes and other transmission equipment.
