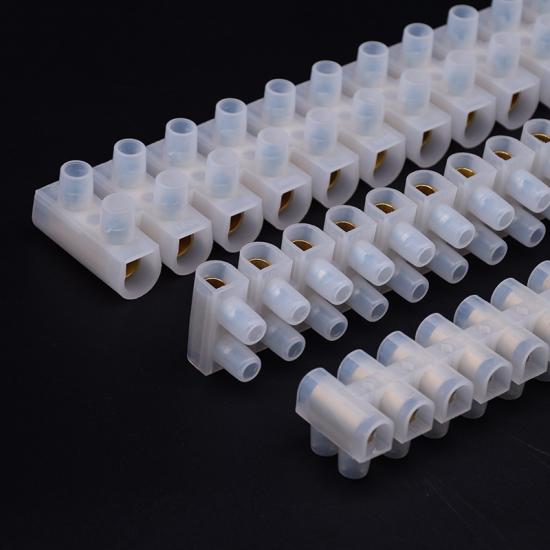

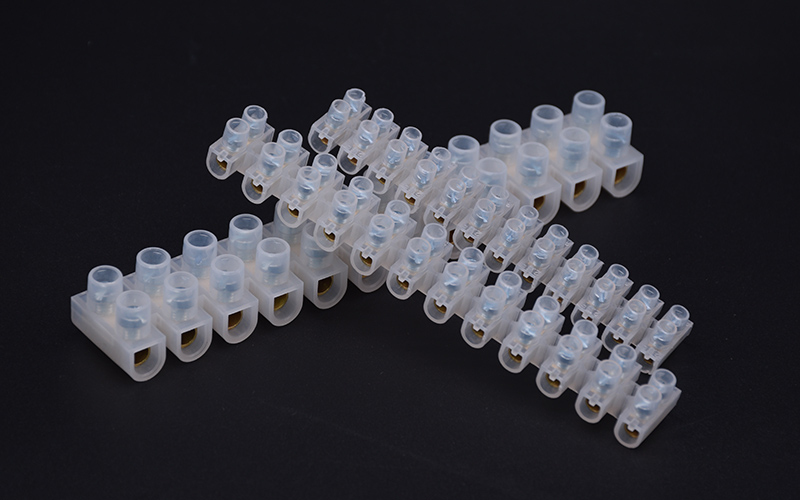

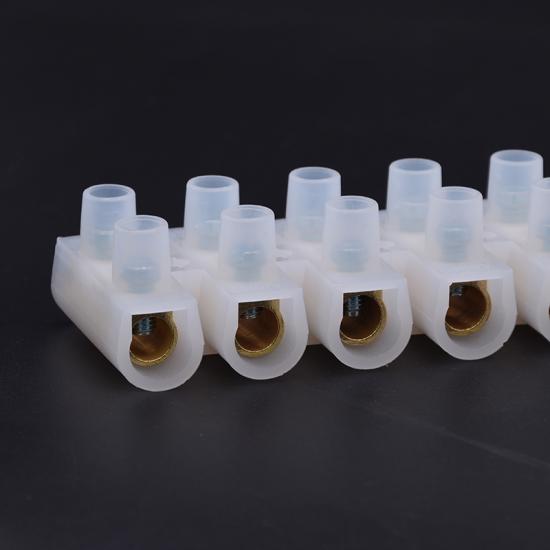

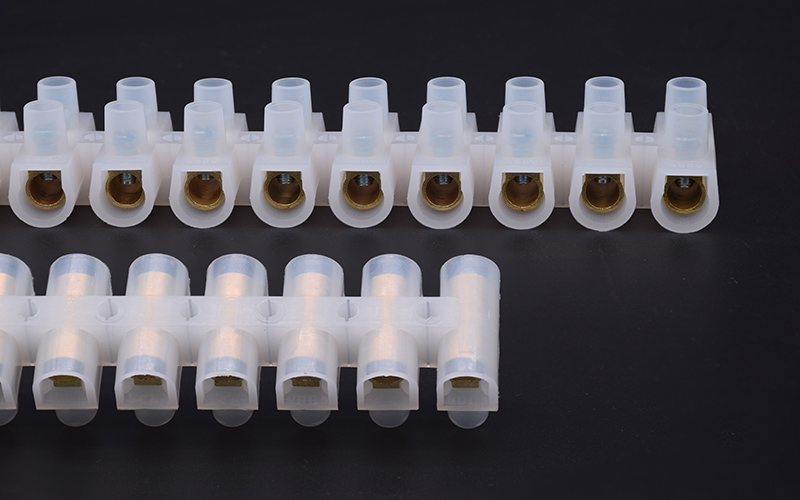

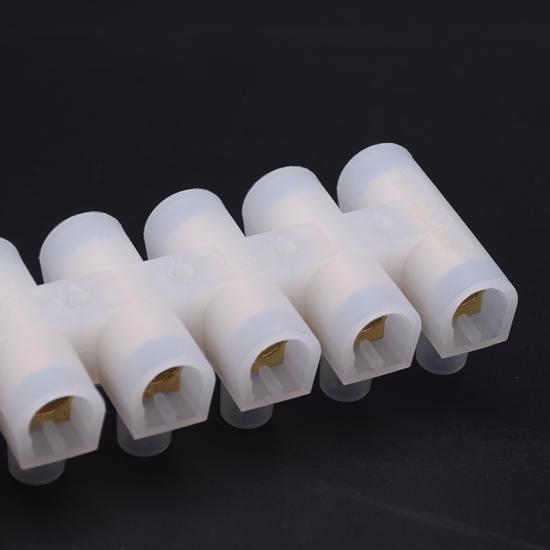

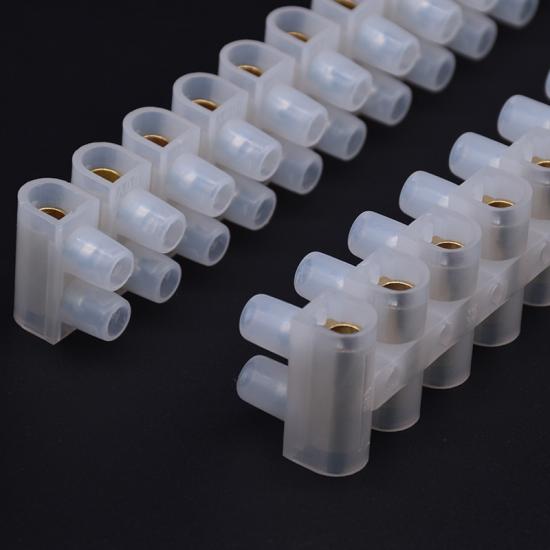

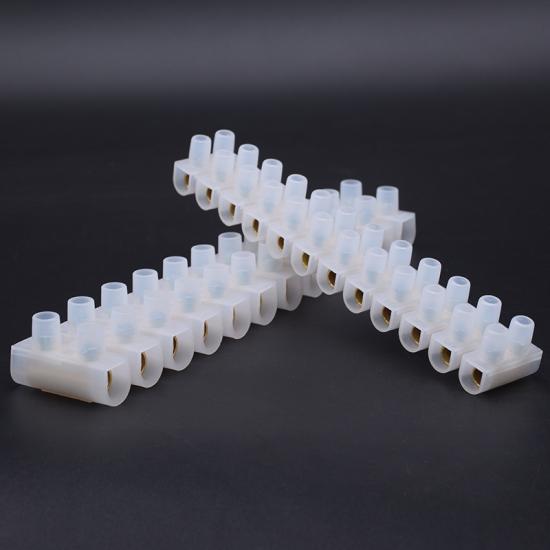

U Type electrical connector Terminal Blocks
U Type Terminal Blocks are made from high quality brass and outer is made from PE, with zinc plated steel screws.
-
Each terminal block is manufactured using brass conductor inserts with electro-tin plated connector screws.It can be cut to small part as you need using scissors, knife or other tools.
-
-
-
Physical properties
Style
Feed through terminal blocks
Type
U type
Shell material
PA6
Conductor material
Brass
Screw material
Steel,zinc plated
Volt
380V
Amp
3A~100A
working temperature
-40℃ to 65℃
Standard color
Natural,black,red,green,yellow,blue
Specification
| Part No | Wire Range | Amp | Volt | L | W | H | E | F |
Φ |
Screw Size |
PCS/CTN |
|
mm |
|||||||||||
| SP003-30 | 2.5~4.0mm² | 3A | 380V | 93.2 | 15.8 | 11.0 | 7.5 | 2.5 | 3.0 | M2.5 | 1000 |
| SP003-31 |
4.0~6.0mm² |
6A | 380V | 114.8 | 15.8 | 13.0 | 9.7 | 2.9 | 3.3 | M3.0 | 800 |
| SP003-32 |
6.0~10.0mm² |
10A |
380V |
131.8 | 21.1 | 15.3 | 11.1 | 2.9 | 4.2 | M3.0 | 500 |
| SP003-33 | 10.0~12.0mm² | 15A |
380V |
141.5 | 23.0 | 17.0 | 11.8 | 3.1 | 4.5 | M3.5 | 400 |
| SP003-34 | 12.0~14.0mm² | 20A |
380V |
141.5 | 22.4 | 18.0 | 11.9 | 3.2 | 4.5 | M4.0 | 400 |
| SP003-35 | 16.0mm² | 30A |
380V |
169.0 | 26.0 | 19.2 | 14.5 | 3.5 | 5.5 | M4.0 | 300 |
| SP003-36 | 25.0mm² | 60A |
380V |
191.0 | 30.0 | 24.4 | 16.0 | 3.5 | 6.5 | M5.0 | 160 |
| SP003-37 | 35.0mm² | 80A |
400V |
211.5 | 33.0 | 28.0 | 17.8 | 4.5 | 7.0 | M5.0 | 100 |
| SP003-38 | 40.0mm² | 100A |
450V |
260.0 | 47.0 | 31.5 | 22.0 | 4.7 | 9.0 | M6.0 | 50 |
Application
-
Suitable for quick and east joining of vehicle wiring, boats and caravan wiring, modelling electrics, household lighting, general mains power connections.
-
