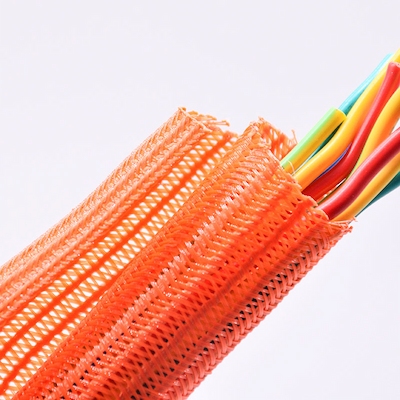

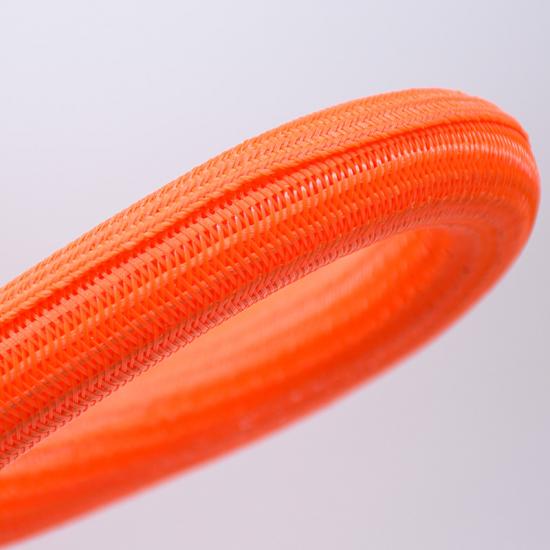

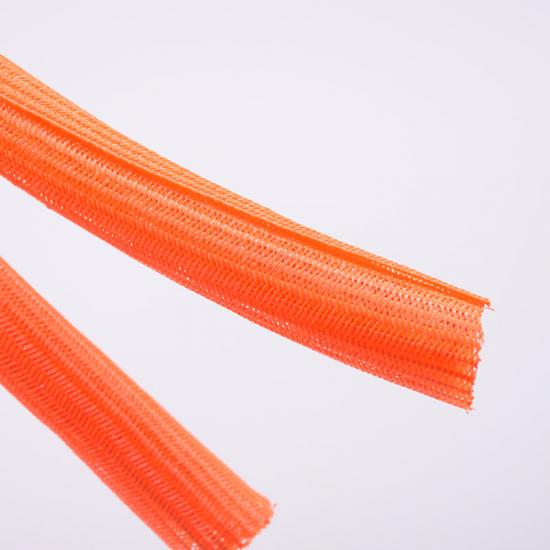

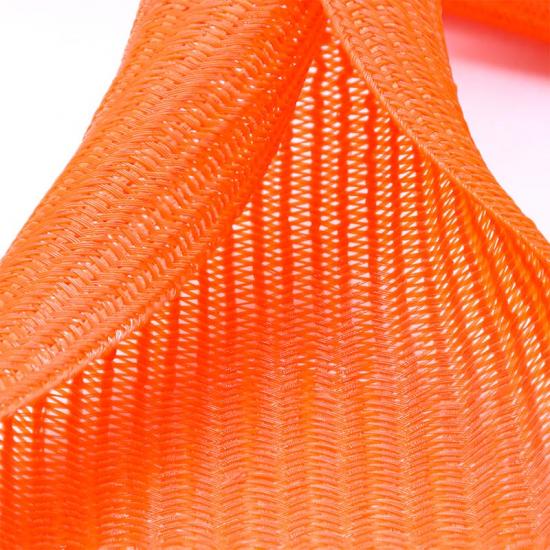

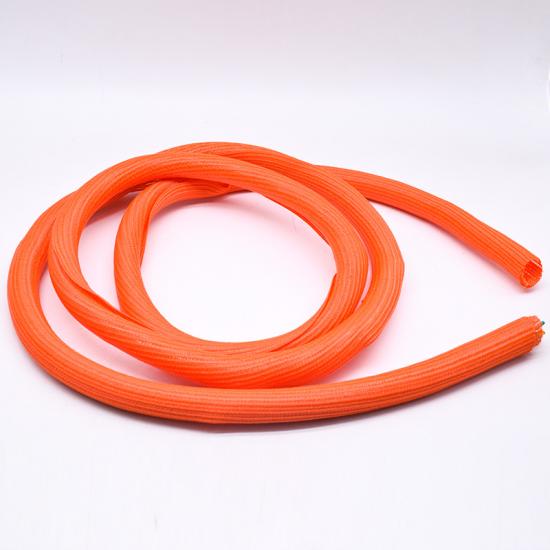

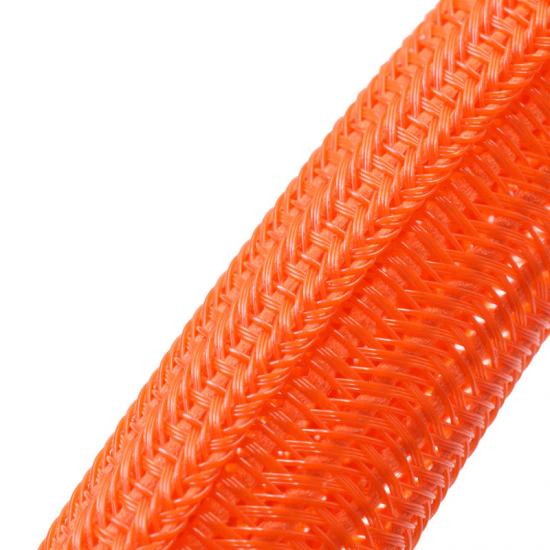

Split Tube Orange Braided Sleeving
Cable protection: protect cables from mechanical damage, friction and abrasion.
Environmental protection: resist the influence of environmental factors such as dust, moisture, oil, etc.
Electromagnetic shielding: some braided network tubes have anti-electromagnetic interference (EMI) function to protect sensitive equipment.
Aesthetic organization: organize messy wires into bundles to improve the appearance of equipment.
High visibility: The orange appearance is easy to identify and manage, especially suitable for complex wiring environments.
Certifications
Physical Properties
| Physical Properties | Details |
| Material | PET Monofilament + PET Multifilament |
| Working Temperature | -40°C ~ +150°C |
| Melt Point | 240(±10)°C |
| Low Temperature Resistance | No crack and degradation after test at -40℃ for 4h |
| Short - term aging | No crack and degradation after test at 158℃ for 168h |
| Flammability | VW - 1, FMVSS302 |
| Abrasion Resistance | Conform to grade 10（4000 cycles）refer to ISO6722 |
| Liquid Resistance | No cracking or degradation refer to GMW14327 |
| Ageing Resistance | Refer to ISO6722 |
| Overlap | ≧35% |
| UL File No | E533019 |
| Standard Color | Black |
| Certification | Rohs, Reach, UL, Halogen Free |
| Cutting Tool | Hot Knife |
What's Special about Split Tube Orange Braided Sleeving?
1.Made of PET filament
2.Flammability: UL94 V2
3.Extremely lightweight
4.Keeps it's flexibility under a wide range of temperatures
5.Easy, cost and labor effective installation
6.Resists gasoline, chemicals & cleaning Solvents
Specification
| Part No |
ID
(mm)
|
OD
(mm)
|
Spread
Width
(mm)
|
Bundle Dia
Range(mm)
|
Packing
Length
(m/spool)
|
| SBW-PET-003-OR | 3.2±1 | 4±1 | 23±3 | 2~4 | 200 |
| SBW-PET-005-OR | 5±2 | 7±2 | 28±3 | 4~6 | 200 |
| SBW-PET-006-OR | 6±2 | 8±2 | 33±3 | 6~8 | 200 |
| SBW-PET-008-OR | 8±2 | 10±2 | 45±3 | 6~ 10 | 100 |
| SBW-PET-010-OR | 10±2 | 12±2 | 48±3 | 8~ 11 | 80 |
| SBW-PET-013-OR | 13±2 | 15±2 | 60±5 | 12~ 15 | 50 |
| SBW-PET-016-OR | 16±2 | 18±2 | 76±5 | 15~ 18 | 200 |
| SBW-PET-019-OR | 19±2 | 21±2 | 89±5 | 18~22 | 100 |
| SBW-PET-025-OR | 25±2 | 27±2 | 115±5 | 23~26 | 50 |
| SBW-PET-029-OR | 29±2 | 31±2 | 127±5 | 28~30 | 50 |
| SBW-PET-032-OR | 32±2 | 34±2 | 143±5 | 29~34 | 50 |
| SBW-PET-038-OR | 38±2 | 40±2 | 170±5 | 35~40 | 25 |
| SBW-PET-045-OR | 45±2 | 48±2 | 205±10 | 46~51 | 25 |
| SBW-PET-050-OR | 50±4 | 52±4 | 340±10 | 50~79 | 25 |
Application
1. Industrial Equipment
Function: Protect cables from mechanical damage and environmental corrosion.
Applications: Factory machinery, automation equipment, robots.
2. Automotive Industry
Function: Protect engine compartments, chassis and electric vehicle battery cables.
Applications: Cars, trucks, motorcycles.
3. Building and Power
Function: Protect cables from abrasion, moisture and UV rays.
Applications: Building wiring, power transmission, communications equipment.
4. Electronics and Home Appliances
Function: Protect cables from electromagnetic interference and physical damage.
Applications: Computers, TVs, home appliances.
5. Aerospace
Function: Protect cables from extreme temperatures and high altitudes.
Applications: Aircraft, satellites, spacecraft.
