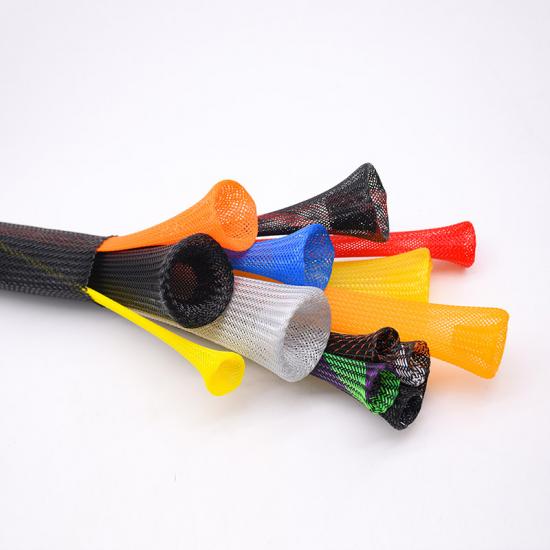

Colored Mixed Flame retardant electrical braided cable sleeve
Colored expandable sleeving made of 0.25mm thick PET monofilament.The special braid construction permits the sleeving to be expanded by up to 300%, with high abrasion resistance, allow quick and easy fitting over irregular components.
The pet monofilament are very flexible,flame retardant,UV resistance,resist most of oils, common fuels and solvents. It keep high performance in wide operating temperature range.
Braided wire loom popular used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.
What's special about colors expandable braided sleeving?
1.Made of polyester monofilament
2.Flame retardant
3.Extremely lightweight
4..Keeps it's flexibility under a wide range of temperatures
5.Economical & easy to install
6.Resists gasoline, chemicals & cleaning Solvents
7.Expands up to 150% of initial diameter
8.Cut & abrasion resistant
9.More than 60 colors available
Physical Properties
| Physical Properties | Details |
|
Material |
PET Monofilamentent |
| Working Temperature | -40℃~+150℃ |
| Melt Point | 240+(-10)°C |
| Low temperature resistance | No signs of embrittlement or degradation after test at -40°C for 4h |
| Heat aging resistance | No signs of embrittlement or degradation after test at 158°C for 168h |
| Flammability | VW-1,FMVSS302 |
| Abrasion Resistance | Medium |
| Standard Color | Colored |
| Certification | Rohs, Reach |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | |||
| BRS-PET-003-MC | 1/8” | 3 | 1 | 6 | 0.65±0.05 | 1000 |
| BRS-PET-006-MC | 1/4” | 6 | 3 | 9 | 0.65±0.05 | 500 |
| BRS-PET-008-MC | 5/ 16” | 8 | 5 | 12 | 0.65±0.05 | 350 |
| BRS-PET-010-MC | 3/8” | 10 | 7 | 17 | 0.65±0.05 | 350 |
| BRS-PET-012-MC | 1/2” | 12 | 8 | 20 | 0.65±0.05 | 300 |
| BRS-PET-016-MC | 5/8” | 16 | 10 | 27 | 0.65±0.05 | 250 |
| BRS-PET-020-MC | 3/4” | 20 | 14 | 30 | 0.65±0.05 | 200 |
| BRS-PET-025-MC | 1” | 25 | 18 | 33 | 0.65±0.05 | 200 |
| BRS-PET-032-MC | 1-1/4” | 32 | 20 | 50 | 0.65±0.05 | 150 |
| BRS-PET-038-MC | 1-1/2” | 38 | 30 | 60 | 0.65±0.05 | 100 |
| BRS-PET-045-MC | 1-3/4” | 45 | 35 | 75 | 0.65±0.05 | 100 |
| BRS-PET-050-MC | 2” | 50 | 40 | 80 | 0.65±0.05 | 100 |
| BRS-PET-064-MC | 2-1/2” | 64 | 45 | 105 | 0.65±0.05 | 50 |
| BRS-PET-076-MC | 3” | 76 | 64 | 120 | 0.65±0.05 | 50 |
Application
MJ braided mesh sleeve widely use for whenever a higher expansion rate is required.
Expandable sleeve is a general purpose protective wire covering for industrial cable,A/V cable,Hdmi cable,wire harness,pneumatic hoses, hydraulic lines and highly polished or threaded machine parts.
