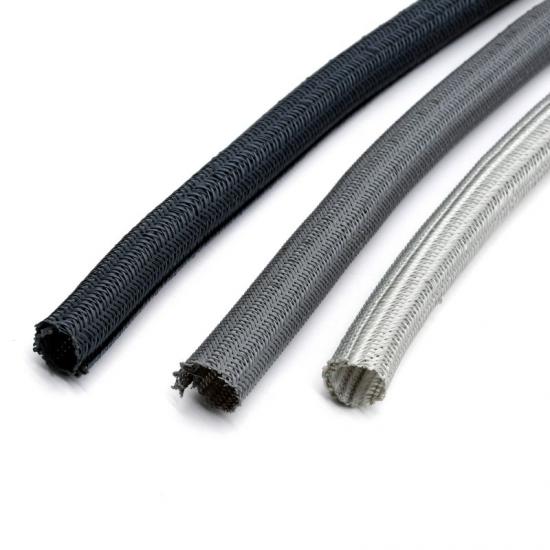

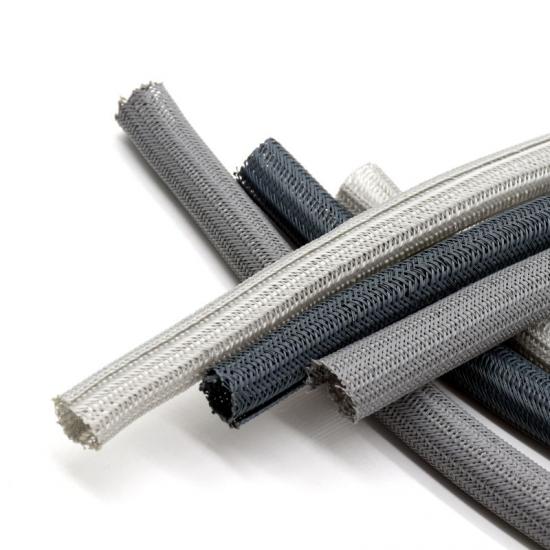

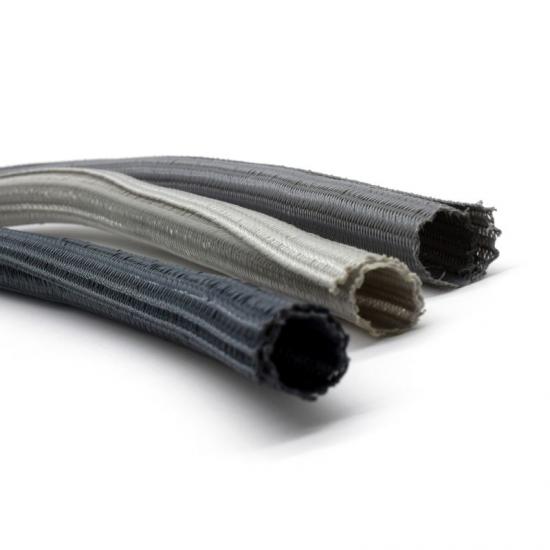

Grey Side Entry Braided Wire Loom

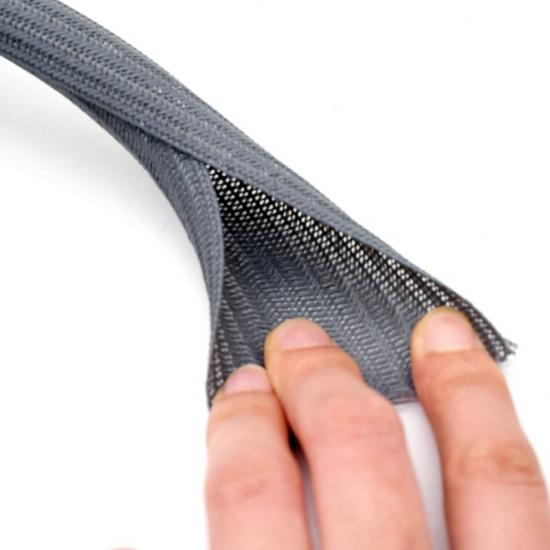

The split loom cable wrap allows the tube to open up to accommodate a wide variety of bundling requirements, and the semi-rigid braid configuration simply closes around the entire installation without the need for any additional fasteners.
The semi-rigid split braided sleeving is lightweight, quiet, and flexible. The 25% edge overlap allows coverage around inline plugs, connectors, and splices.
The split braided sleeving will bend to a tight radius without distorting or splitting open and, unlike full rigid tubing, will not impair or affect the flexibility of harnesses. And it allows for the addition or removal of wires without disassembly.
What's Special about Grey Side Entry Braided Wire Loom?
1. 25% edge overlap.
2. Halogen Free-RoHS Compliant.
3. Provides a Professional Look at Products.
4. Resists Common Chemicals, Solvents, and UV Damage.
5. Cut and Abrasion Resistant.

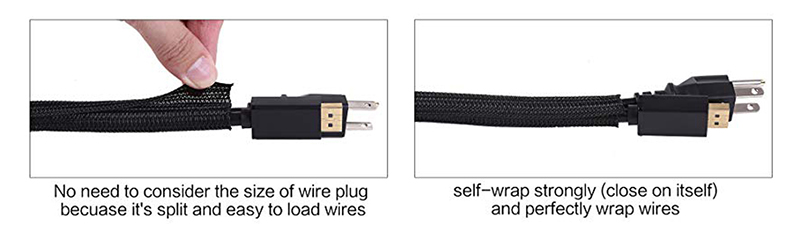

6. Split to allow breakouts and easy access.
Specification
| Part No |
ID
(mm)
|
OD
(mm)
|
Spread
Width
(mm)
|
Bundle Dia
Range(mm)
|
Packing
Length
(m/spool)
|
| SBW-PET-003-GR | 3.2±1 | 4±1 | 23±3 | 2~4 | 200 |
| SBW-PET-005-GR | 5±2 | 7±2 | 28±3 | 4~6 | 200 |
| SBW-PET-006-GR | 6±2 | 8±2 | 33±3 | 6~8 | 200 |
| SBW-PET-008-GR | 8±2 | 10±2 | 45±3 | 6~ 10 | 100 |
| SBW-PET-010-GR | 10±2 | 12±2 | 48±3 | 8~ 11 | 80 |
| SBW-PET-013-GR | 13±2 | 15±2 | 60±5 | 12~ 15 | 50 |
| SBW-PET-016-GR | 16±2 | 18±2 | 76±5 | 15~ 18 | 200 |
| SBW-PET-019-GR | 19±2 | 21±2 | 89±5 | 18~22 | 100 |
| SBW-PET-025-GR | 25±2 | 27±2 | 115±5 | 23~26 | 50 |
| SBW-PET-029-GR | 29±2 | 31±2 | 127±5 | 28~30 | 50 |
| SBW-PET-032-GR | 32±2 | 34±2 | 143±5 | 29~34 | 50 |
| SBW-PET-038-GR | 38±2 | 40±2 | 170±5 | 35~40 | 25 |
| SBW-PET-045-GR | 45±2 | 48±2 | 205±10 | 46~51 | 25 |
| SBW-PET-050-GR | 50±4 | 52±4 | 340±10 | 50~79 | 25 |
Application

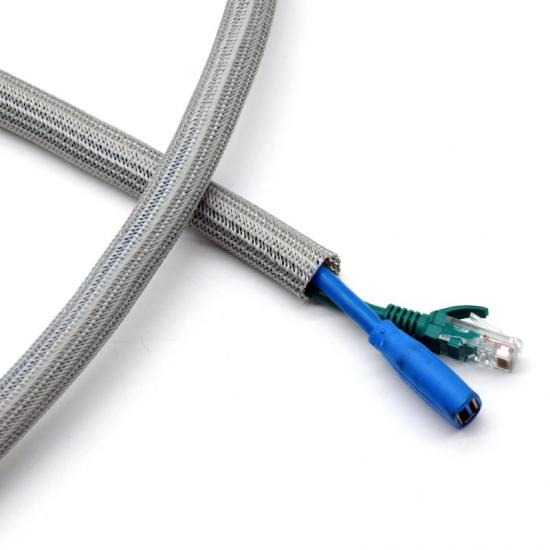

Grey semi-rigid split braided sleeving is widely used for industrial cable, A/V cable, HDMI cable, wire harness, pneumatic hoses, hydraulic lines, and highly polished or threaded machine parts, due to its open weave design with high abrasion resistance and high flame retardant.
