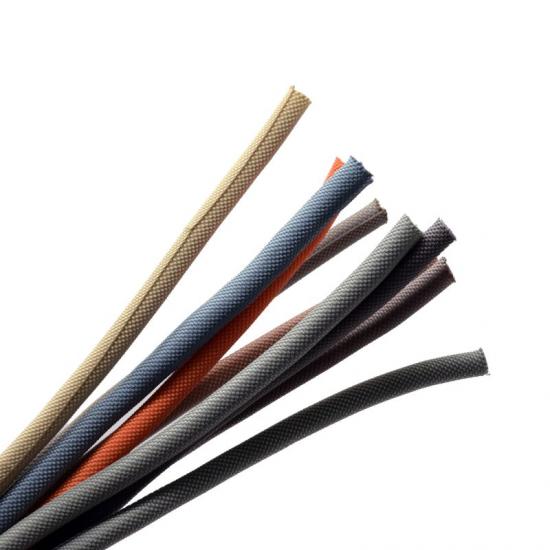

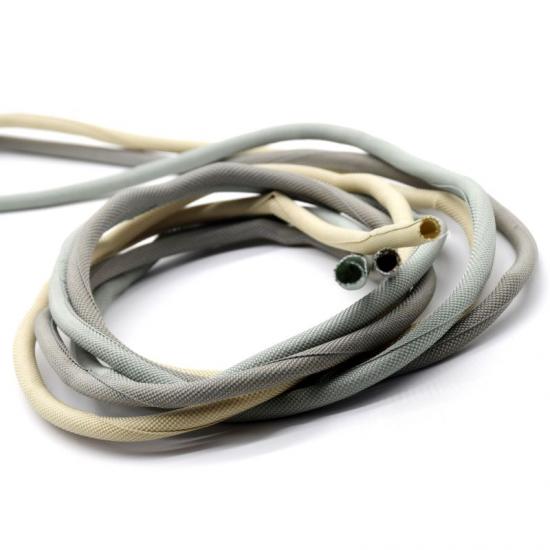

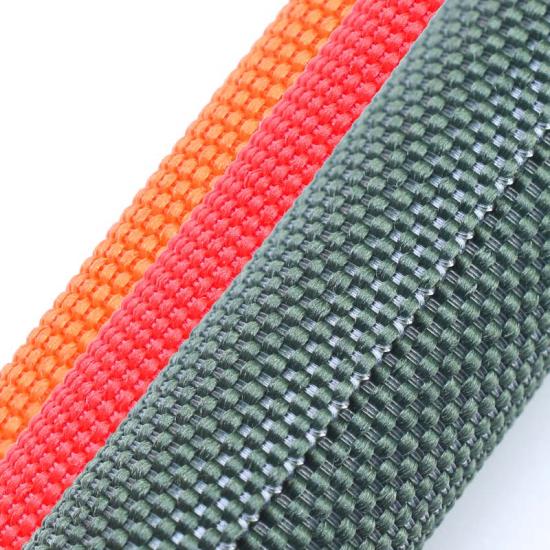

Colorful Woven Braided Loom Wrap

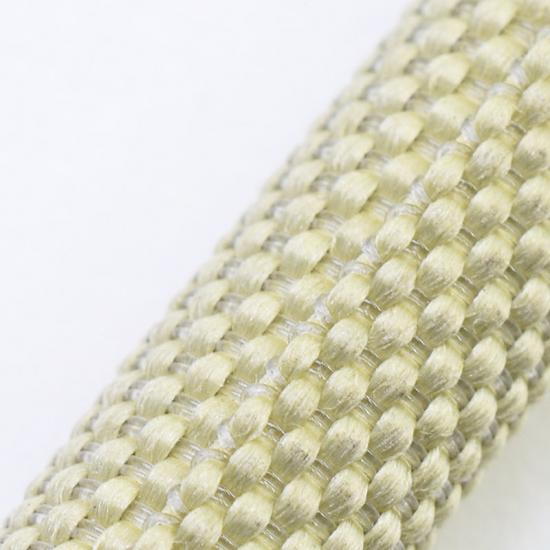

Colorful woven braided loom wrap made of PET multifilament and monofilament. The special braid construction permits to be superior elastic flexibility with unbeatable coverage over any harness assembly.
The woven split cable sleeve is extremely lightweight, has high abrasion resistance, flame retardant, UV resistance, and resists most oils, common fuels, and solvents. It keeps high performance in a wide operating temperature range.
Woven split braided loom wrap is widely used for industrial cable, electronic communication, power systems, A/V cable, HDMI cable, wire harness, pneumatic hoses, hydraulic lines, and highly polished or threaded machine parts, due to its open weave design with high abrasion resistance and high flame retardant.
Certifications
Physical Properties
| Physical Properties | Details |
| Material | PET multifilament and monofilament |
| Working Temperature | -40°C ~ +150°C |
| Melt Point | 240(±10)°C |
| Flammability | UL94 V2,FMVSS302 |
| Abrasion Resistance | Scrape ≥ 2000 cycles per ISO 6722 - 1 |
| Overlap | 0.5 |
| UL File No | E533019 |
| Standard Color | Colorful |
| Certification | Rohs, Reach, IEC/EN 62455, Halogen Free |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |
What's Apecial about Colorful Woven Braided Loom Wrap?

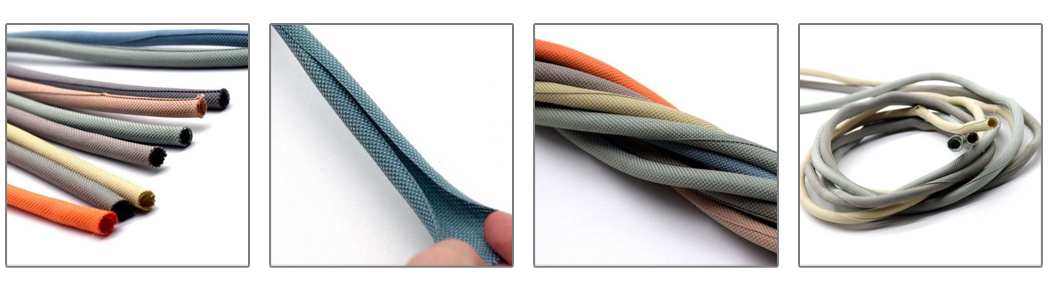

1. Full coverage, self-wrapping design.
2. 25% or 50% edge overlap.
3. Halogen free-Rohs compliant.
4. Resists common chemicals, solvents, and UV damage.

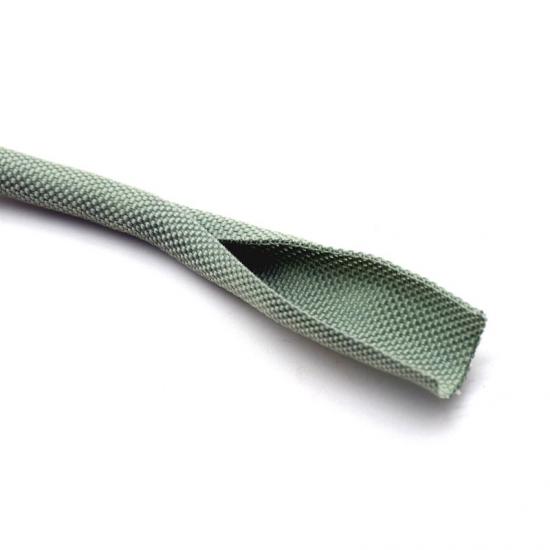

5. Split to allow breakouts and easy access.
Specification
| Part No |
ID
(mm)
|
Spread
Width
(mm)
|
Bundle Dia Range(mm) |
Packing
Length
(m/spool)
|
|
| Min | Max | ||||
| STW-PET-003-CLR | 3 | 25±3 | 2 | 4 | 100 |
| STW-PET-005-CLR | 5 | 30±5 | 4 | 6 | 100 |
| STW-PET-008-CLR | 8 | 40±5 | 6 | 9 | 100 |
| STW-PET-010-CLR | 10 | 50±5 | 8 | 11 | 100 |
| STW-PET-013-CLR | 13 | 60±5 | 12 | 14 | 100 |
| STW-PET-016-CLR | 16 | 80±5 | 15 | 17 | 100 |
| STW-PET-019-CLR | 19 | 100±5 | 18 | 20 | 50 |
| STW-PET-025-CLR | 25 | 125±8 | 23 | 26 | 25 |
| STW-PET-029-CLR | 29 | 145±8 | 27 | 31 | 25 |
| STW-PET-032-CLR | 32 | 155±8 | 30 | 34 | 25 |
| STW-PET-038-CLR | 38 | 190±8 | 37 | 40 | 25 |
| STW-PET-050-CLR | 50 | 235±8 | 48 | 52 | 25 |
Application
The woven split cable sleeve is woven and popularly used in electronics, automotive, railway, marine, industrial wire harnessing, home/office, MicroUSB, A/V cable, HDMI cable, electric bicycle cable, and cable management applications where cost efficiency and durability are critical.
