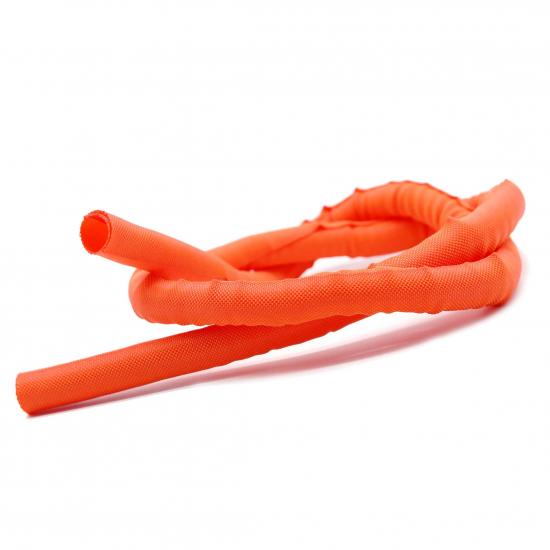

New Energy Woven Split Loom Fabric Cord Sleeve

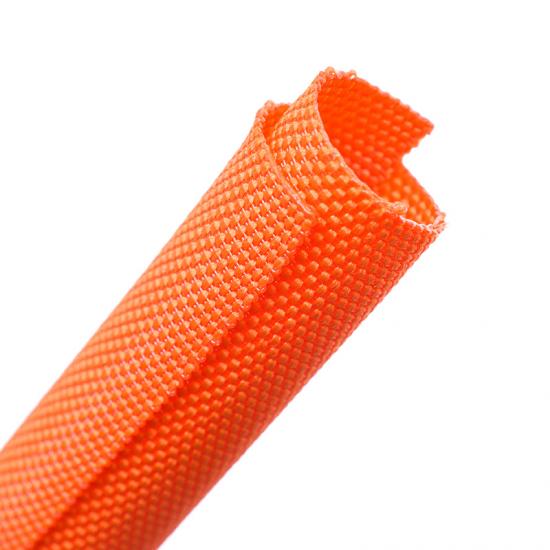

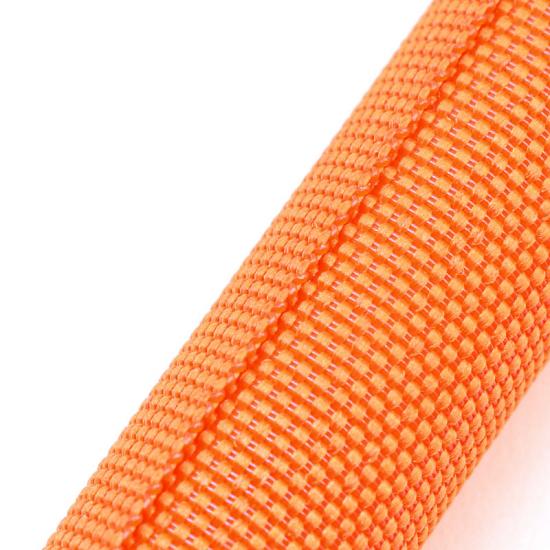

New energy woven split loom fabric cord sleeve has been engineered from the ground up to meet the demanding specifications of today's modern wiring harness industry. The self-closing wire wrap utilizes many of the same characteristics as our original split braided sleeving including the easy Woven Split Loom design and the extra overlap to ensure complete protection of important electronic, communication, and power systems.
The woven split loom design allows for easy installation of components without the need for time-consuming and costly disassembly. The Woven Split Loom will also increase abrasion resistance. By utilizing a unique blend of monofilament and multifilament polyester fibers, the new woven cable sleeve construction provides superior elastic flexibility with unbeatable coverage over any harness assembly.
The Woven Split Loom Fabric Cord Sleeve have 12 standard sizes, will be a great fit for your wire harness project.
Certifications
Physical Properties
| Physical Properties | Details |
| Material | PET multifilament and monofilament |
| Working Temperature | -40°C ~ +150°C |
| Melt Point | 240(±10)°C |
| Flammability | UL94 V2,FMVSS302 |
| Abrasion Resistance | Scrape ≥ 2000 cycles per ISO 6722- 1 |
| Overlap | 0.5 |
| UL File No | E533019 |
| Standard Color | Black |
| Certification | Rohs, Reach, IEC/EN 62455, Halogen Free |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |

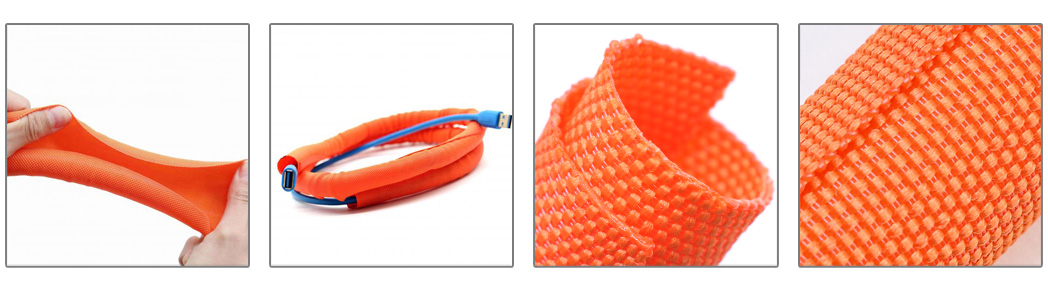

What's Special about The Woven Split Loom Fabric Cord Sleeve?
- Full coverage, self-wrapping design
- 25% or 50% edge overlap
- Halogen Free-RoHS compliant
- Resists common chemicals, xolvents, and UV damage

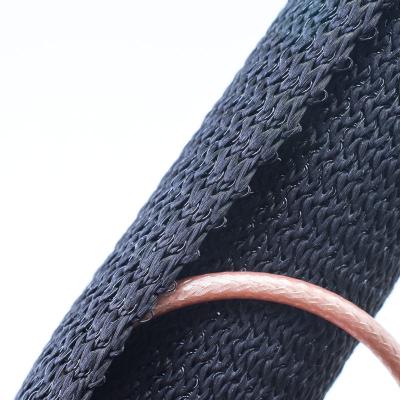

- Split to allow breakouts and easy access
Specification
Part No
Bundle Dia Range(mm)
Min
Max
STW-PET-003-OR
3
25±3
2
4
100
STW-PET-005-OR
5
30±5
4
6
100
STW-PET-008-OR
8
40±5
6
9
100
STW-PET-010-OR
10
50±5
8
11
100
STW-PET-013-OR
13
60±5
12
14
100
STW-PET-016-OR
16
80±5
15
17
100
STW-PET-019-OR
19
100±5
18
20
50
STW-PET-025-OR
25
125±8
23
26
25
STW-PET-029-OR
29
145±8
27
31
25
STW-PET-032-OR
32
155±8
30
34
25
STW-PET-038-OR
38
190±8
37
40
25
STW-PET-050-OR
50
235±8
48
52
25
Application

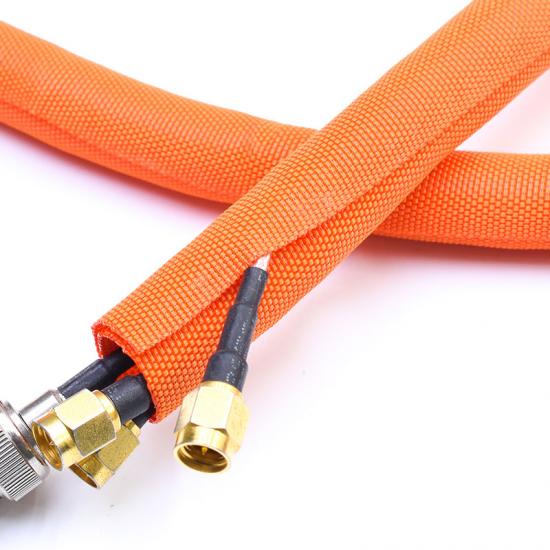

New energy woven split loom fabric cord sleeve provides superior elastic flexibility with unbeatable coverage over any harness assembly. widely use for industrial cable,electronic communication,power systems,A/V cable,Hdmi cable,wire harness,pneumatic hoses, hydraulic lines and highly polished or threaded machine parts, due to its open weave design with high abrasion resistance and high flame retardant.
