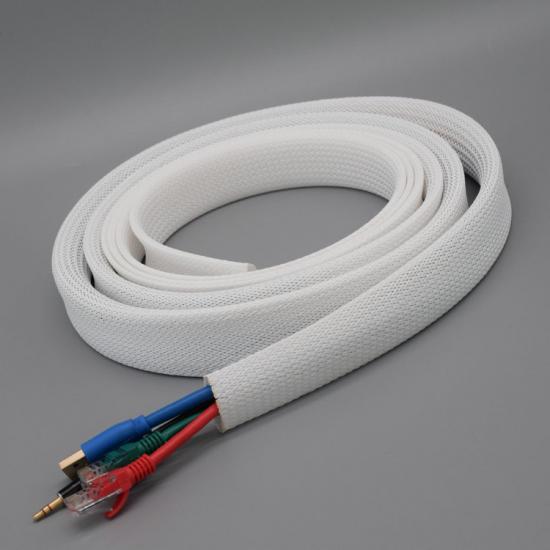

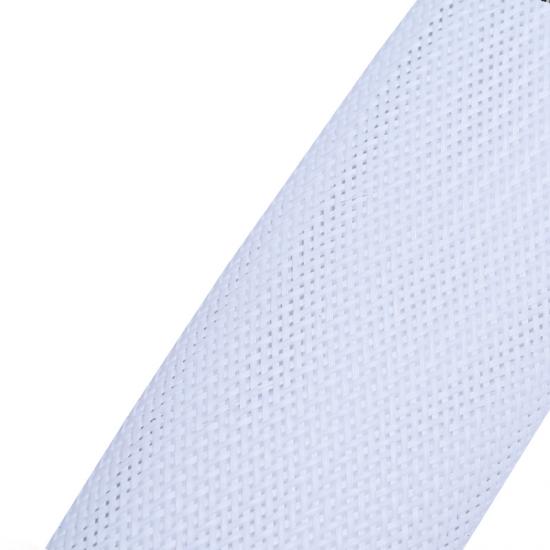

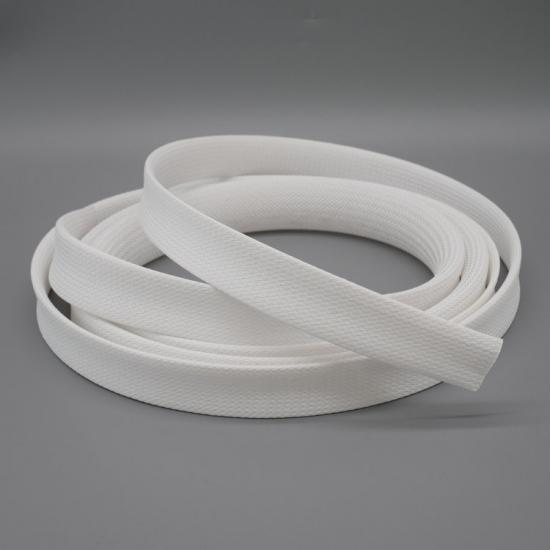

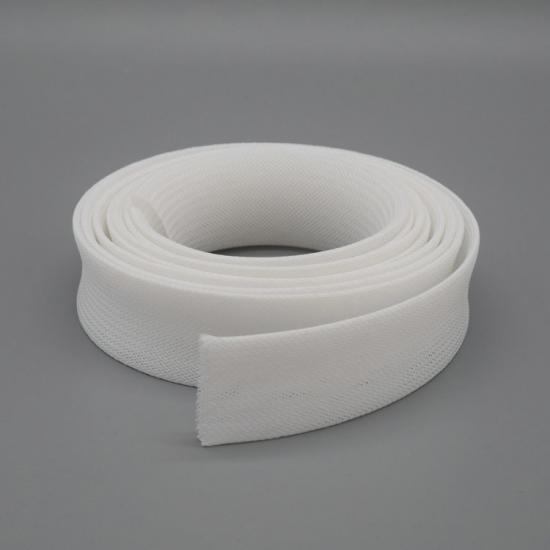

White High anti-abrasion PET Expandable Braided Cable Sleeve
A white high anti-abrasion PET braided sleeve was developed for applications where high flexibility and specific chemical properties are a must. Flexo PET abrasion-resistant wire sleeve protector will not break as a result of continual movement and will maintain its shape after many cycles of bending and flexing which makes it an ideal solution for many applications. This sleeving is a cinch to install over long runs due to its high expansion and ultra-flexibility and cuts best with a hot knife.
Abrasion-resistant wire protector sleeves are widely used in the protection of heavy equipment wiring harnesses and hoses, and also in environments with more abrasion resistance.
Certifications
Physical Properties
| Physical Properties | Details |
|
Material |
PET Monofilamentent |
| Working Temperature | -40℃~+150℃ |
| Melt Point | 240+(-10)°C |
| Low temperature resistance | No signs of embrittlement or degradation after test at -40°C for 4h |
| Heat aging resistance | No signs of embrittlement or degradation after test at 158°C for 168h |
| Flammability | VW-1,FMVSS302 |
| Abrasion Resistance | Medium |
| Standard Color | White |
| Certification | Rohs, Reach |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |
Feactures and benefits
- Made of PET monofilament.
- Flame retardant.
- Extremely lightweight and flexible.
- UV resistant.
- White color variant: ideal for wiring layouts requiring visibility, labeling, or aesthetics
- Environment-friendly: RoHS compliant, halogen-free
- Resists gasoline, chemicals & cleaning Solvents.
- Economical and easy to install, ideal for rapid assembly lines and OEMs
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | |||
| BRS-PET-003-WH | 1/8” | 3 | 1 | 6 | 0.65±0.05 | 500 |
| BRS-PET-006-WH | 1/4” | 6 | 3 | 9 | 0.65±0.05 | 400 |
| BRS-PET-008-WH | 5/ 16” | 8 | 5 | 12 | 0.65±0.05 | 400 |
| BRS-PET-010-WH | 3/8” | 10 | 7 | 17 | 0.65±0.05 | 200 |
| BRS-PET-012-WH | 1/2” | 12 | 8 | 20 | 0.65±0.05 | 200 |
| BRS-PET-016-WH | 5/8” | 16 | 10 | 27 | 0.65±0.05 | 200 |
| BRS-PET-020-WH | 3/4” | 20 | 14 | 30 | 0.65±0.05 | 200 |
| BRS-PET-025-WH | 1” | 25 | 18 | 33 | 0.65±0.05 | 100 |
| BRS-PET-032-WH | 1-1/4” | 32 | 20 | 50 | 0.65±0.05 | 100 |
| BRS-PET-038-WH | 1-1/2” | 38 | 30 | 60 | 0.65±0.05 | 100 |
| BRS-PET-045-WH | 1-3/4” | 45 | 35 | 75 | 0.65±0.05 | 50 |
| BRS-PET-050-WH | 2” | 50 | 40 | 80 | 0.65±0.05 | 50 |
| BRS-PET-064-WH | 2-1/2” | 64 | 45 | 105 | 0.65±0.05 | 50 |
| BRS-PET-076-WH | 3” | 76 | 64 | 120 | 0.65±0.05 | 50 |
