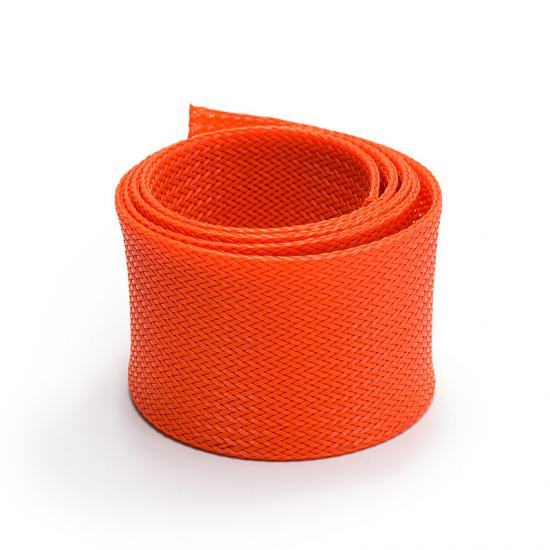

Orange Anti-Bite PET Braided Sleeving
1. Dense weaving: The mesh is tight, reducing the chance of the animal's teeth inserting into the gap, thereby reducing the success rate of biting.
2. Self-contracting structure (such as self-rolling sheath): Enhance surface tension, so that the animal feels uncomfortable when biting and gives up actively.
4. Flexible + elastic design: Even if bitten, it can relieve the force through deformation and reduce the risk of tearing.
Certifications
Features

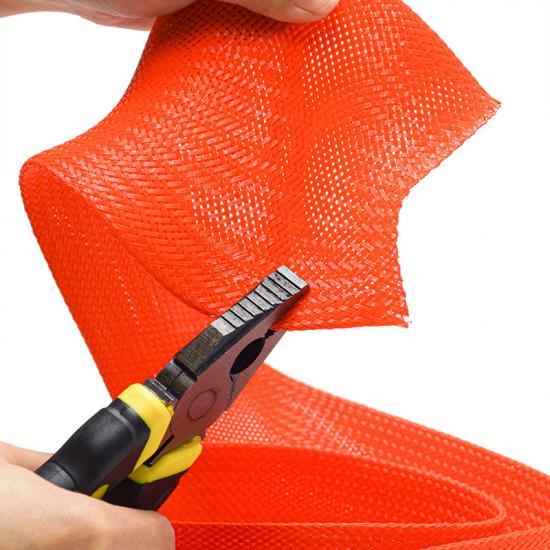

Highly effective anti-bite: Add anti-bite enhancer to improve the material's shear strength and surface hardness to prevent rat and dog bites.
Wear-resistant and flame-retardant: Highly wear-resistant PET raw yarn is preferred, and UL94 V2 grade flame retardant performance can be optionally selected to improve safety of use.

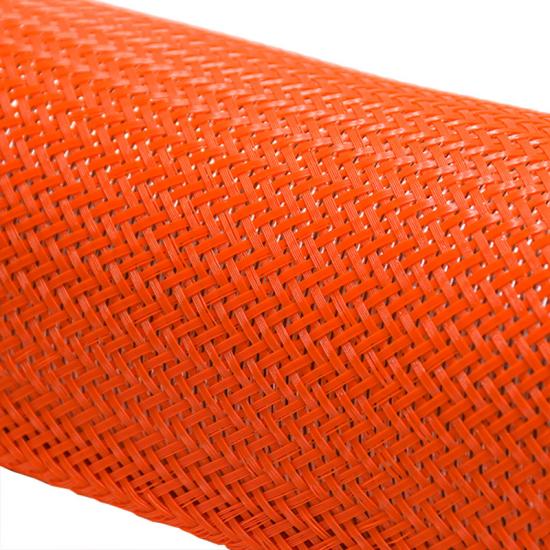

Dense woven structure: The mesh is tight and uniform, which enhances the overall protection and has good coverage.
Physical Properties
| Material | Polyethylene Terephthalate(PET) | |||||||||||
| Monofilament Thickness | 0.01”(0.25mm) | |||||||||||
| Working Temperature | -40℃~ +150℃ | |||||||||||
| Melt Point | 240+(-)10℃ | |||||||||||
| Flammability | UL94 V2 | |||||||||||
| Abrasion Resistance | Medium | |||||||||||
| Standard Color | Orange | |||||||||||
| Rohs Compliant | Yes | |||||||||||
| Reach Compliant | Yes | |||||||||||
| Halogen Free | Yes | |||||||||||
| Cutting Tool | Hot Knife | |||||||||||
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing
Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-PET-003-OR-RR | 1/8” | 3 | 1 | 6 | 1000 |
| BRS-PET-006-OR-RR | 1/4” | 6 | 3 | 9 | 500 |
| BRS-PET-008-OR-RR | 5/ 16” | 8 | 5 | 12 | 350 |
| BRS-PET-010-OR-RR | 3/8” | 10 | 7 | 17 | 350 |
| BRS-PET-012-OR-RR | 1/2” | 12 | 8 | 20 | 300 |
| BRS-PET-016-OR-RR | 5/8” | 16 | 10 | 27 | 250 |
| BRS-PET-020-OR-RR | 3/4” | 20 | 14 | 30 | 200 |
| BRS-PET-025-OR-RR | 1” | 25 | 18 | 33 | 200 |
| BRS-PET-032-OR-RR | 1-1/4” | 32 | 20 | 50 | 150 |
| BRS-PET-038-OR-RR | 1-1/2” | 38 | 30 | 60 | 100 |
| BRS-PET-045-OR-RR | 1-3/4” | 45 | 35 | 75 | 100 |
| BRS-PET-050-OR-RR | 2” | 50 | 40 | 80 | 100 |
| BRS-PET-064-OR-RR | 2-1/2” | 64 | 45 | 105 | 100 |
| BRS-PET-076-OR-RR | 3” | 76 | 64 | 120 | 100 |
Applications
This modified PET monofilament is suitable for making rat-proof and pet-proof braided sleeving, and is widely used in automotive wiring harnesses, home appliance cables, electric vehicle lines, communication equipment and other fields.
