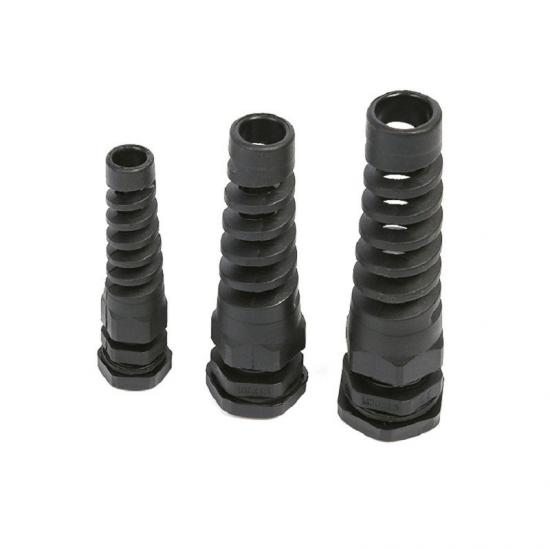

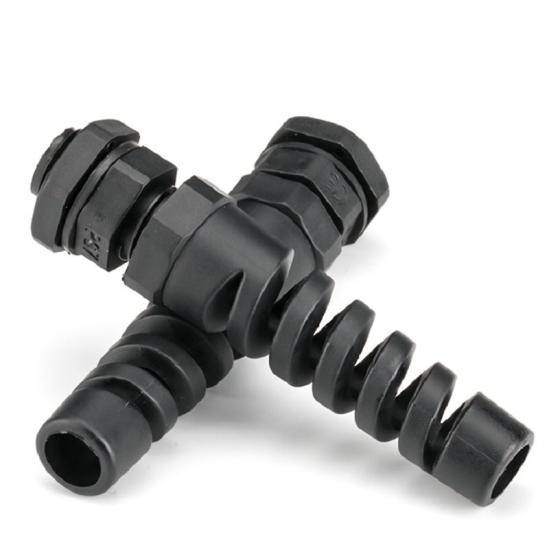

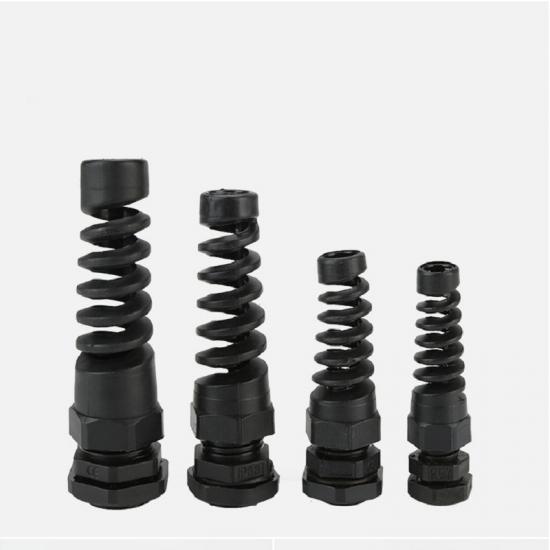

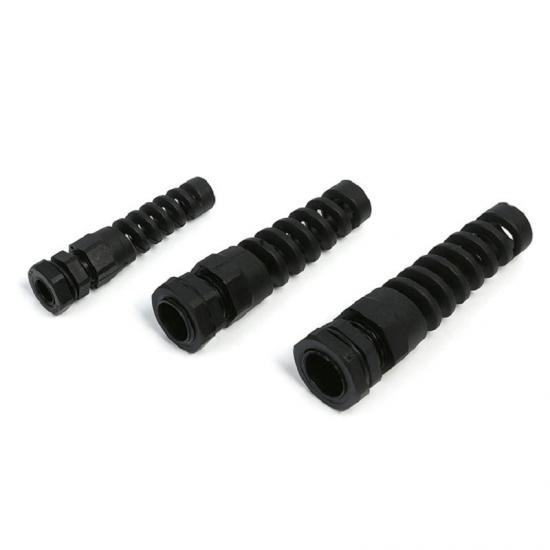

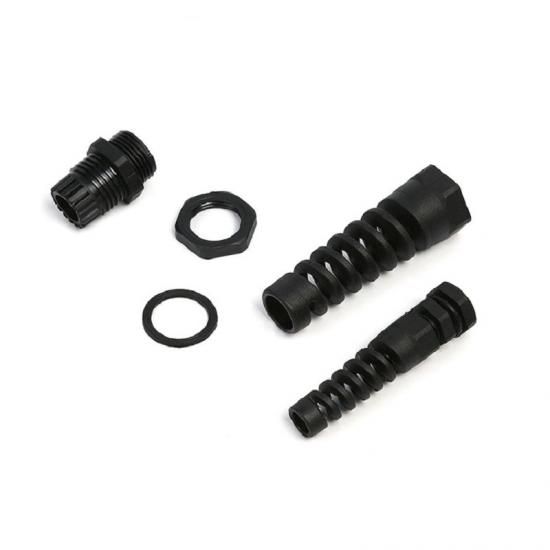

Npt/M/PG/G Nylon Strain Relief Cable Gland

Npt/M/PG Polyamide Strain Relief Cable Gland

Strain relief cable gland with a tough polyamide construction, seal and washer consist of top quality NBR rubber material,they are sealed to IP68, which means it is well protected against dust ingress and moisture, even to the point of shallow immersion. This makes them ideal for harsh environments, or even for outdoor use.

They install quickly and simply with a click and turn action with no thread required. They fit into pre-drilled holes in panels, junction boxes and equipment with ease, dramatically cutting assembly times.

The cable gland is also resistant to UV rays, and their protection from vibration makes them suitable for use with heavy machinery.

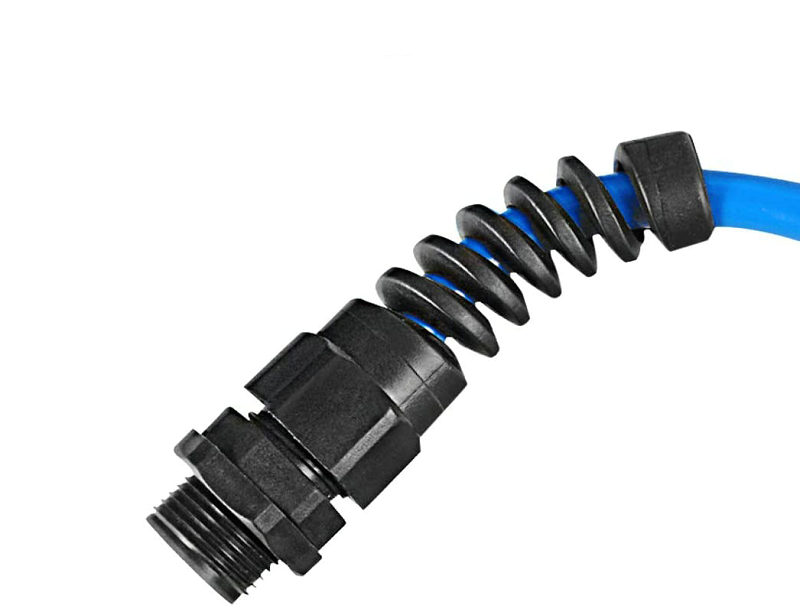

The have an integrated strain relief that offers a high degree of bend protection, which defends the cable connection from wear and tear. This makes them ideal for cable attachment to hand held equipment and flexing machine parts.

What's special about cable strain relief connector?

1.Made of 100% new nylon,not including any recycle material

2.IP68 waterproof rating

3.Integrated strain relief

4.Click fit easy mounting

5.Resistant to UV rays

6.Flame retardant

7.Resistant against light acids and soft lyes

8.Resistant against seawater, benzine and mineral oil

9.Wide adjustable range

10.Wide application

11.Vibration protection

Physical Properties

Application

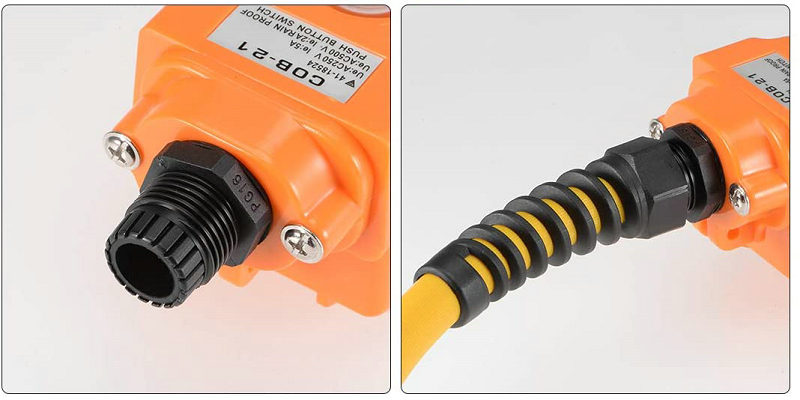

Waterproof cable gland strain relief ideal accessory for junction boxes etc or anything where inserting a cable could cause water to enter into live electrics, using the correct IP68 rated cable compression gland will ensure the item stays waterproof.

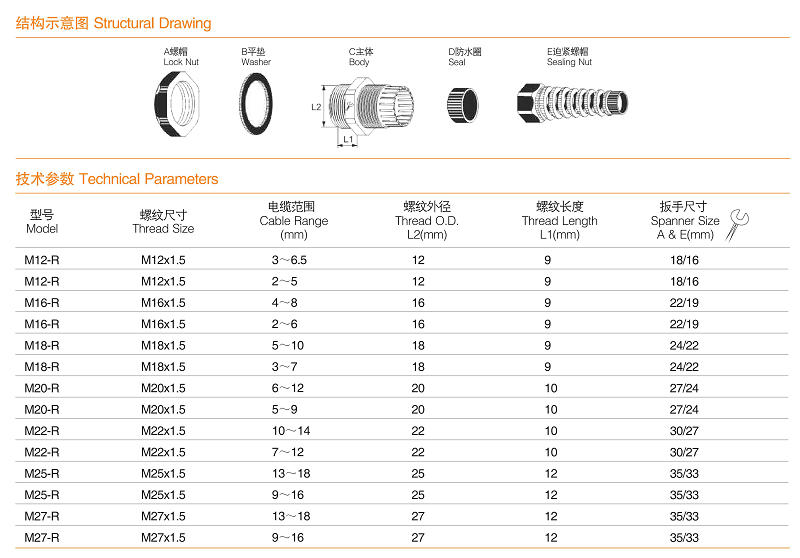

Specification

Metric style

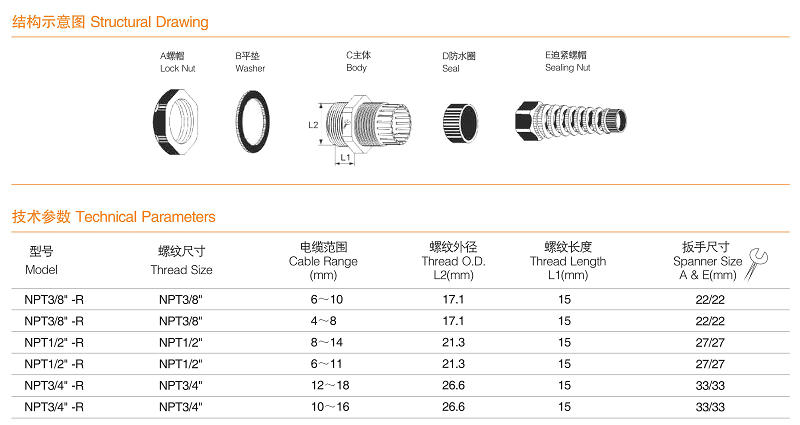

Npt style

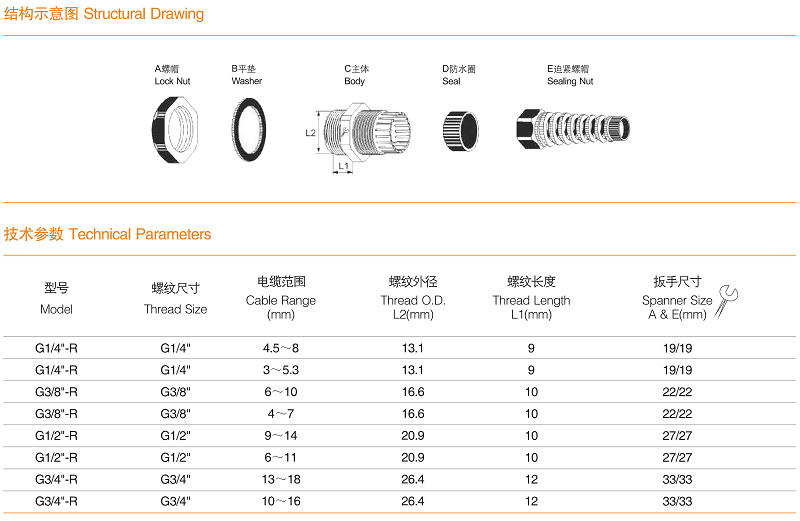

G style

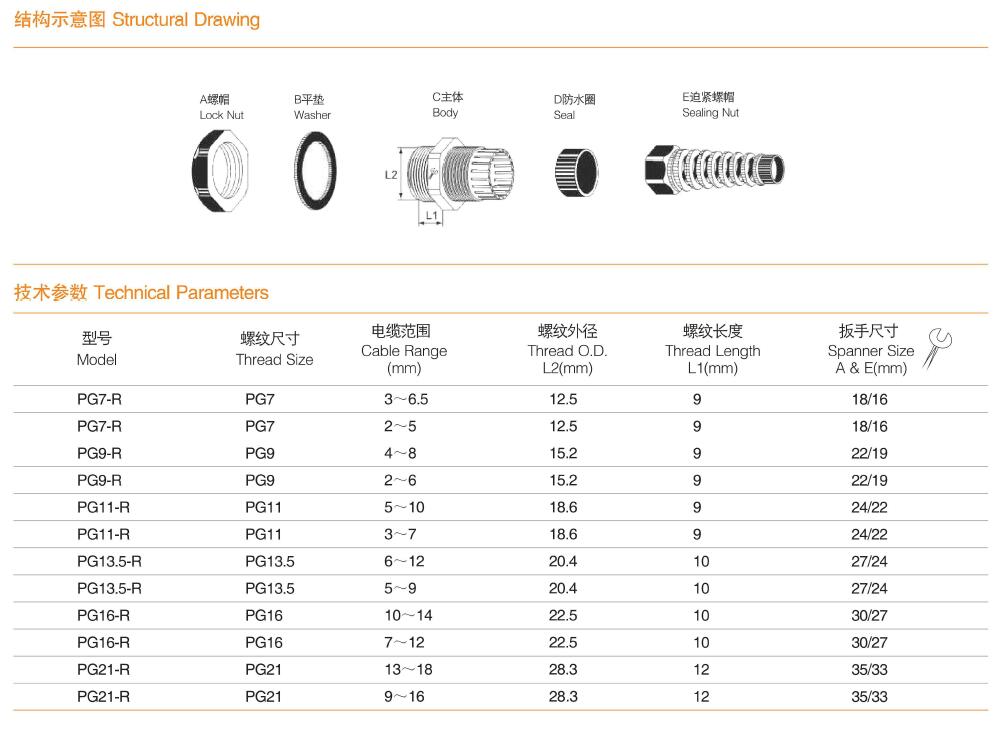

PG style
