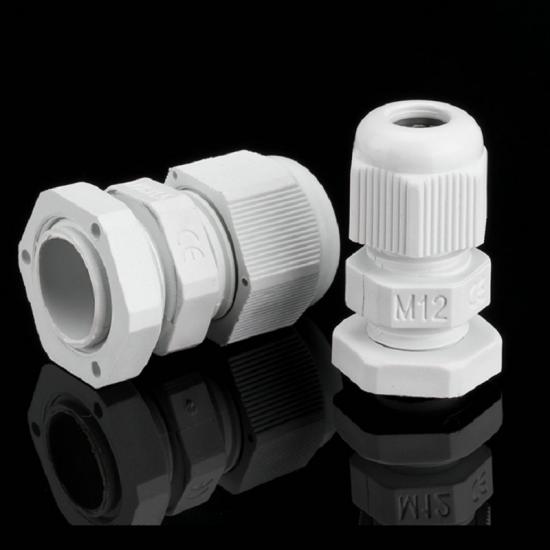

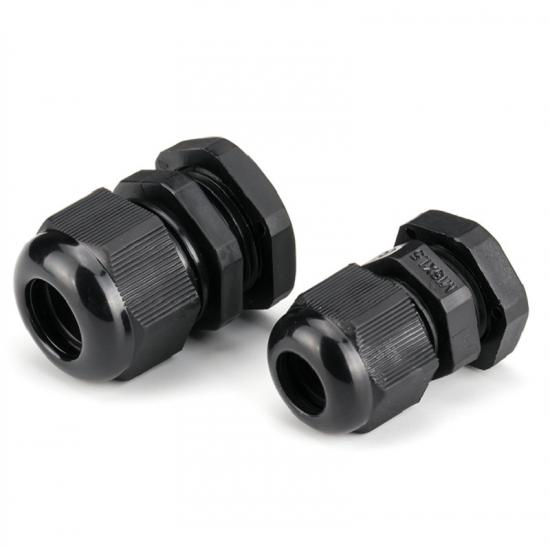

Nylon Long Thread Cable Gland

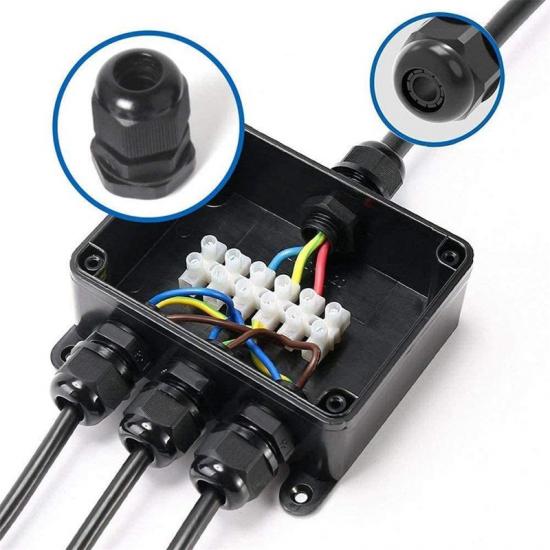

Long thread cable gland are made of high quality nylon plastic, anti-loose structure, reliable connection and long service life.Cable fixing, wiring, mechanical control box, switchboard, electrical appliances, etc.
Thead lengthening design,which is enough to fit panels of most thickness, can hold cable firmly and has a wider cable range;

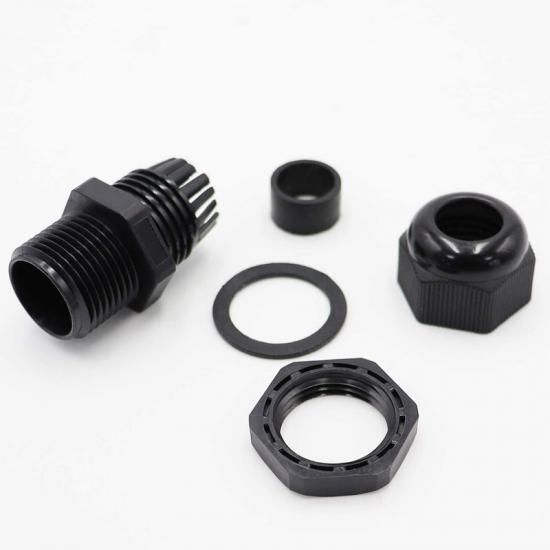

This plastic cable gland is ideal for your project needs.wide and adjustable cable range - Special design of the clamping die and rubber part, wide and adjustable clamping range, strong stretching resistance, no damage to cables and devices.
What's special about waterproof cable glands?
1.Made of 100% new nylon,not including any recycle material

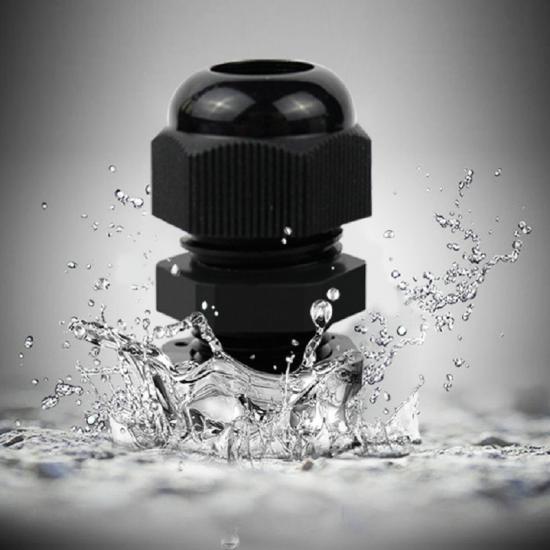

2.IP68 waterproof rating
3.Flame retardant
4.Resistant against light acids and soft lyes
5.Resistant against seawater, benzine and mineral oil
6.Wide adjustable range
7.Wide application
Physical Properties
| Material | PA66 |
| Working Temperature |
-40℃~100℃ |
| Tread Style | Pg,M,Npt |
| Waterproof Rating | IP68 |
|
Flammability |
UL94V2 |
| Available size | Full size |
| Standard Color | Black,Light Grey |
| Colored | Available |
| Certification | UL,ROHS,Reach |
| Cutting Tool | Scissor |
Application
Industrial cable glands widely used in new energy power generation, new energy trains, thermal power generation, nuclear power plants, power collection, automotive wiring harness, machine tools, automatic instruments, motors, engineering installations, mechanical arms, etc.
Specification
Part No
Thread Size
Cable Range (mm)
Thread O.D. L2(mm)
Thread Length L1(mm)
Spanner Size A&E(mm)
CG-PA-PG7-L
PG7
3~6.5
12.5
15
18/16
CG-PA-PG7-L
PG7
2~5
12.5
15
18/16
CG-PA-PG9-L
PG9
4~8
15.2
15
22/19
CG-PA-PG9-L
PG9
2~6
15.2
15
22/19
CG-PA-PG11-L
PG11
5~10
18.6
15
24/22
CG-PA-PG11-L
PG11
3~7
18.6
15
24/22
CG-PA-PG13.5-L
PG13.5
6~11
20.4
15
27/24
CG-PA-PG13.5-L
PG13.5
5~9
20.4
15
27/24
CG-PA-PG16-L
PG16
10~13
22.5
15
30/27
CG-PA-PG16-L
PG16
7~12
22.5
15
30/27
CG-PA-PG19-L
PG19
12~15
24
15
30/28
CG-PA-PG19-L
PG19
10~12
24
15
30/28
CG-PA-PG21-L
PG21
13~18
28.3
15
35/33
CG-PA-PG21-L
PG21
9~16
28.3
15
35/33
CG-PA-PG25-L
PG25
16~21
30
15
37/35
CG-PA-PG25-L
PG25
13~18
30
15
37/35
CG-PA-PG29-L
PG29
18~25
37
15
45/42
CG-PA-PG29-L
PG29
13~20
37
15
45/42
CG-PA-PG36-L
PG36
22~32
47
18
58/52
CG-PA-PG36-L
PG36
20~26
47
18
58/52
CG-PA-PG42-L
PG42
32~38
54
20
62/58
CG-PA-PG42-L
PG42
25~31
54
20
62/58
CG-PA-PG48-L
PG48
37~44
59.3
20
70/64
CG-PA-PG48-L
PG48
29~35
59.3
20
70/64
