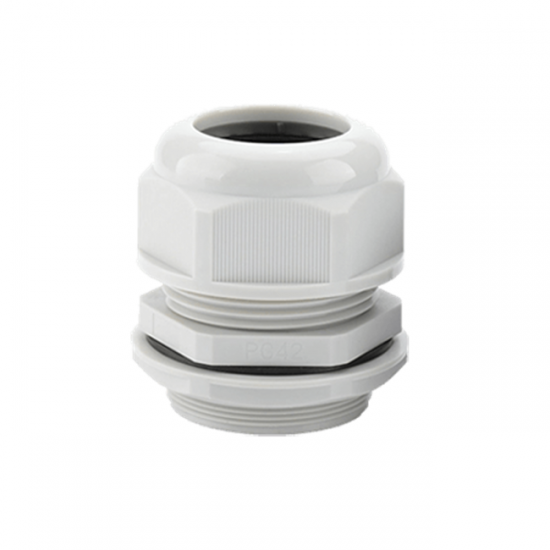

The tensile strength of reinforced nylon MG cable gland is waterproof and dustproof, acid and alkali resistance, grease and general solvents.
The major purpose is to maintain the line clear of obstructions, keep the cable sealed, and guarantee that the insulation level at the cable joint is adequate for safe and reliable operation. If the seal fails, not only would oil leak cause the oil-impregnated paper to dry up, but moisture will also permeate the cable, reducing the paper's insulating performance.
Features

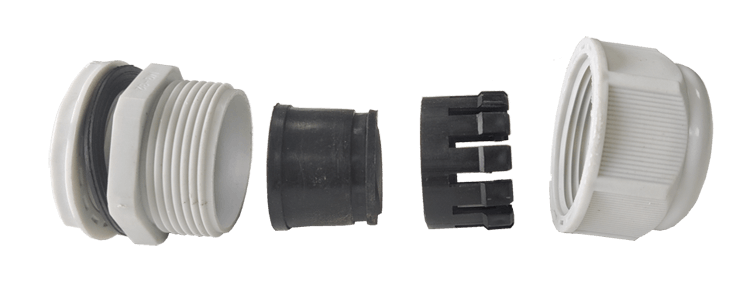

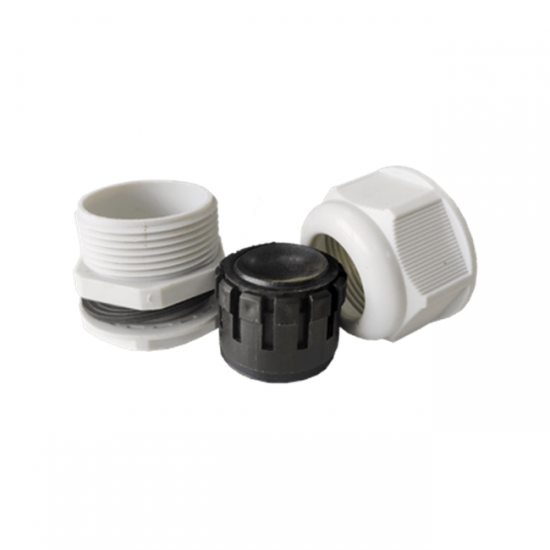

The claws and seals of excellent design,sealing nut hace a 'click'
sound and re-open ,can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.
Physical Properties
| Material | PA66 |
| Working Temperature |
-40℃~100℃ |
| Tread Style | Metric |
| Waterproof Rating | IP68 |
|
Flammability |
UL94V2 |
| Standard Color | Black, Light Grey |
| Size Range | MG12~MG90 |
| Colored | Available |
| Certification | UL,ROHS,Reach |
Specification
Part No
Thread Size
Cable Range (mm)
Thread O.D. L2(mm)
Thread Length L1(mm)
Spanner Size A&E(mm)
CG-PA-PG7
PG7
3~6.5
12.5
9
18/16
CG-PA-PG7
PG7
2~5
12.5
9
18/16
CG-PA-PG9
PG9
4~8
15.2
9
22/19
CG-PA-PG9
PG9
2~6
15.2
9
22/19
CG-PA-PG11
PG11
5~10
18.6
9
24/22
CG-PA-PG11
PG11
3~7
18.6
9
24/22
CG-PA-PG13.5
PG13.5
6~11
20.4
10
27/24
CG-PA-PG13.5
PG13.5
5~9
20.4
10
27/24
CG-PA-PG16
PG16
10~13
22.5
10
30/27
CG-PA-PG16
PG16
7~12
22.5
10
30/27
CG-PA-PG19
PG19
12~15
24
10
30/28
CG-PA-PG19
PG19
10~12
24
10
30/28
CG-PA-PG21
PG21
13~18
28.3
12
35/33
CG-PA-PG21
PG21
9~16
28.3
12
35/33
CG-PA-PG25
PG25
16~21
30
12
37/35
CG-PA-PG25
PG25
13~18
30
12
37/35
CG-PA-PG29
PG29
18~25
37
12
45/42
CG-PA-PG29
PG29
13~20
37
12
45/42
CG-PA-PG36
PG36
22~32
47
15
58/52
CG-PA-PG36
PG36
20~26
47
15
58/52
CG-PA-PG42
PG42
32~38
54
18
62/58
CG-PA-PG42
PG42
25~31
54
18
62/58
CG-PA-PG48
PG48
37~44
59.3
18
70/64
CG-PA-PG48
PG48
29~35
59.3
18
70/64
CG-PA-PG63
PG63
42~50
71
30
83/77
CG-PA-PG63
PG63
32~40
71
30
83/77
