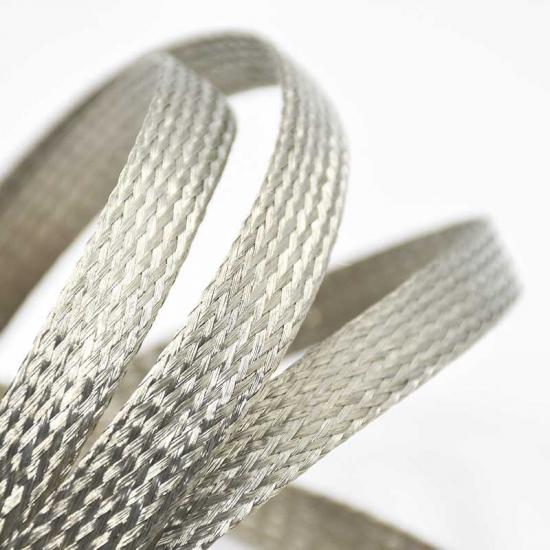

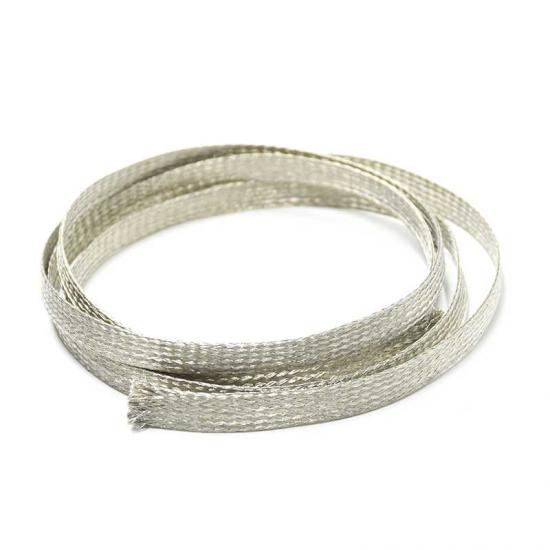

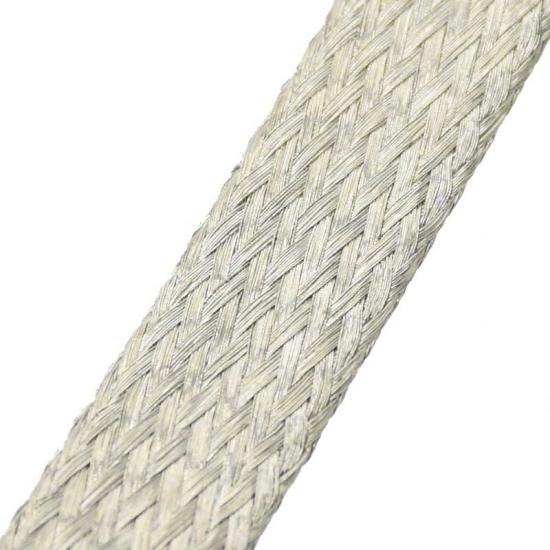

EMI Tinned Copper Metal Braided Cable Sleeve

This metal braided wire sleeve is made of tinned copper filament. It has scalability, wear resistance, anti-electromagnetic interference, and conductivity. It can tie all kinds of irregular wires, keep soft in a large temperature range, and its unique mesh shape has good heat dissipation.


  • Model No:

    MBS-TC
  • Material:

    Tinned Copper Wire & Nylon Multifilament
  • Working Temperature:

    -40℃ to 150℃
  • Flammability:

    Self-extinguishing
  • Standard Color:

    Tin-plated copper
  • Certification:

    Rohs,Reach
  • Cutting Tool:

    Scissor
Product Details



Metal EMI braided cable sleeve is made from tinned copper which provides great EMI, RFI, and ESD protection as well as cut and abrasion resistance. Strong metal fibers made from tinned copper create our metal braid sleeving that can be used in automotive and industrial applications to dress-up engines, hose support, or wire protection.



Metal shielding braided wire sleeve is suitable for use in shielding electric cable from abrasion and radio frequency interference, it provides full coverage and is great for covering and protecting hoses on hot rods and motorcycles.




Physical Properties


Physical Properties Details
Material  Tinned Copper Wire & Nylon Multifilament
Working Temperature -40°C ~ +150°C
Flammability  Self-extinguishing
ShieldingEffectiveness  ≥75 dB (30 MHz-3GHz) per GB/T 30142-2013.
Standard Color  Tin-plated Copper
Rohs Compliant  Yes
Reach Compliant  Yes
Cutting Tool  Scissor




What's special about the EMI tinned copper braided sleeving?


1. Made of tinned copper filament.

2. Will does not retain moisture.

3. Resists Abrasion, Chemicals, and UV.

4. EMI, RFI, and ESD protection.

5. Cuts with Shears or Serrated Scissors.

6. Provides Full Coverage.

7. Can be used for grounding straps.



Specification


Part No Flat Width(W) Expanded Range(mm) Packing Length (m/spool)
Inch mm Min.(I) Max.(O)
MBS-TC-003-TC 1/8" 3±1 1 4 250
MBS-TC-006-TC 1/4" 6±1 5 8 200
MBS-TC-008-TC 5/16" 8±2 6 12 200
MBS-TC-010-TC 3/8" 10±2 7 17 150
MBS-TC-012-TC 1/2" 12±2 8 20 100
MBS-TC-016-TC 5/8" 16±2 10 20 100
MBS-TC-020-TC 3/4" 20±2 13 26 50
MBS-TC-025-TC 1" 25±2 18 33 50
MBS-TC-032-TC 1-1/4" 32±2 20 50 50
MBS-TC-038-TC 1-1/2" 38±2 30 60 50
MBS-TC-045-TC 1-3/25" 45±2 35 75 25
MBS-TC-050-TC 2" 50±2 40 80 25




Application

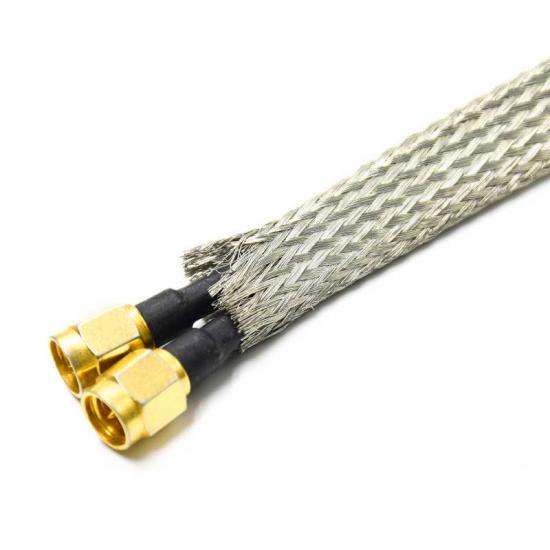

EMI shield sleeve product has a variety of industrial applications in a high-speed train,          underground, aerospace, and high-tech special products. EMI metal-braided sleeve is widely used in computer power lines, audio and video lines, HDMI lines, high-speed railway harnesses, automobile harnesses, aviation harnesses, etc.
