Basalt Sleeve

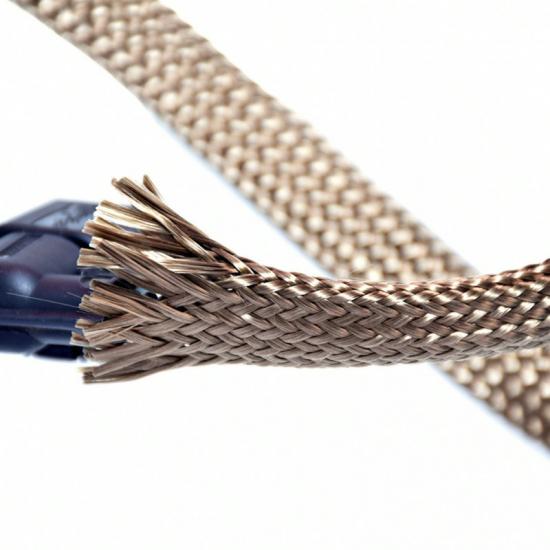

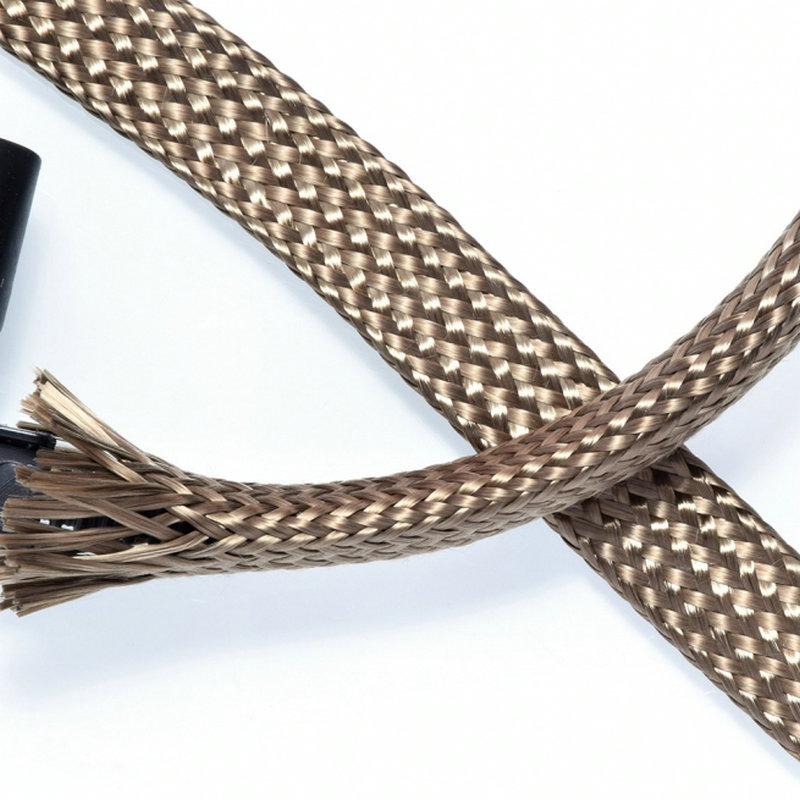

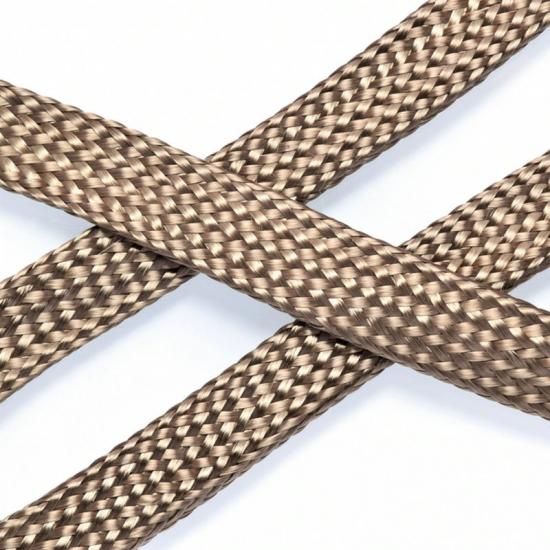

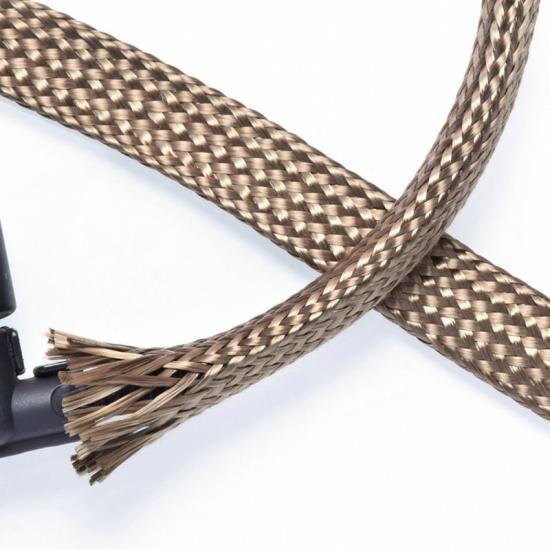

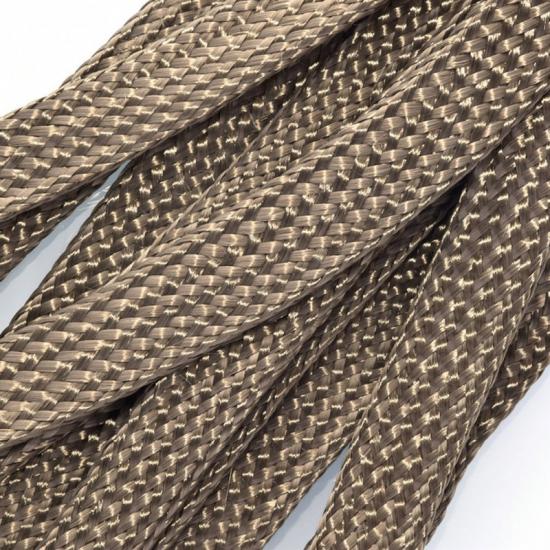

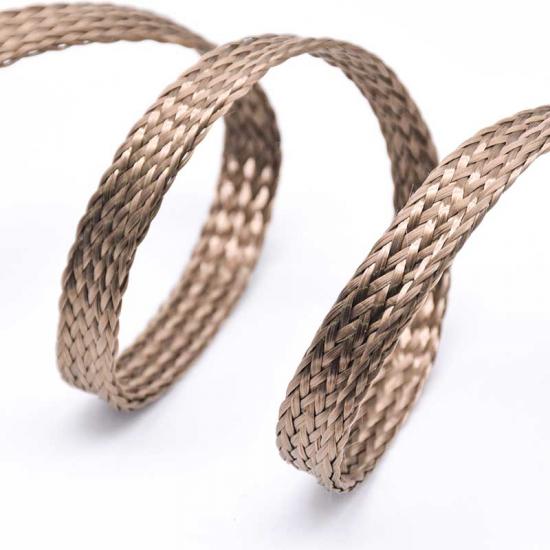

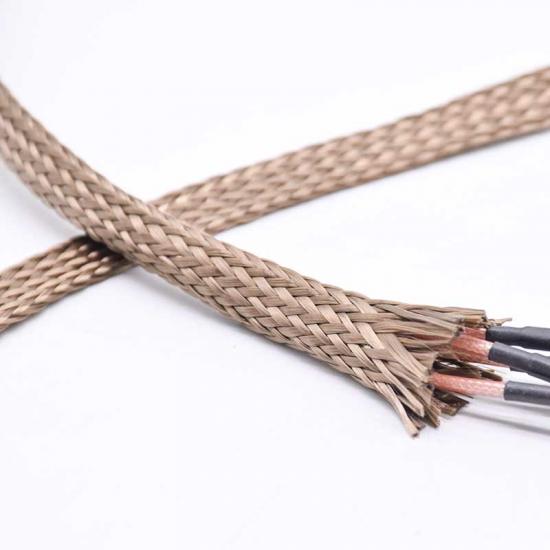

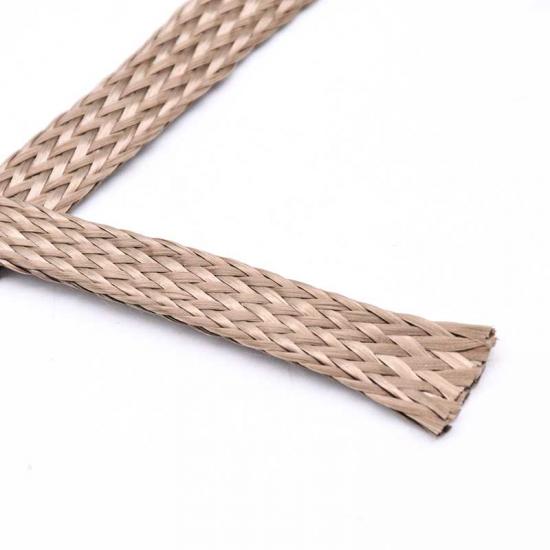

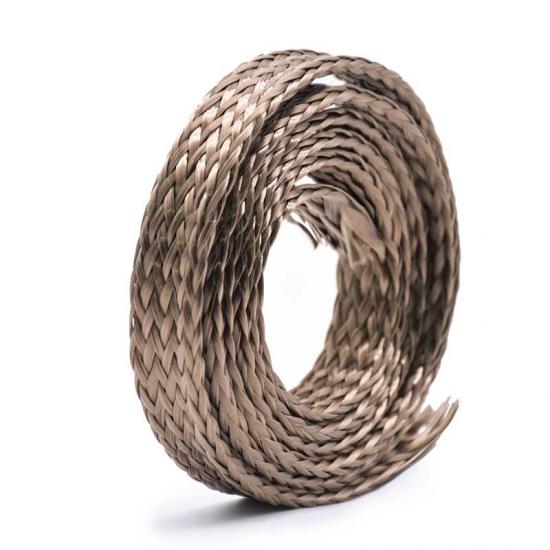

Basalt Fiber Braided Sleeve

Basalt fiber sleeve is a highly conformable sleeve which provides excellent thermal protection for engine and generator exhaust piping for automobiles, marine engines and generators, bus, construction and mining equipment.
  • Item no.:

    MJ-BFBS
  • Material:

    Basalt fiber
  • Working Temperature:

    -269℃ to 650℃
  • Melt Point:

    1400℃
  • Flammability:

    V0
  • Standard Color:

    Brown
  • Certification:

    ROHS
  • Cutting Tool:

    Scissor
  • Size:

    3mm~50mm
  • Product Details

Basalt Fiber Braided Sleeve


Basalt sleeve made of texturized basalt yarns trap greater amounts of air and demonstrates better insulation properties and great fullness. It is engineered for protection from temperatures up to 1,200°F. Made of a tubular braiding to obtain a extremely elastic and flexible sleeve.

This sleeve resistant most acids, alkalis and is unaffected by most bleaches, solvents. It is highly flexible and conformable.


basalt sleeve


What's the special of basalt fiber braided sleeve


1.Cuts Easily With Scissor
2.Exceptional Thermal Insulation
3.Great Appearance
4.Excellent Chemical Resistance
5.Non-Flammable
6.100% Inorganic


Physical properties


Material Basalt fiber
Working temperature -269℃ to 650℃
Melt point 1400℃
Standard color Brown
Certificated Rohs
Cutting Tool Scissor

Specification


Part No Size(mm) Expansion Range(mm)
Packing Length
Min(I) Max(O)
MJ-BFBS003 3.0 1.0 4.0 500m/spool
MJ-BFBS006 6.0 5.0 8.0 300m/spool
MJ-BFBS008 8.0 6.0 10.0 250m/spool
MJ-BFBS010 10.0 7.0 13.0 250m/spool
MJ-BFBS012 12.0 8.0 16.0 200m/spool
MJ-BFBS015 15.0 10.0 20.0 200m/spool
MJ-BFBS020 20.0 14.0 26.0 150m/spool
MJ-BFBS025 25.0 18.0 33.0 150m/spool
MJ-BFBS030 30.0 20.0 39.0 100m/spool
MJ-BFBS040 40.0 30.0 52.0 100m/spool
MJ-BFBS050 50.0 40.0 65.0 100m/spool


Application

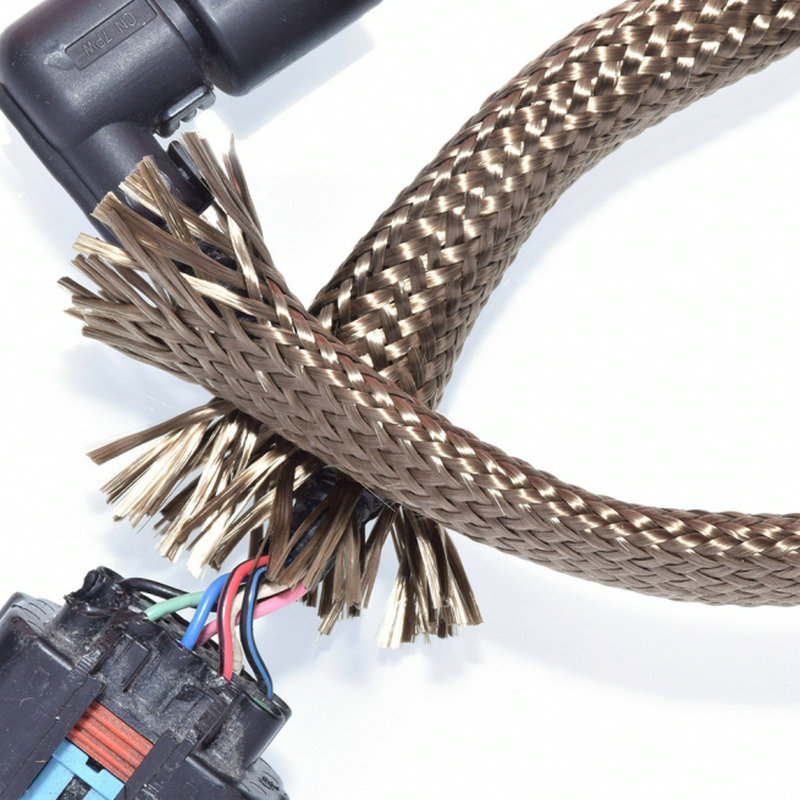

Braided basalt fiber sleeve provides excellent protection for industrial wires, cables, hoses (hydraulics), tube and pipes and also provides thermal insulation and personnel protection.


Basalt fiber sleeve

Related products
Shield Expandable Sleeving
Flexo Copper Foil Metal Shield Expandable Braided Sleeving
Flexo Shield cable sleeving is an expandable, high performance sleeving that provides a high level of EMI shielding.This cable sleeve cancels frequencies from 10 MHz to 1 GHz and reduces attenuation up to 20% for a clean, consistent signal. It is also built with an aramid core, providing ample protection from cutting and abrasion.

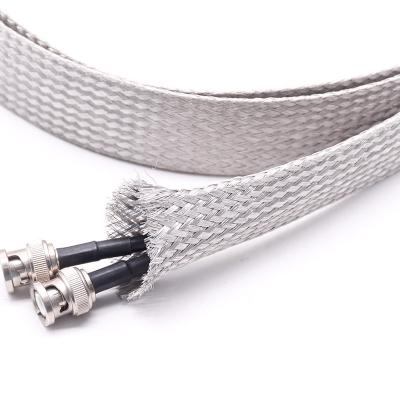

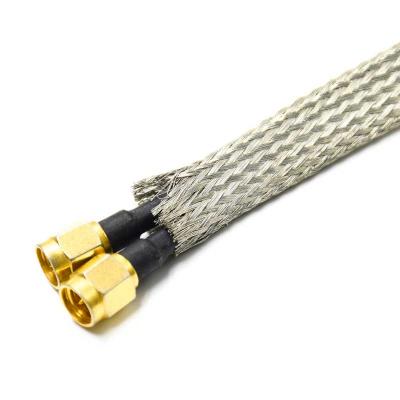

Copper Braided Sleeve
EMI Tinned Copper Metal Shield Expandable Braided Sleeving
Metal EMI braided sleeving is made from tinned copper which provides great EMI, RFI and ESD protection as well as cut and abrasion resistance. Strong metal fibers made from tinned copper create our metal braid sleeving that can be used in automotive and industrial applications to dress-up engines, hose support or wire protection.
Kevlar braided sleeving
Flexo Kevlar Expandable Braided Cable Sleeve
MJ Kevlar braided sleeving is a soft, flexible cable sleeving that’s perfect for bundling and protecting vulnerable components from the most extreme environmental conditions.

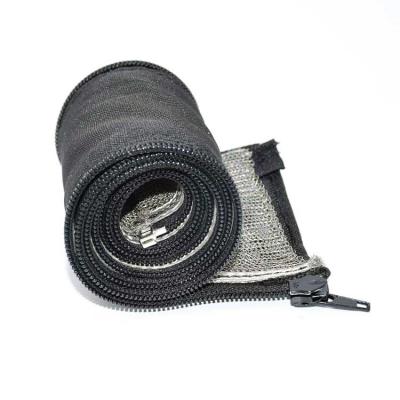

Zipper Shielding Wrap
Emi Wire Shielding Sleeve With Zipper
Zipper Shield sleeving made of a highly-flexible tinned copper shielding mesh using an internal shield overlap, a grounding strap and a heavy duty zipper wrap. It is not only providing excellent EMI shielding, but also could anti-noisy, flame-retardant and anti-abrasion.

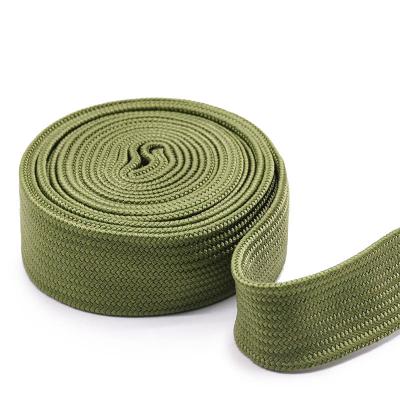

Nylon flat filament braided sleeving
Expandable Flat Filament Nylon Braided Sleeving
Nylon flat filament braided sleeve are made of tough, strong Nylon 6.6 flat filaments, which designed for bundling, managing, and protecting wires, cables, and hoses. It features braided, flat-filament nylon construction.

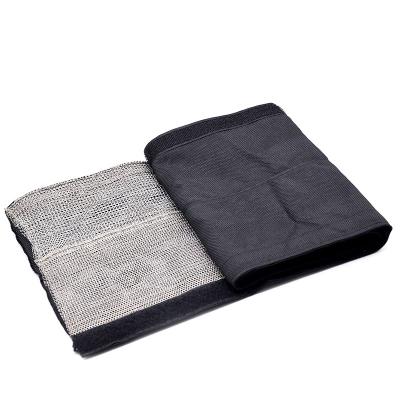

Emi Shielding Sleeve
Velcro EMI Cable Shielding Sleeve
Velcro shielding wrap made of polyester multifilament wrap,nylon zippre, with highly flexible tinned copper shielding mesh,It not only provides excellent EMI Shielding, but also with high performance of noise reduction, flame retardant and anti-abrasion.
Carbon Fiber Sleeve
Light Weight Braided Carbon Fiber Sleeve
Carbon fibre braided sleeve made from continuously woven biaxial carbon fibre. Which is extreme light-weight, 3K carbon fibre in a 2/2 twill weave pattern and is suitable for a range of applications including making tubing and reinforcing tubes, rods and poles.

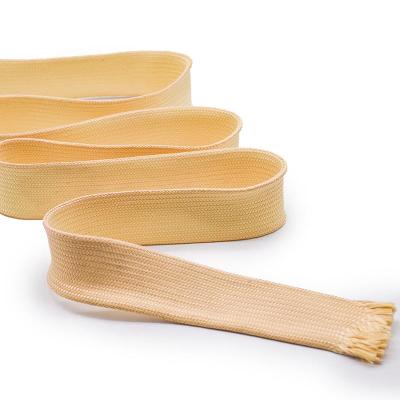

Nomex Sleeving
