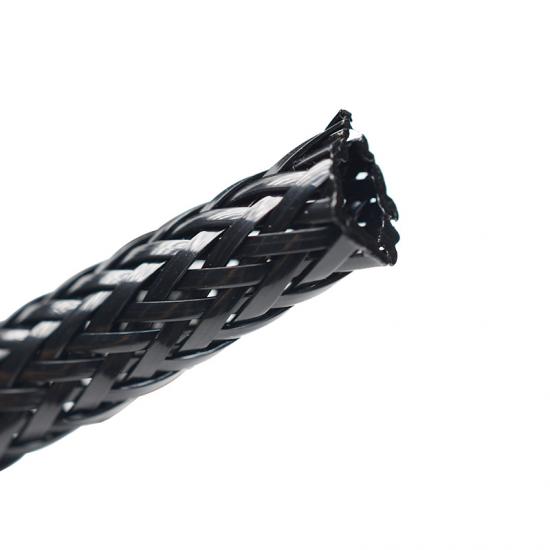

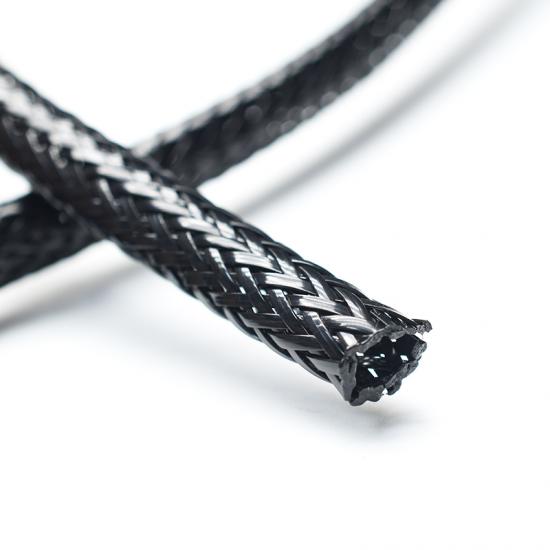

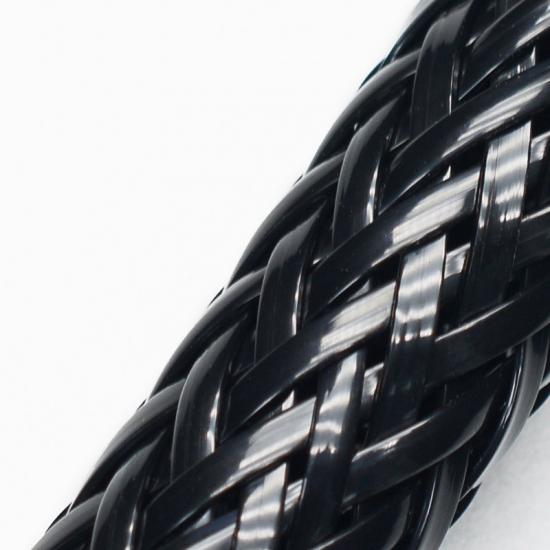

Expandable Flat Filament Nylon Braided Sleeving
E-FLEX® Heavy-Duty Nylon Flat Filament Braided Sleeving is precision-engineered from high-tenacity nylon flat monofilaments, specifically developed for rugged environments where standard round-filament sleeves are insufficient. By utilizing a unique flat-braid construction, this sleeving offers near-total surface coverage and a smooth, snag-free profile that significantly bolsters resistance against friction, punctures, and mechanical wear.
Unlike bulky fabric hoses, its breathable architecture allows moisture to dissipate rapidly, effectively preventing the buildup of rot, fungus, and internal corrosion. Whether shielding hydraulic hoses on heavy machinery or organizing wire harnesses in automotive and marine engines, E-FLEX® Nylon Flat Filament Sleeving provides a durable, armored, yet flexible barrier that extends product life and ensures a professional, high-end finish.
Why Choose E-FLEX® Flat Filament?
Standard braided sleeves often leave gaps when expanded, exposing your cables to debris and friction. E-FLEX® uses industrial-grade flat filaments that overlap during expansion, ensuring that your hoses remain protected even under tension. It is the cost-effective, high-performance alternative for operators who demand reliability without compromise.
Physical properties
| Material | PA |
| Working Temperature | -60℃~+160℃ |
| Melt Point | 256+(-)10℃ |
| Flammability |
UL94 V2 |
|
Abrasion Resistance |
Extremely High |
| Standard Color | Black |
|
ROHS Compliant |
Yes |
| Reach Compliant |
Yes |
| Halogen Free | Yes |
| UV Resistant | Yes |
| Cutting Tool | Hot Knife |
Specification
Part No
Flat Width(W)
Expanded Range(mm)
Inch
mm
Min.(I)
Max.(O)
BRS-PAFF-008-BK
5/16"
8±2
6
12
100
BRS-PAFF-012-BK
1/2*
12±2
10
16
100
BRS-PAFF-019-BK
3/4*
19±2
16
25
100
BRS-PAFF-032-BK
1-1/4"
32±3
28
38
50
BRS-PAFF-045-BK
1-3/4"
45±3
38
59
50
BRS-PAFF-050-BK
2"
50±3
44
62
25
BRS-PAFF-064-BK
2-1/2"
64±3
45
75
25
Application
Flat filament expandable braided sleeving that can be used in applications such as automotive, marine and construction to protect lines on forklifts, welding machines and hydraulic heavy equipment.
