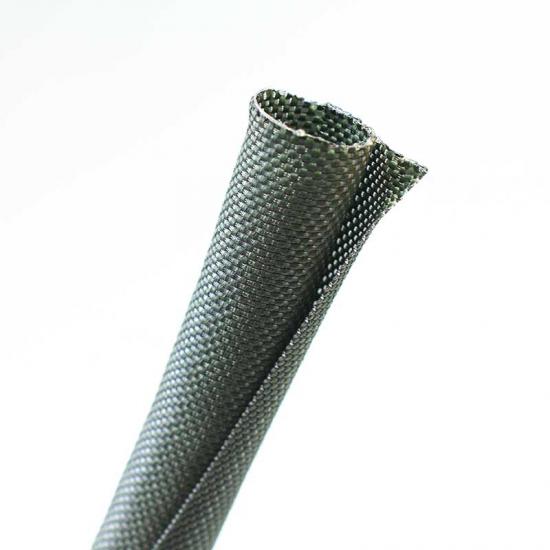

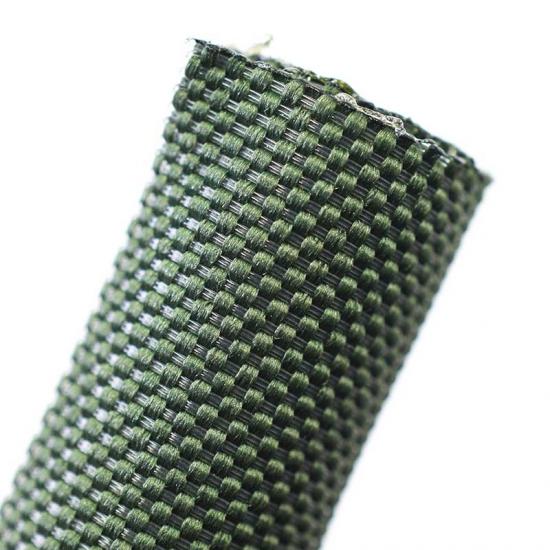

Nomex self-closing braided sleeving is made using Nomex fiber and PEEK mono-filament, which features an outstanding heat resistance and high strength.
This braided wrap will work normally at temperatures up to 250℃ for long periods of time.
Our braided wrap sleeving features a higher mechanical toughness, self-extinguishing, acid resistance, oil and alkali resistance, and lower density.

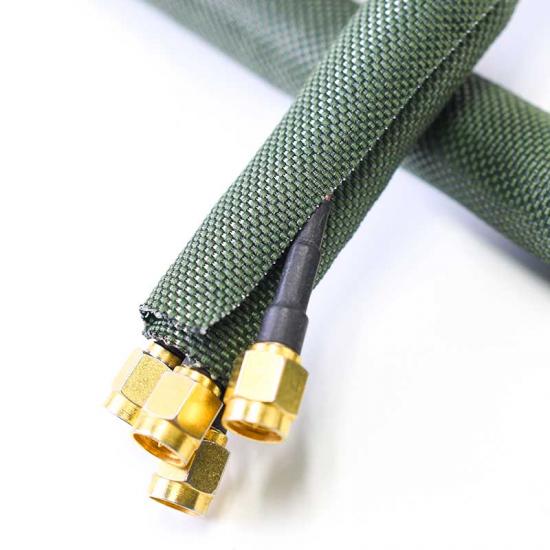

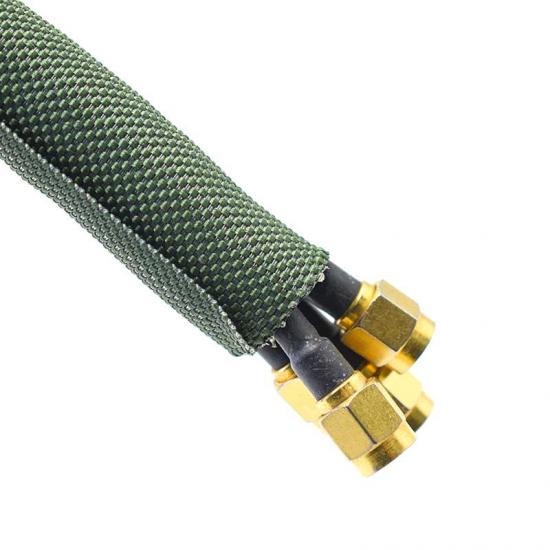

It is primarily used to protect hoses, antennas, and cable harnesses against high temperature, flame or mechanical abrasion. This wire harness protection product is also resistant to GAMMA and X-RAYS, and is known for its excellent wear resistance, oil and waterproof performance, moisture resistance and flow material impermeabil.
Physical properties
| Material |
Nomex Fiber+PEEK |
| Working temperature |
-55° to 260°C |
| Standard color |
Army green with white |
| Certification | Rohs, halogen free |
| Cutting tool | Scissor, Hot Knife |
Specification
| Part No. |
Inner diameter(d) |
Edge overlap (%) |
Packing Length |
| STW-NM-05-AG | 1~5 | 18%~50% | 150m/Spool |
| STW-NM-08-AG | 5~8 | 18%~50% | 100m/Spool |
| STW-NM-13-AG | 8~13 | 18%~50% | 50m/Spool |
| STW-NM-16-AG | 13~16 | 18%~50% | 25m/Spool |
| STW-NM-19-AG | 16~19 | 19%~50% | 25m/Spool |
| STW-NM-25-AG | 19~25 | 19%~50% | 25m/Spool |
| STW-NM-32-AG | 25~32 | 19%~50% | 25m/Spool |
| STW-NM-40-AG | 32~40 | 19%~50% | 25m/Spool |
