Carbon Fibre Braided Sleeve for Industry

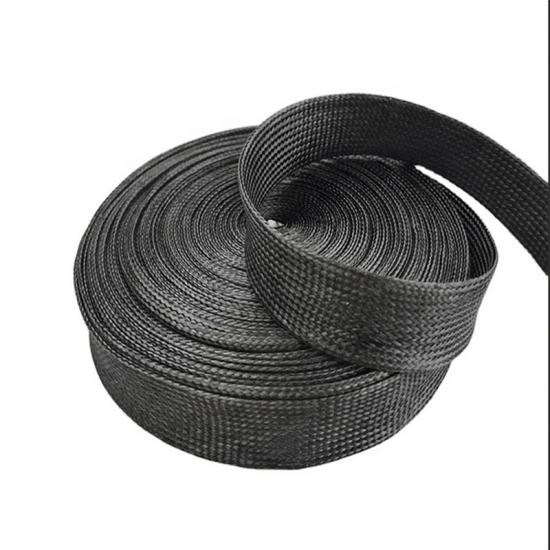

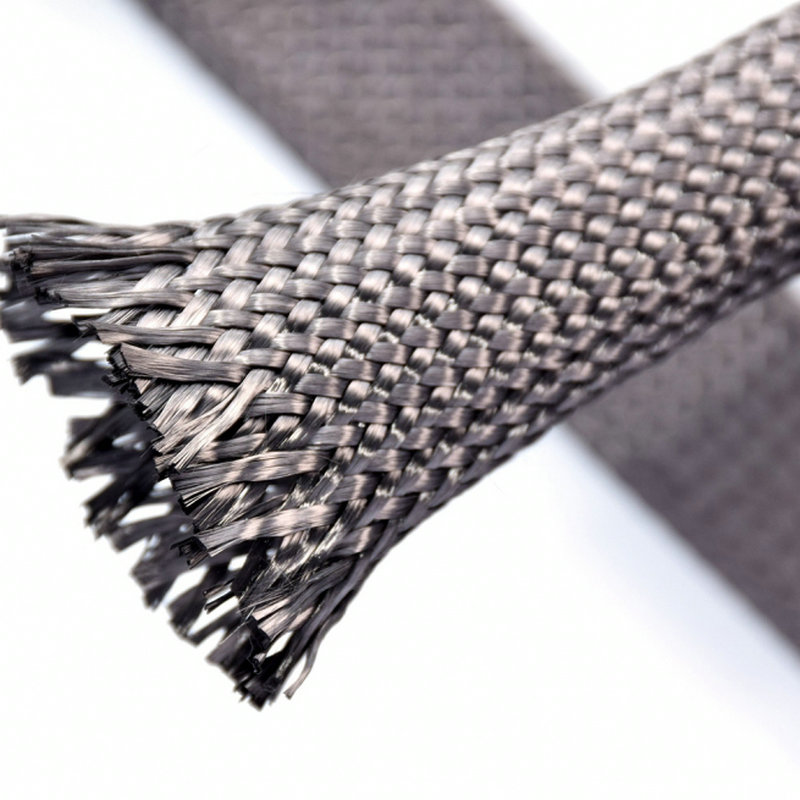

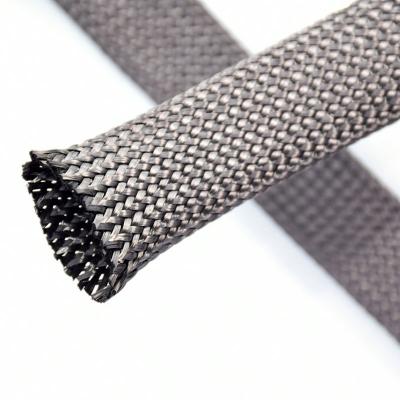

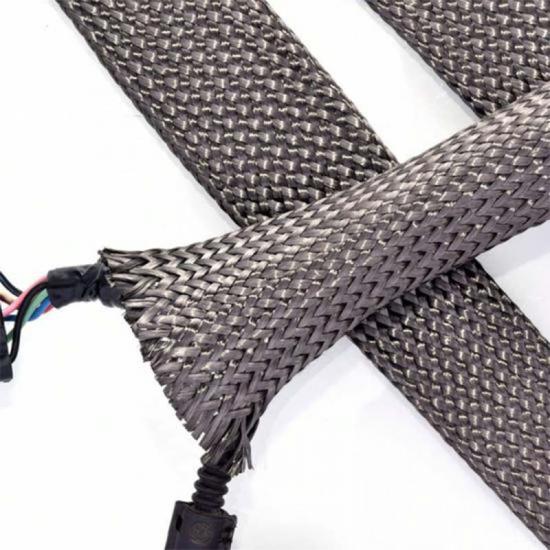

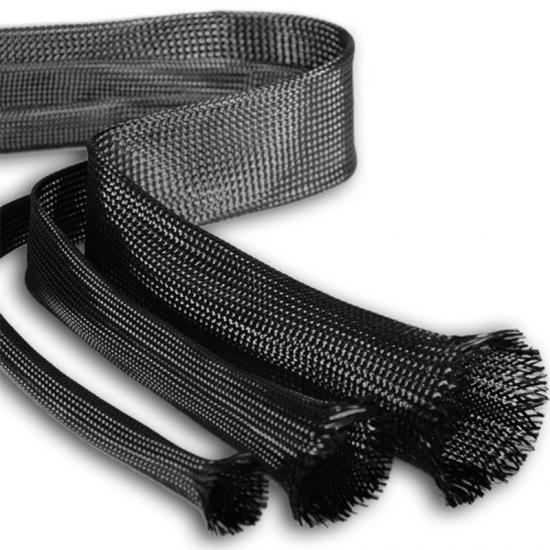

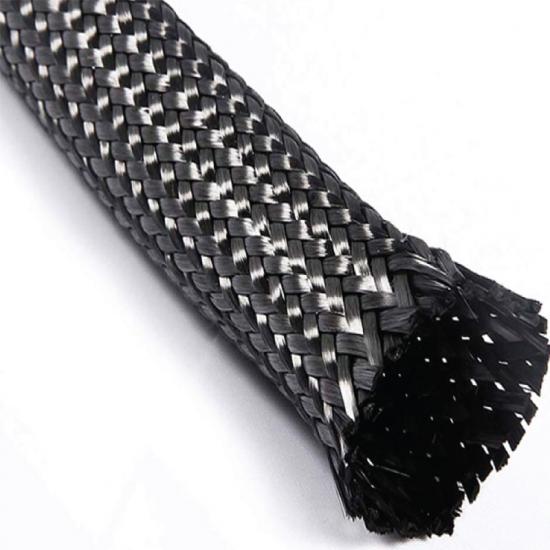

E-FLEX® Carbon Fiber Braided Sleeving – Lightweight, yet incredibly strong, this high-performance sleeving offers exceptional protection for cables, hoses, brake lines, hydraulic lines, and other tubular components. Its distinctive 2x2 twill weave not only enhances durability but also delivers a sleek, high-tech appearance. Easily slipped over prepared mandrels or cylinders, it allows for the creation of straight or tapered tubing, making installation simple and adaptable to a wide range of industrial and premium applications.
Certifications
What's the special of our carbon sleeve?
1.Reinforcing protection wrap
2.First quality certified
3.Provides reliable insulation for delicate wires and components
4.Insulates delicate wires & components
5.UV-resistant for long-term outdoor performance
Physical properties
| Material | Carbon Fiber | ||||||||
| Working Temperature | -269℃~ +500℃ | ||||||||
| Flammability | Non Flammable | ||||||||
| Abrasion Resistance | Medium | ||||||||
| Standard Color | Black | ||||||||
| Certification | Rohs | ||||||||
| Cutting Tool | Scissor | ||||||||
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-CF-003-BK | 1/8” | 3 | 1 | 4 | 500 |
| BRS-CF-006-BK | 1/4” | 6 | 5 | 8 | 300 |
| BRS-CF-008-BK | 5/16” | 8 | 6 | 10 | 200 |
| BRS-CF-010-BK | 3/8” | 10 | 7 | 13 | 200 |
| BRS-CF-012-BK | 1/2” | 12 | 8 | 16 | 200 |
| BRS-CF-015-BK | 5/8” | 15 | 10 | 20 | 200 |
| BRS-CF-020-BK | 3/4” | 20 | 14 | 26 | 150 |
| BRS-CF-025-BK | 1” | 25 | 18 | 33 | 100 |
| BRS-CF-030-BK | 1-1/4” | 30 | 20 | 39 | 100 |
| BRS-CF-040-BK | 1-1/2” | 40 | 30 | 52 | 100 |
| BRS-CF-050-BK | 2” | 50 | 40 | 65 | 100 |
Application
With carbon fiber popularity quickly rising because of its extreme strength and light-weight properties, you can find this combination material in high-tech applications such as, military, aerospace, formula cars, exotic bikes and vehicles, and many other products.
