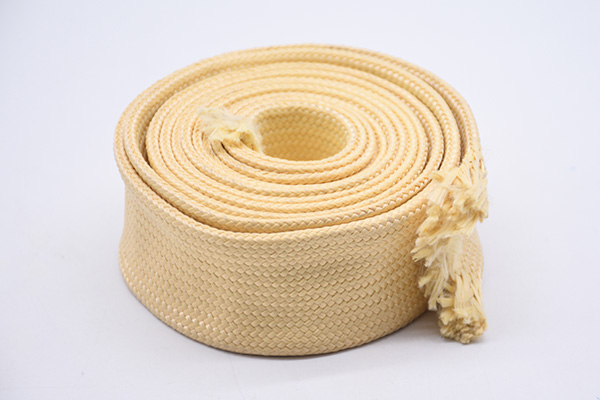

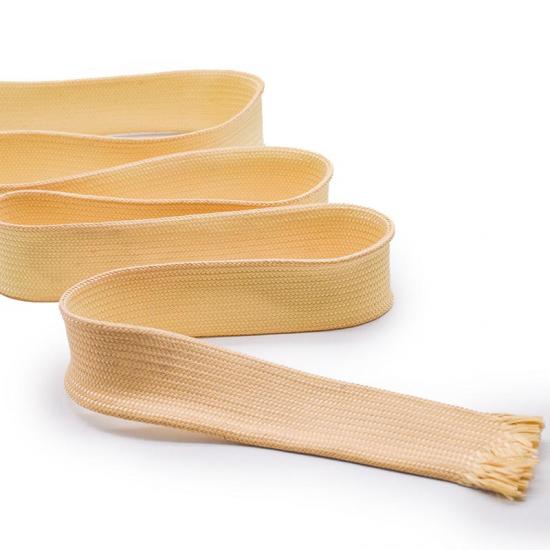

Kevlar Expandable Braided Cable Sleeve
Kevlar sleeving braided from kevlar fiber,which is 20 times stronger than the steel wire in same diameter.
Kevlar braided sleeving provides extreme strength and durability, yet is lightweight and easy to install, high cut, chemical and abrasion resistance , does not melt, burn or support combustion.
It ideal for extra heavy duty applications in the most extreme environmental conditions
What's special about kevlar cable sleeve?
1.Cuts with kevlar shears
2.Will not melt, burn or support combustion
3.High cut resistance
4.Extra heavy duty
5.Stays soft and pliable
6.Excellent abrasion resistance.
7.Good chemical resistance.
8.Thermally stable.
9.Easy to install.
Physical Properties
| Material | Kevlar fiber |
| Working Temperature |
-170℃ to 250℃ |
| Standard Color | Yellow |
| Certification | ROHS |
| Cutting Tool |
Aramid Shears |
Specification
Nominal Size
(mm)
Expanded Range
(mm)
Packing Length
(m/spool)
500
200
Part No
Min(I)
Max(O)
BRS-KV-003-YL
3
1
4
BRS-KV-006-YL
6
5
8
300
BRS-KV-008-YL
8
6
10
250
BRS-KV-010-YL
10
7
13
250
BRS-KV-012-YL
12
8
16
200
BRS-KV-015-YL
15
10
20
BRS-KV-020-YL
20
14
26
150
BRS-KV-025-YL
25
18
33
150
BRS-KV-030-YL
30
20
39
100
BRS-KV-040-YL
40
30
52
100
BRS-KV-050-YL
50
40
65
100
Application
Kevlar protective sleeve offers outstanding abrasion resistance for cables and hoses in aerospace and other high-tech applications,especially uses for aerospace, marine, and automotive industry applications
