Everything You Need To Protect Your Cable

Kevlar braided sleeving

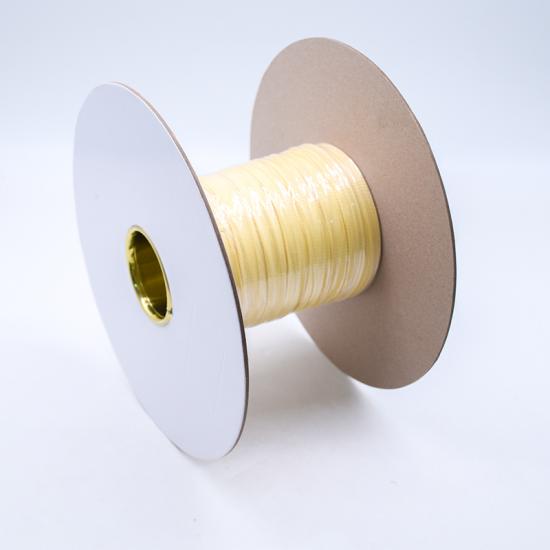

Kevlar Expandable Braided Cable Sleeve

MJ Kevlar braided sleeving is a soft, flexible cable sleeving that’s perfect for bundling and protecting vulnerable components from the most extreme environmental conditions.


  • Item no.:

    MJ-KABS
  • Material:

    Kevlar Fiber
  • Working Temperature:

    -170℃ to 250℃
  • Melt Point:

    Not Melt
  • Standard Color:

    Yellow
  • Certification:

    ROHS
  • Cutting Tool:

    Aramid Shears
  • Size:

    3mm~50mm
  • Product Details

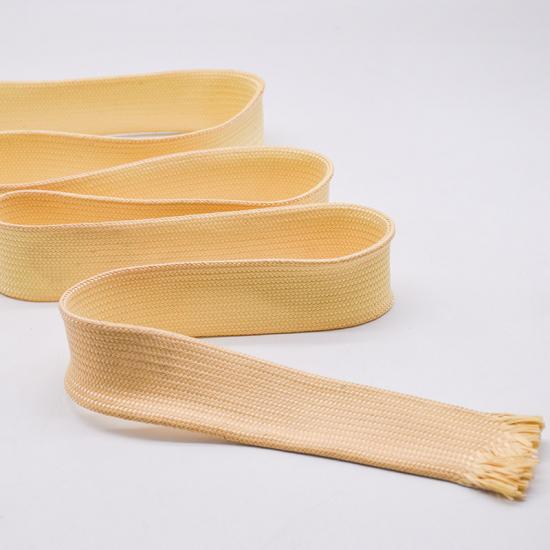

Kevlar Expandable Braided Cable Sleeve


Kevlar sleeving braided from kevlar fiber,which is 20 times stronger than the steel wire in same diameter.


Kevlar braided sleeving provides extreme strength and durability, yet is lightweight and easy to install, high cut, chemical and abrasion resistance , does not melt, burn or support combustion.


It ideal for extra heavy duty applications in the most extreme environmental conditions

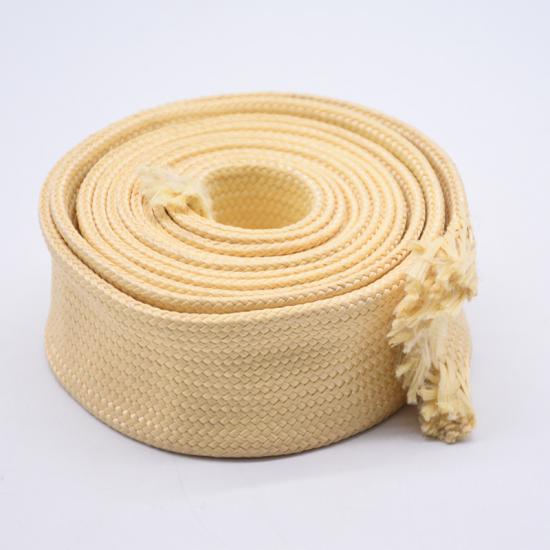

Kevlar braided sleeving


What's special about kevlar cable sleeve?

1.Cuts with kevlar shears

2.Will not melt, burn or support combustion

3.High cut resistance

4.Extra heavy duty

5.Stays soft and pliable

6.Excellent abrasion resistance.

7.Good chemical resistance.

8.Thermally stable.

9.Easy to install.


Physical Properties

Material Kevlar fiber
Working Temperature -170℃ to 250℃
Melt Point No Melt
Standard Color Yellow
Certification ROHS
Cutting Tool Aramid Shears


Specification

Part No

Nominal Size

(mm)

Expanded Range

(mm)

Packing Length

(m/spool)

Min(I) Max(O)
MJ-KABS003 3mm 1mm 4mm

500m/spool

MJ-KABS006
6mm 5mm 8mm 300m/spool
MJ-KABS008
8mm 6mm 10mm 250m/spool
MJ-KABS010
10mm 7mm 13mm 250m/spool
MJ-KABS012
12mm 8mm 16mm 200m/spool
MJ-KABS015
15mm 10mm 20mm

200m/spool

MJ-KABS020
20mm 14mm 26mm 150m/spool
MJ-KABS025
25mm 18mm 33mm 150m/spool
MJ-KABS030
30mm 20mm 39mm 100m/spool
MJ-KABS040
40mm 30mm 52mm 100m/spool
MJ-KABS050
50mm 40mm 65mm 100m/spool

Application

Kevlar protective sleeve offers outstanding abrasion resistance for cables and hoses in aerospace and other high-tech applications,especially uses for aerospace, marine, and automotive industry applications
