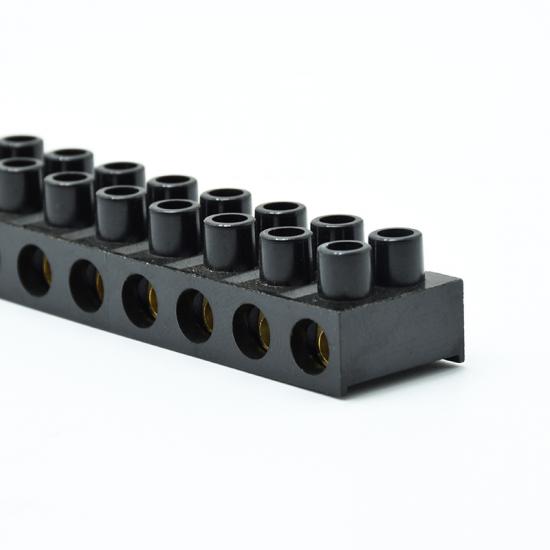

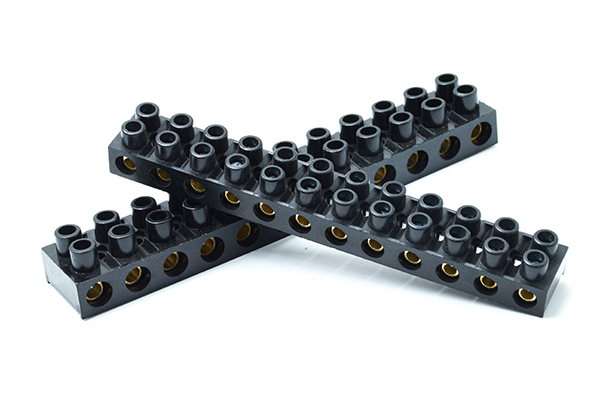

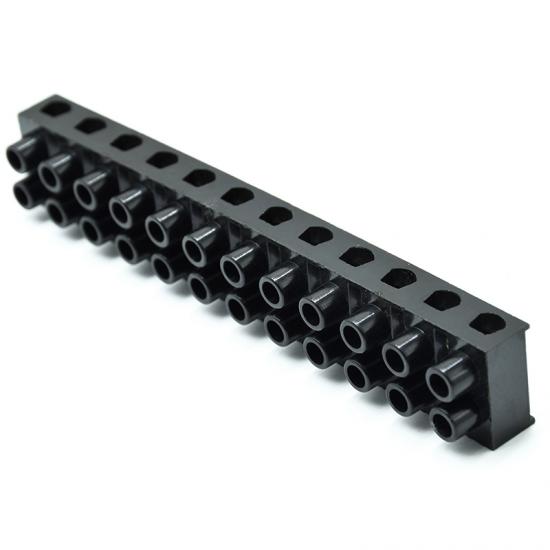

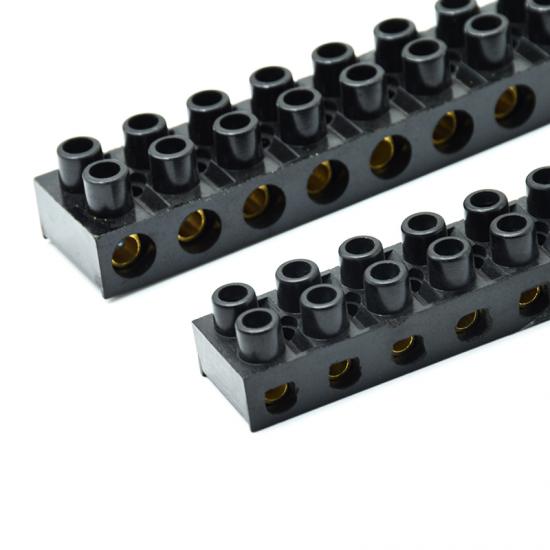

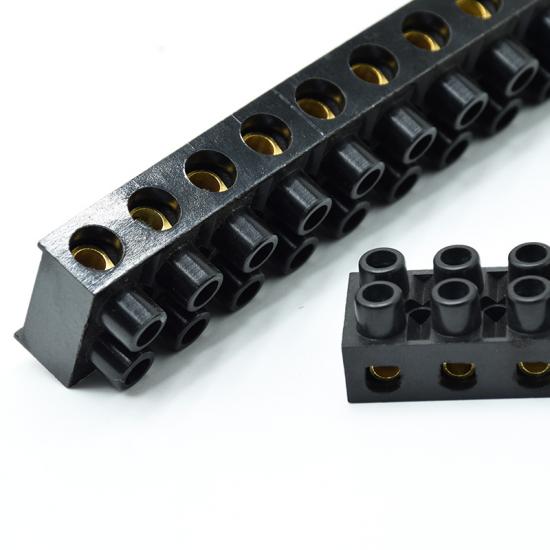

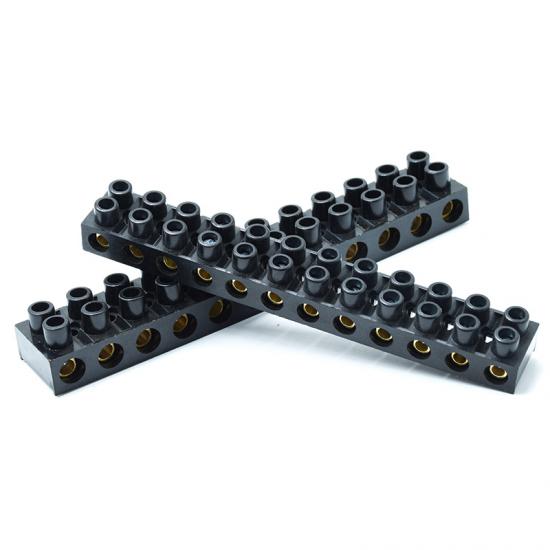

Control Panel Bakelite Connector Strip Terminal
12 Way Bakelite Strip made of Bakelite with Captive Screws with Deep Inserts for Easy Cable Entry, Non Flammable.
Physical properties
| Shell material | Bakelite |
| Conductor material | Brass |
| Screw material | Zinc plated steel |
| Working temperature |
-35℃~125℃ |
| Wire range | 4.0m㎡~16m㎡ |
| Amp | 5A~30A |
| Volt | 500V |
| Standard color | Black |
| Certification | ROHS,CE |
Specification
| Part No | Wire Range | Amp | Volt | L | W | H | E | F |
Φ |
Screw Size | Packing |
|
mm |
|||||||||||
| MJ-SP007-01 |
4.0m㎡ |
5A | 500V | 115.0 | 16.5 | 14.0 | 9.2 | 3.5 | 3.3 | M3.0 | 500 pcs/ctn |
|
MJ-SP007-02 |
6.0m㎡ |
10A | 500V | 126.0 | 20.5 | 16.3 | 10.5 | 3.5 | 4.2 | M3.0 |
400 pcs/ctn |
|
MJ-SP007-03 |
12.0m㎡ |
15A | 500V | 137.0 | 24.7 | 17.5 | 11.2 | 3.5 | 4.3 | M3.5 | 300 pcs/ctn |
| MJ-SP007-04 | 16.0m㎡ | 30A | 500V | 178.0 | 29.5 | 23.4 | 15.0 | 4.2 | 5.5 | M4.0 | 200 pcs/ctn |
Application
Control Panel Bakelite Connector Strip to be used for variety of lamp, decorated lighting, factory and power distribution cabinets, distribution boxes and other transmission equipment.
