PVC coated galvanized steel flexible conduit

the Pvc coated flexible conduit is made of galvanized steel strip after insulation treatment, and the surface of the product is coated with high-quality PVC. The other material inside is stainless steel.
  • Item no.:

    JSG-9780
  • Material:

    Galvanized Steel Strip +PVC
  • Working Temperature:

    -40℃~+85℃
  • Flammability:

    UL94-V0
  • Certification:

    RoHS
Product Details

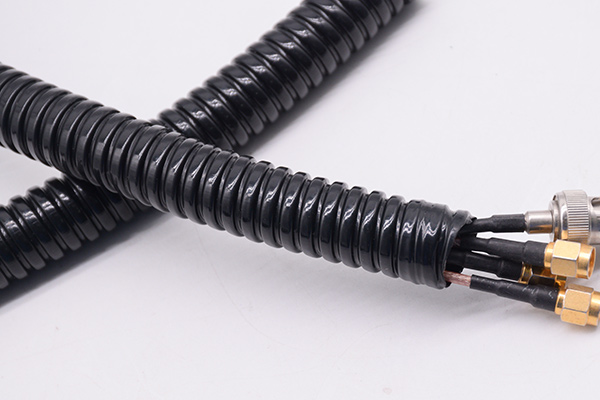

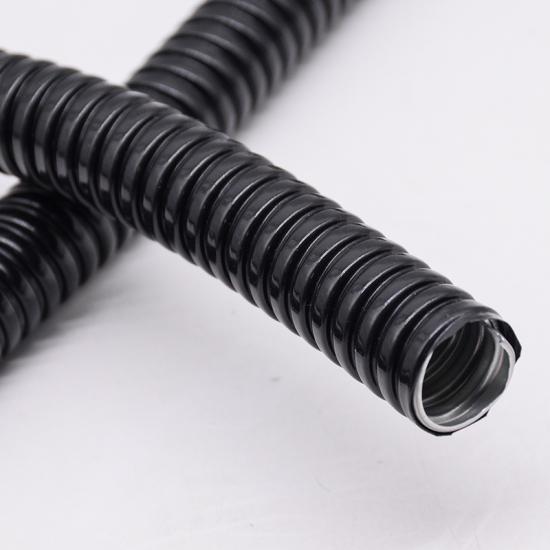

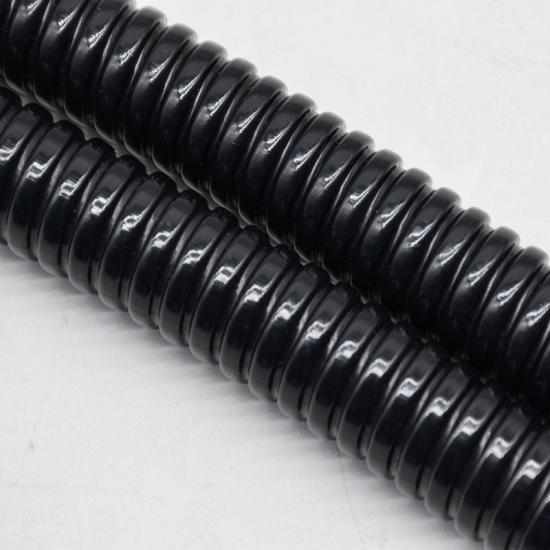

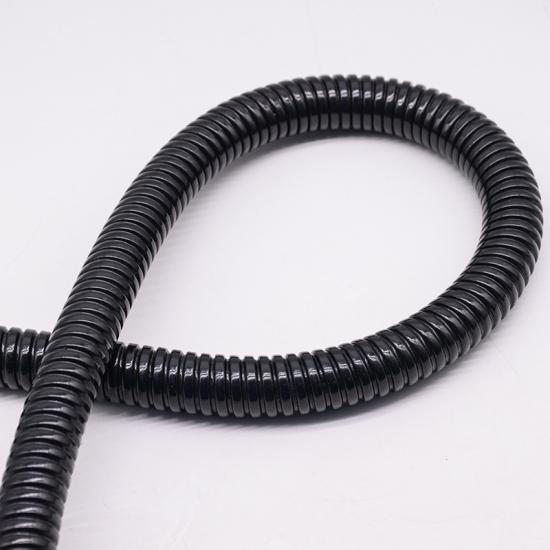

PVC coated galvanized steel flexible conduit

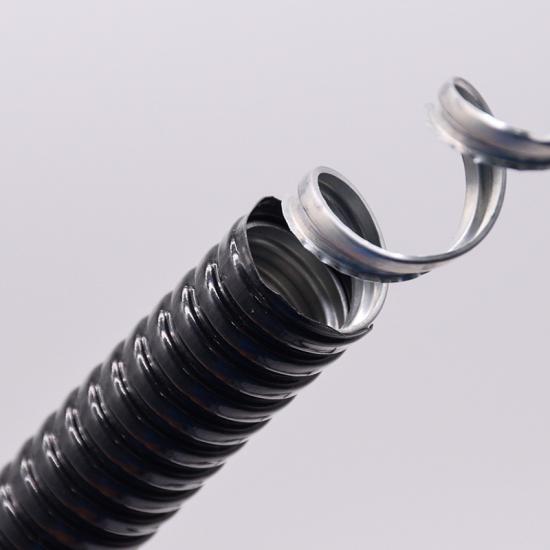

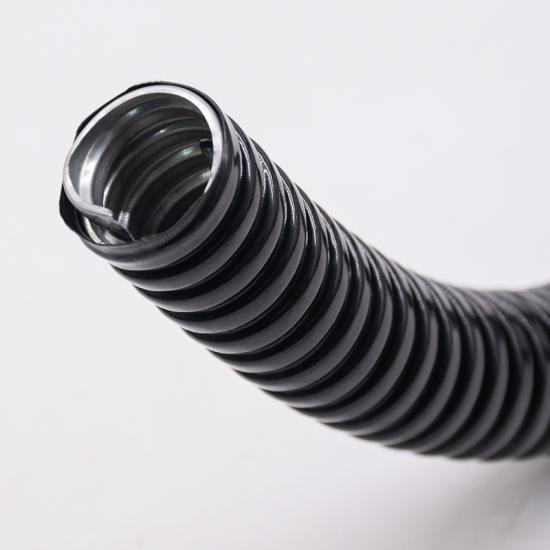

pvc coated flexible conduit  is made of galvanized steel strip after insulation treatment, and the surface of the product is coated with high-quality PVC. The other material inside is stainless steel.

What's special about pvc coated galvanized conduit?

1.With  single-buckle  type  structure  to  increase  the  tensile strength .

2.easy to break off and deform .

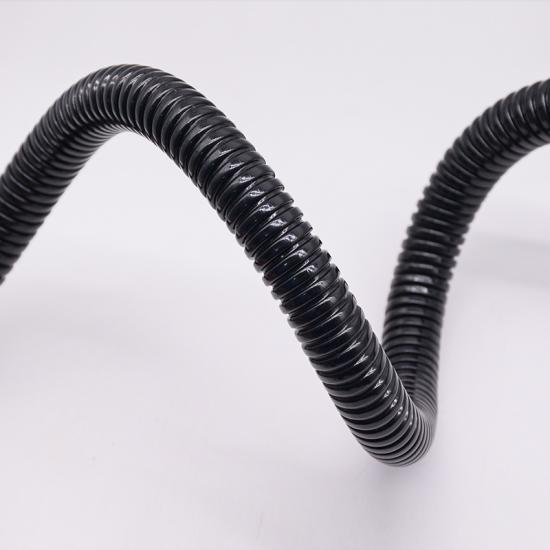

3.With good flexibility and smoothinternal structure, so the wire and cable are easy to pass through.

4.UV resistance

5.Impact resistance

6.Flame retardant


Specification

Item No. NOMINAL SIZE
Bending
Radius(R±10%)
mm
Packing
M
ID(mm) OD(mm)
MJ-PSFC-006 6 ±0.5 9.0 ±0.5 24  200
MJ-PSFC-008 8 ±0.5 11.8 ±0.5 25  100
MJ-PSFC-010 10 ±0.5 13.5±0.5 32  100
MJ-PSFC-013 12 ±1 16±1 33  100
MJ-PSFC-015 15±1 19.2 ±1 36  100
MJ-PSFC-016 16 ±1 20.2 ±1 40  100
MJ-PSFC-019 19 ±1 23±1 45  50
MJ-PSFC-020 20± 1 24± 1 47  50
MJ-PSFC-022 22± 1 26.5 ± 1 58  50
MJ-PSFC-025 25± 1 29.7 ± 1 61  50
MJ-PSFC-032 32 ± 1 37.6 ± 1 68  25
MJ-PSFC-038 38± 2 43.6 ± 2 81  25
MJ-PSFC-051 51± 2 58± 2 113  15
MJ-PSFC-064 64± 2 72.5± 2 145  15
MJ-PSFC-075 75± 3 82.5± 3 180  10
MJ-PSFC-080 80± 3 89.5± 3 220  10
MJ-PSFC-100 100± 3 108.5± 3 310  5


Application

pvc coated flexible metal conduit Widely used in wire and cable protection of railway, automotive,   mechanical engineering, ship building and electrical industries.
